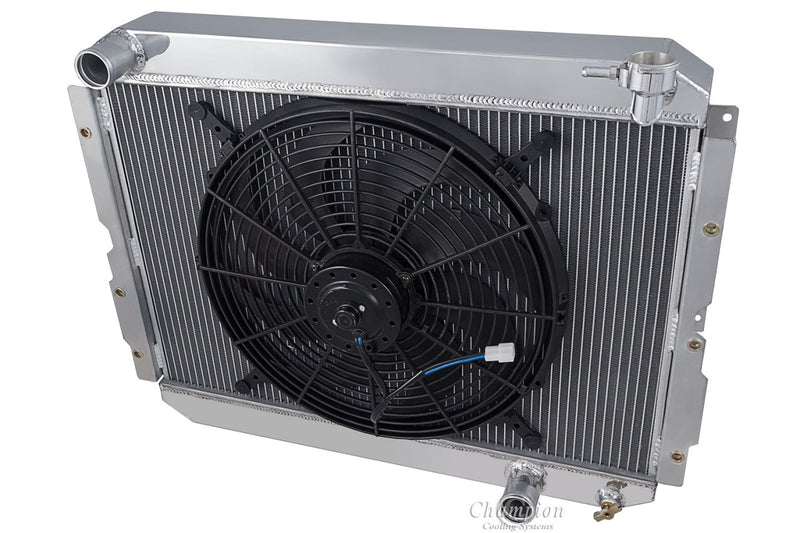

EC1213-1213FS16 2 Row Combo

All Aluminum Champion Radiator Plus

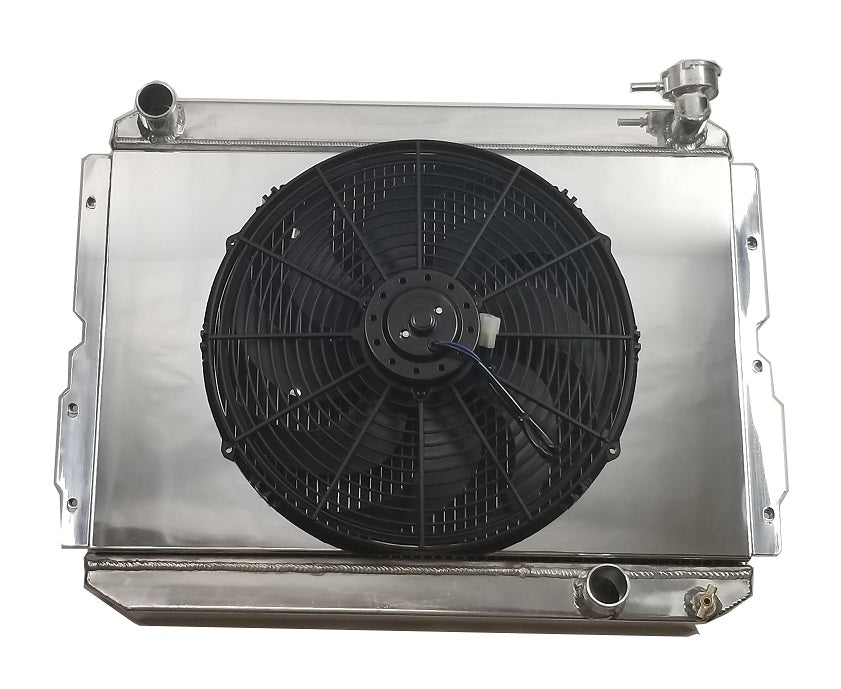

Ledfoot Racing Shroud and Pro-Series 16" Fan
2-Row Core | Cools up to 400hp

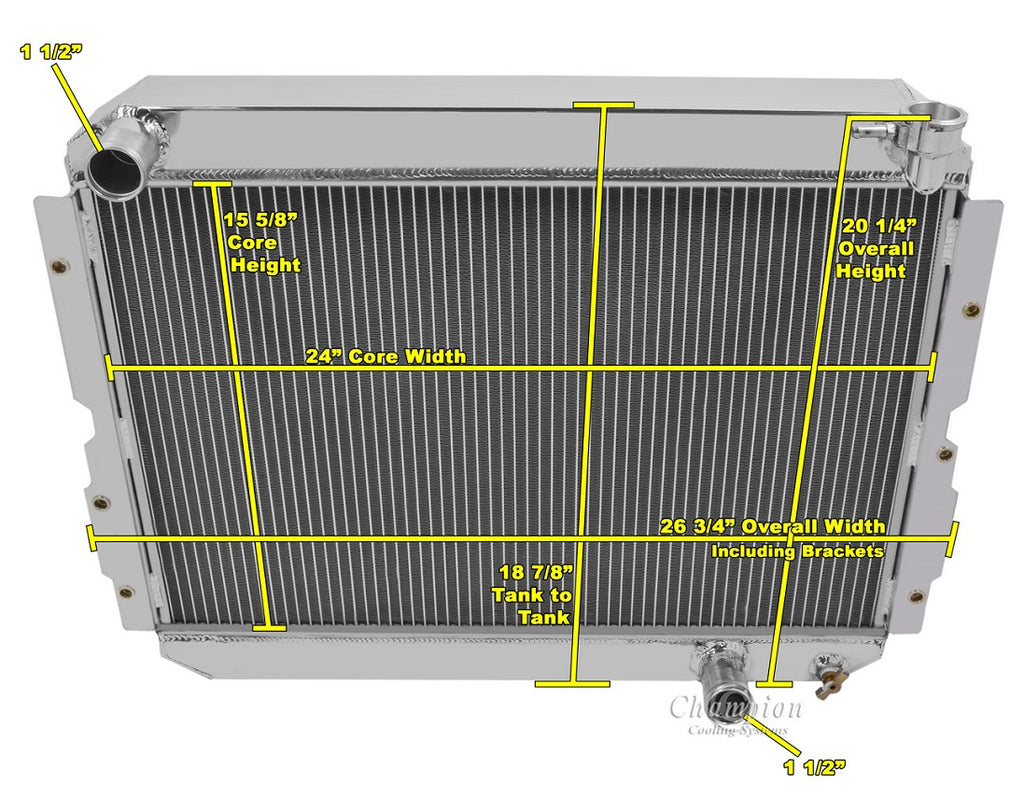

Radiator Dimensions:
Total: 21" tall x 26.25" wide (with brackets)
Core: 16.25" tall x 23.75" wide x 2" thick
Inlet: 1.5" driver side
Outlet: 1.5" passenger side
Tanks: 2.75" thick
Tubes: 0.75" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler NOT included
