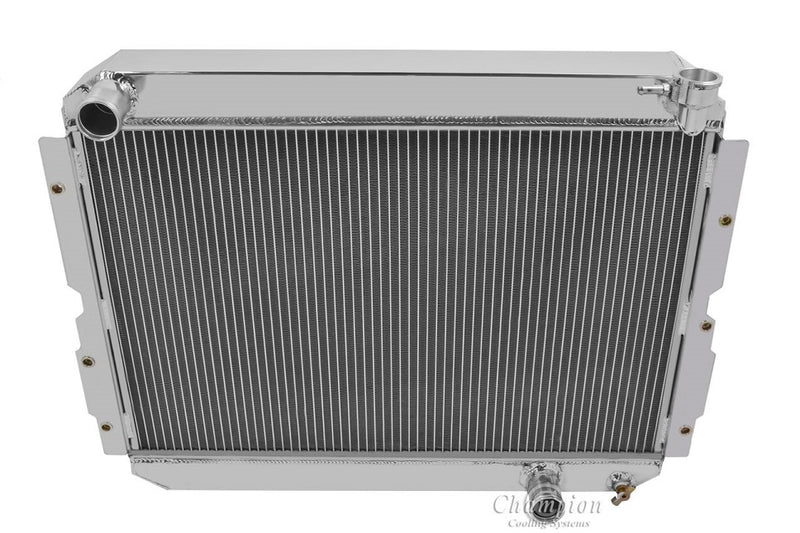

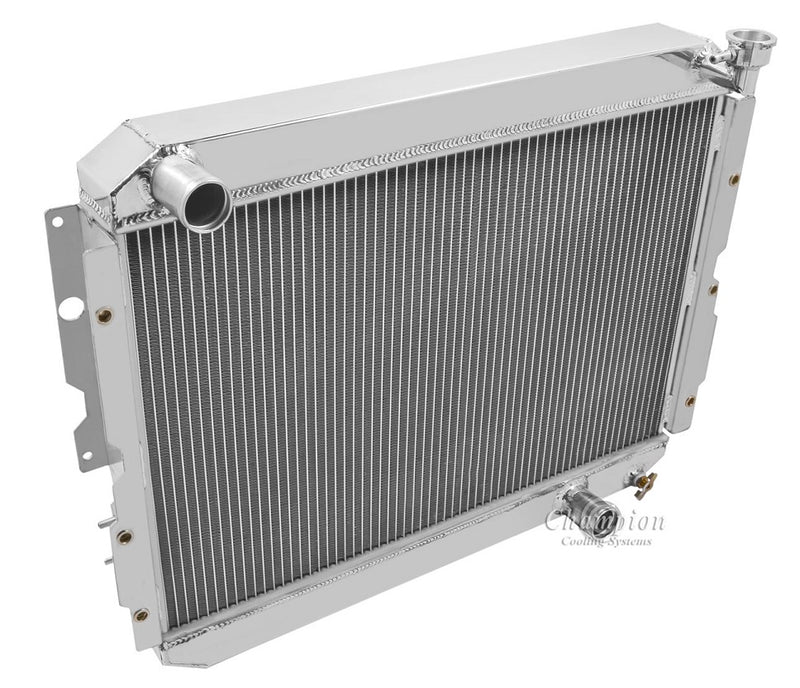

EC1213 2 Row

All Aluminum Champion Radiator
2-Row Core | Cools up to 400hp

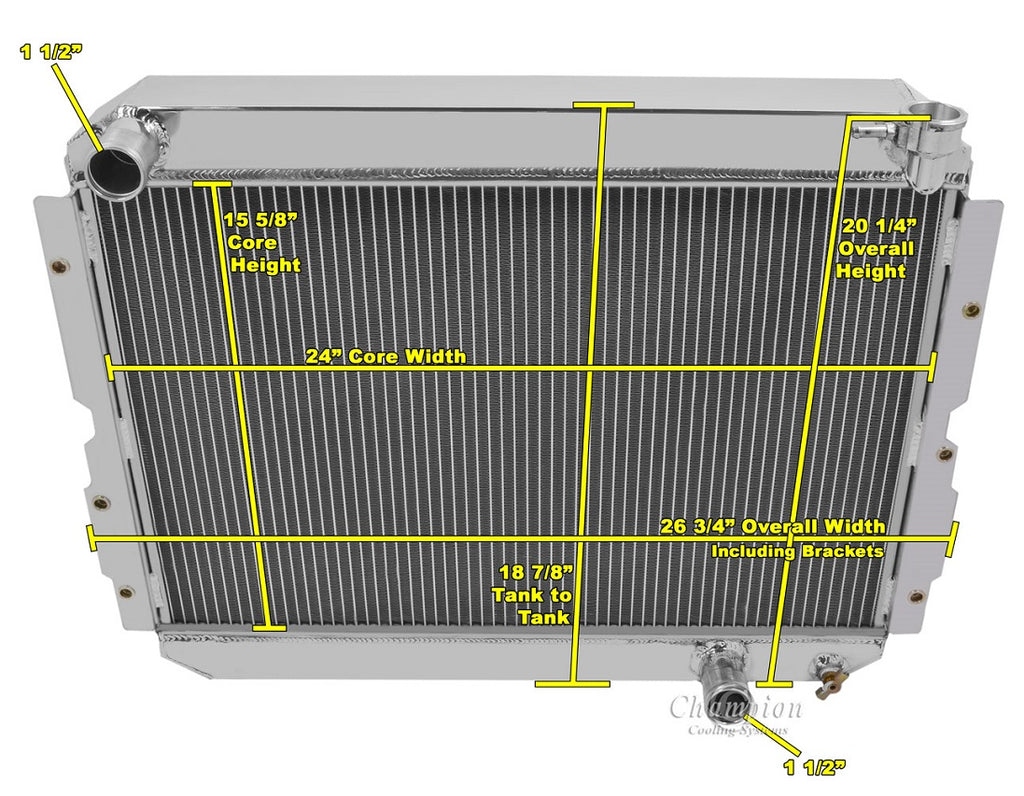

Radiator Dimensions:
Total: 21" tall x 26.25" wide (with brackets)
Core: 16.25" tall x 23.75" wide x 1.75" thick
Inlet: 1.5" driver side
Outlet: 1.5" passenger side
Tanks: 2.75" thick
Tubes: 0.63" thick

Bracket Mounted

13lb. Radiator Cap included
Transmission Cooler NOT included

Recommended electric cooling fans:
One 16" electric fan is recommended for this core size
