EC1193 2 Row

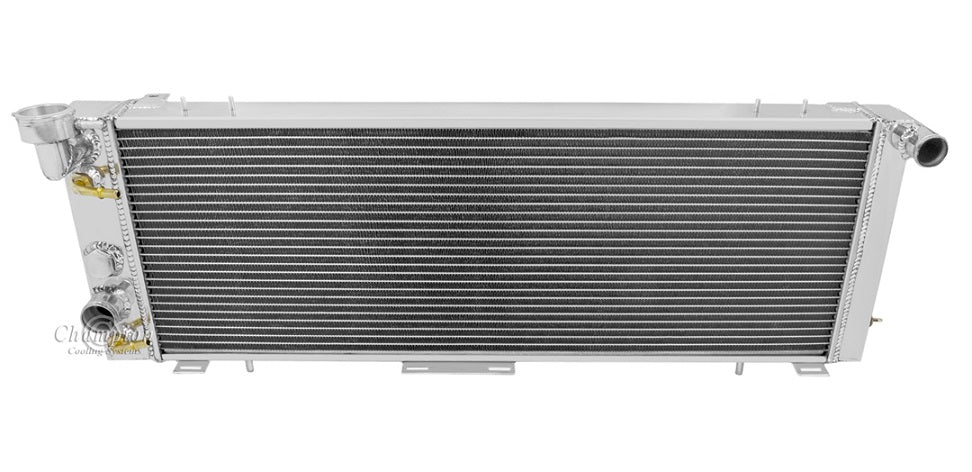

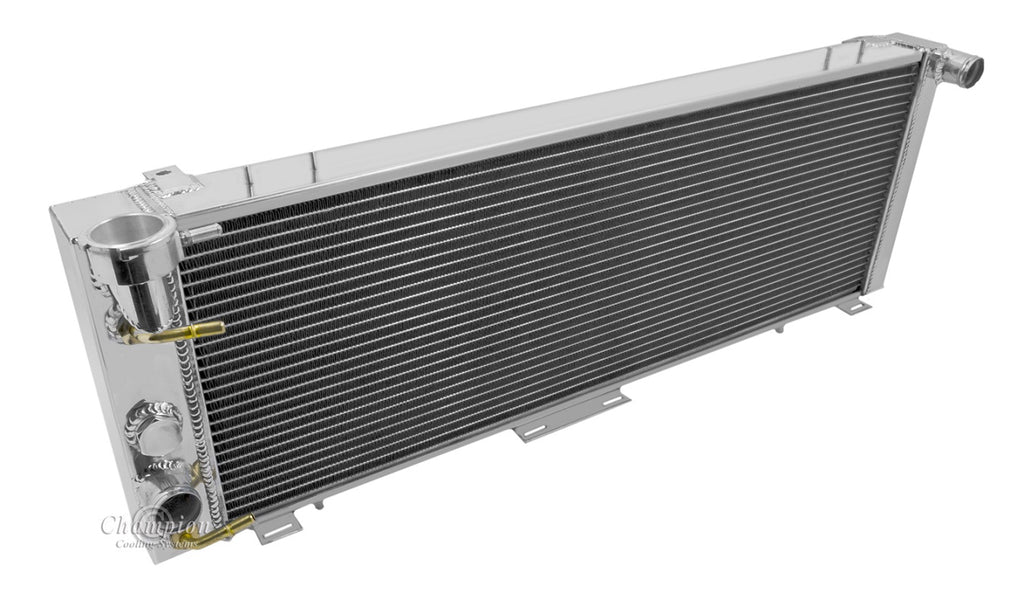

Champion All Aluminum Radiator
2-Row Core | Cools up to 400hp

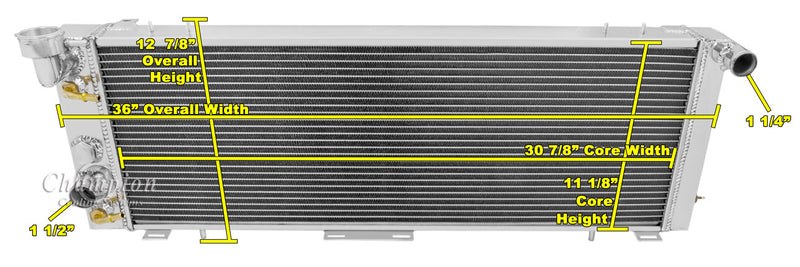

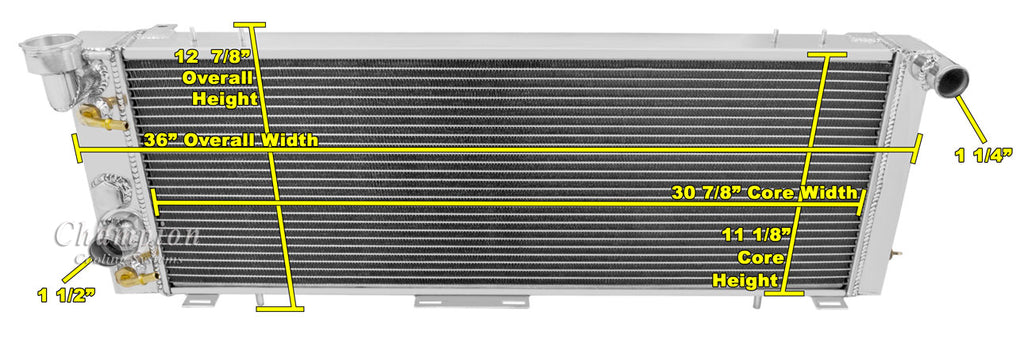

Radiator Dimensions:
Total: 36" wide x 13.5" tall (including cap) x 2.5" deep
Core: 31.25" wide x 11" tall x 1.75" thick
Inlet: 1.25" passenger side
Outlet: 1.5" driver side
Tanks: 2.5" thick
Tubes: 0.75" thick

Pin Mounted

13lb. Radiator Cap included
Transmission Cooler included (5/8-18 Straight Thread)

When using electric fans:
Two or three 10" Electric Cooling Fans recommended for this core size (sold separately)
