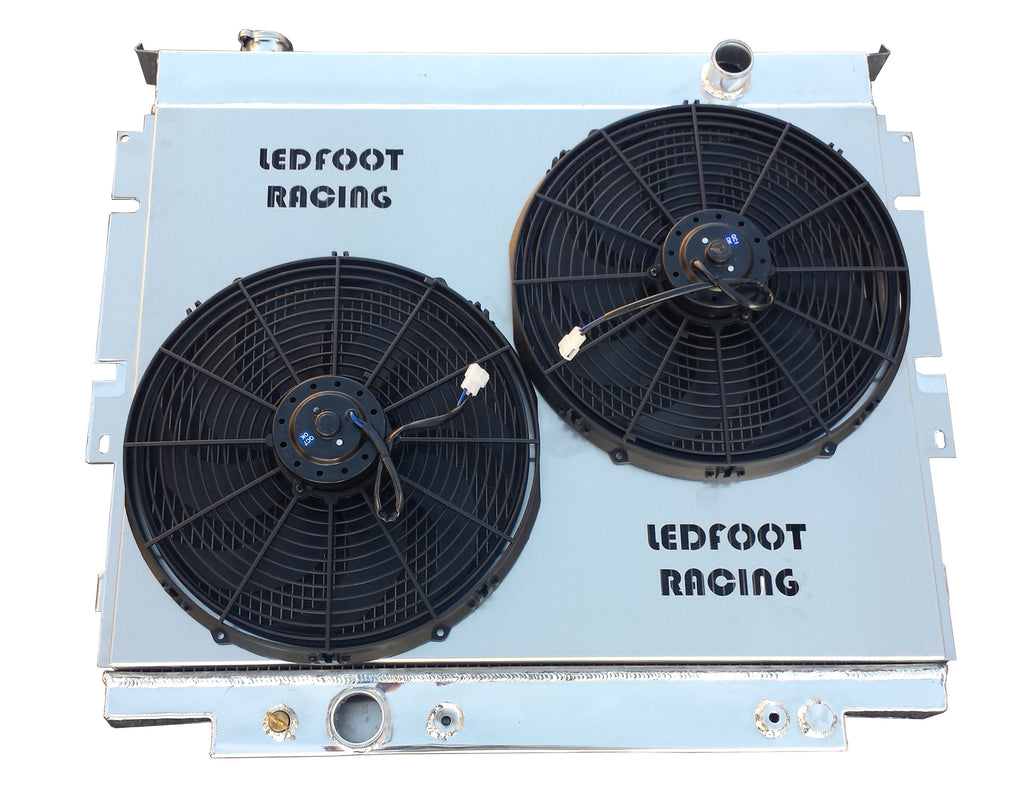

EC1165-1165FS16x2 2 Row Combo

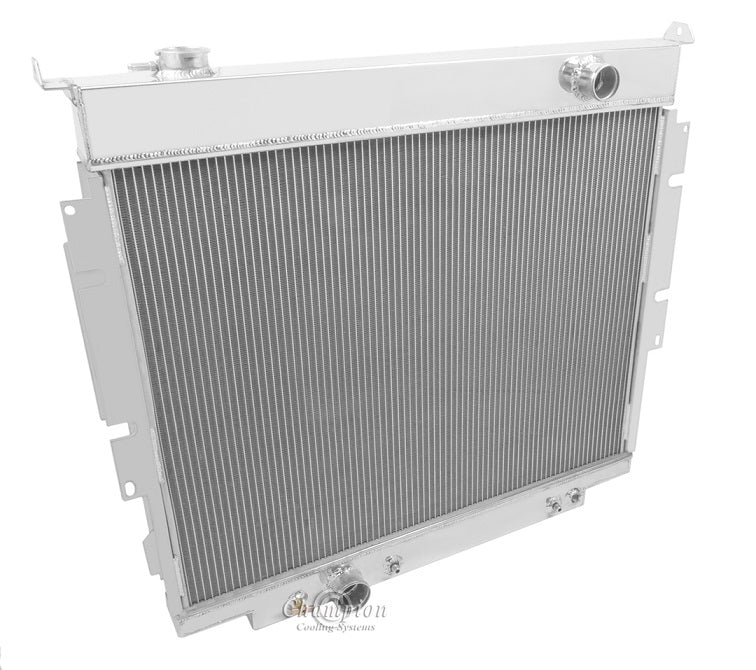

All Aluminum Champion Radiator Plus
Ledfoot Racing Shroud and (2) Pro-Series 16" Fans
2-Row Core | Cools up to 750hp
Diesel Only, Verify your dimentions there, was a wider version

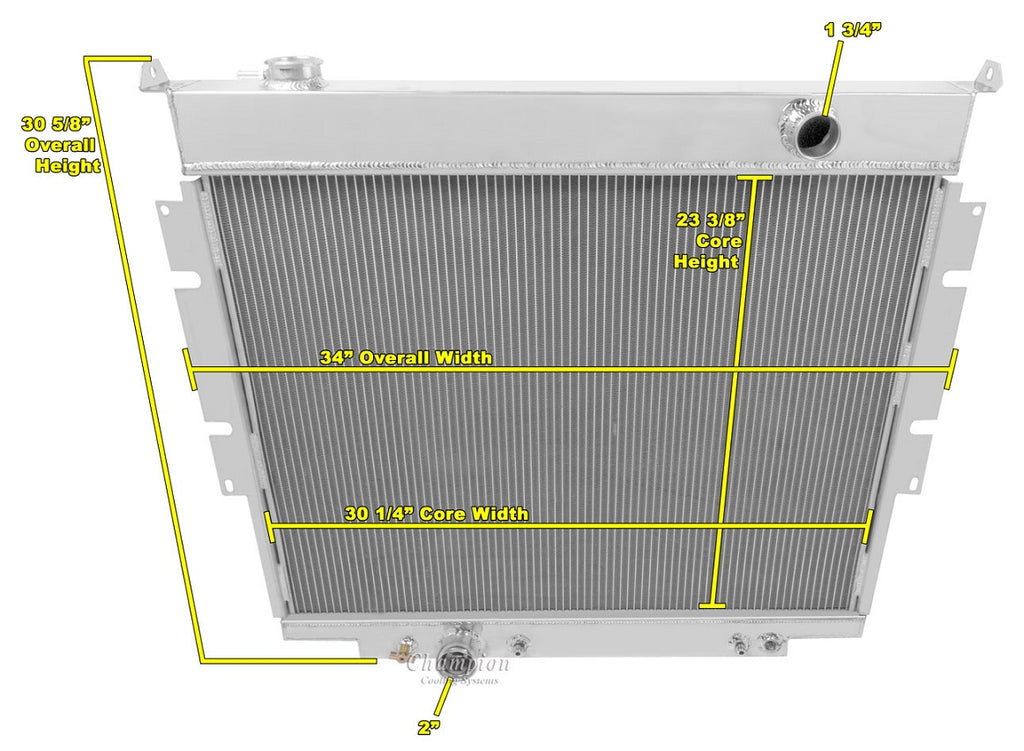

Radiator Dimensions:
Total: 30.88" tall (with cap) x 33.75" wide (including brackets)
Core: 20.25" tall x 30.25" wide x 1.75" thick
Inlet: 1.75" passenger side
Outlet: 2" driver side
Tanks: 3.00" thick
Tubes: 0.75" thick
Total Thickness: 7" (5.5" between fan motors)

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/8-27 npt)

Shipping is higher for this oversized item
