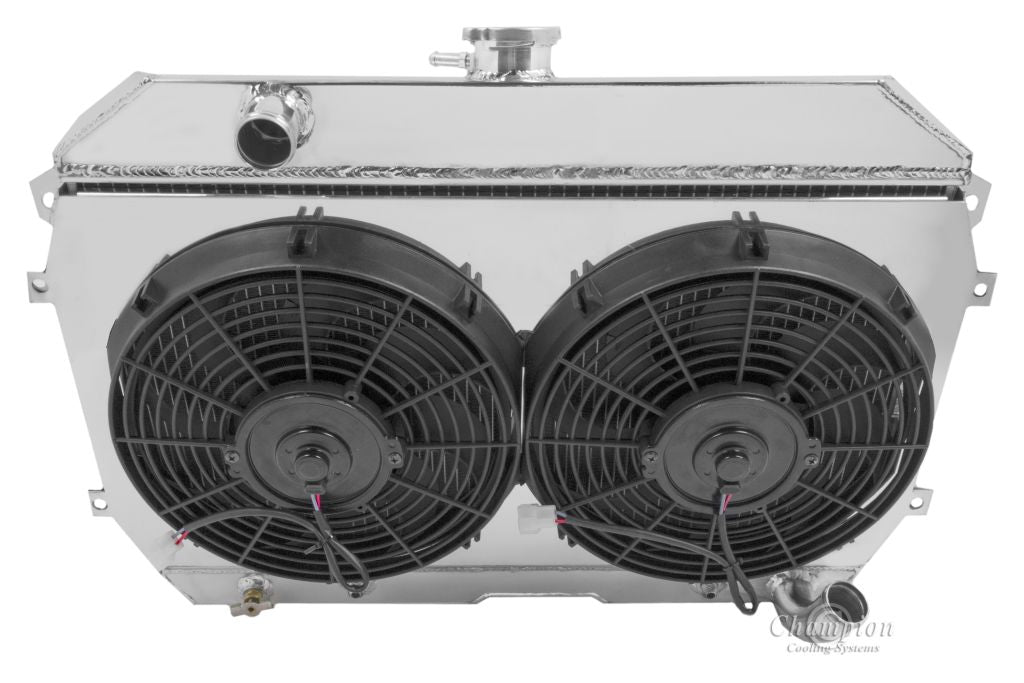

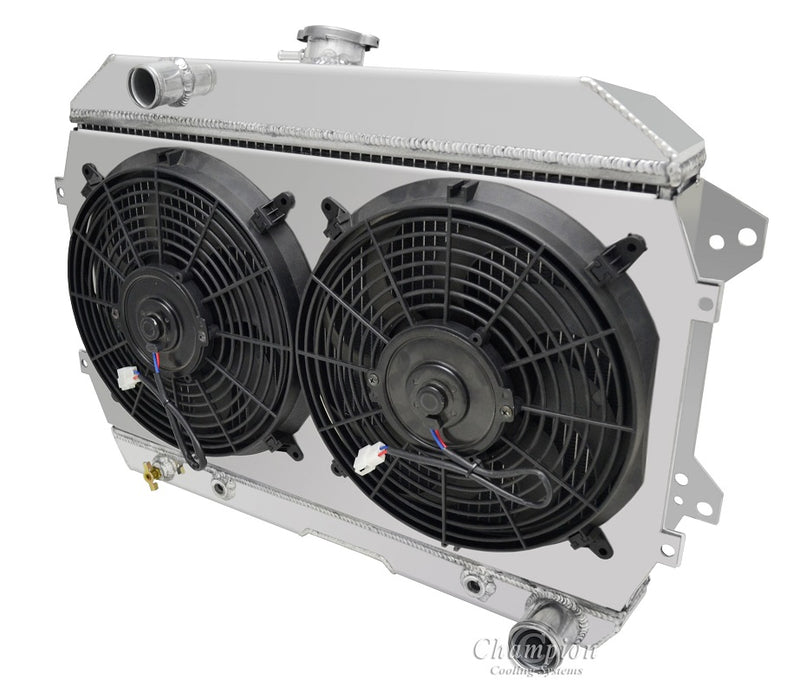

EC110-110FS11SP 2 Row

Champion All Aluminum Radiator
Plus Ledfoot Racing Shroud and 2-11" SPAL Medium Profile fans
2-Row Core | 400hp Rating

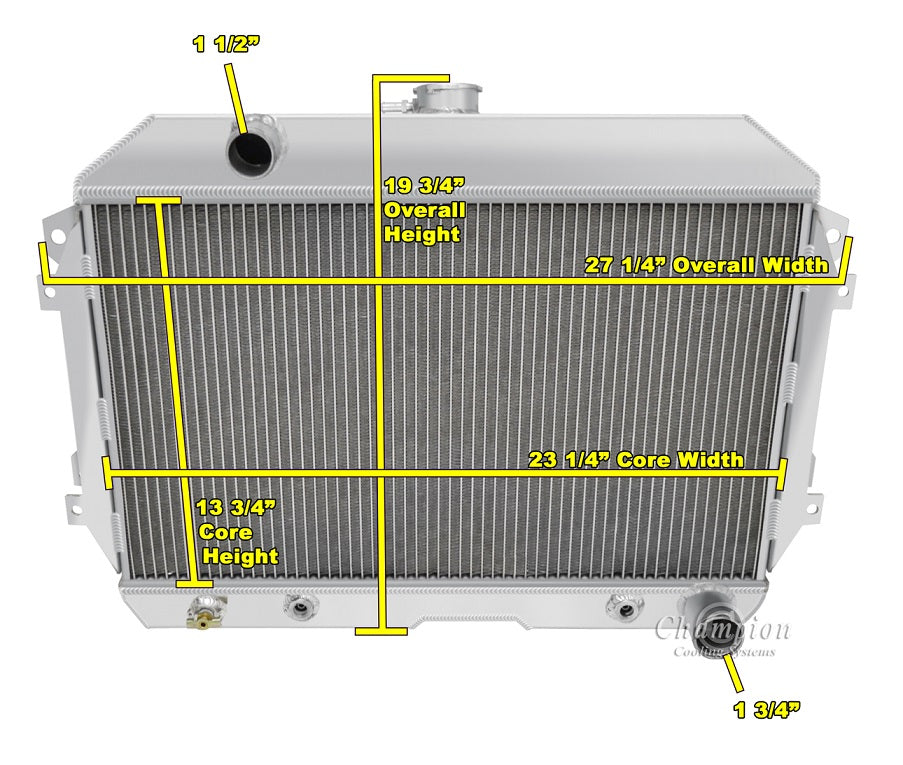

Radiator Dimensions:
Total: 18.5" tall (19.75" with cap) x 27.5" (with brackets)
Core: 13.75" tall x 23" wide x 1.75" thick
Inlet: 1.25" driver's side
Oulet: 1.25" passenger side
Tanks: 2.75" thick
Tubes: 0.75" thick
Total Thickness: 6.5 to back of fans, 5.75" at center
Fan Thickness: 2.44

Bracket Mounted
13lb. Radiator Cap included
(metric 14-1.5)
