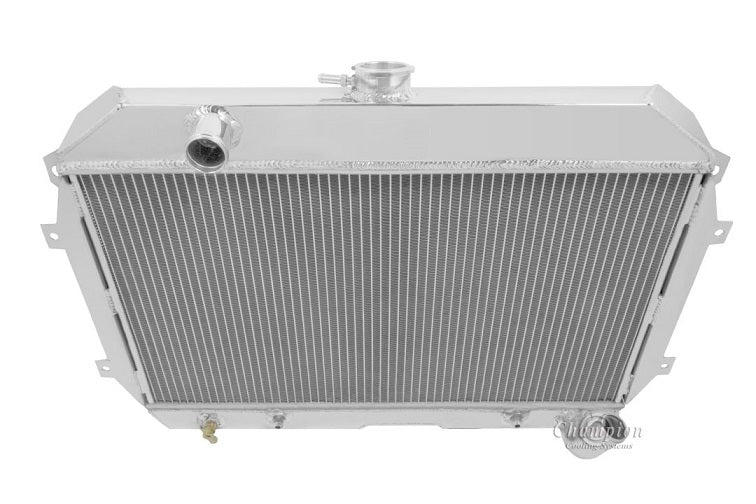

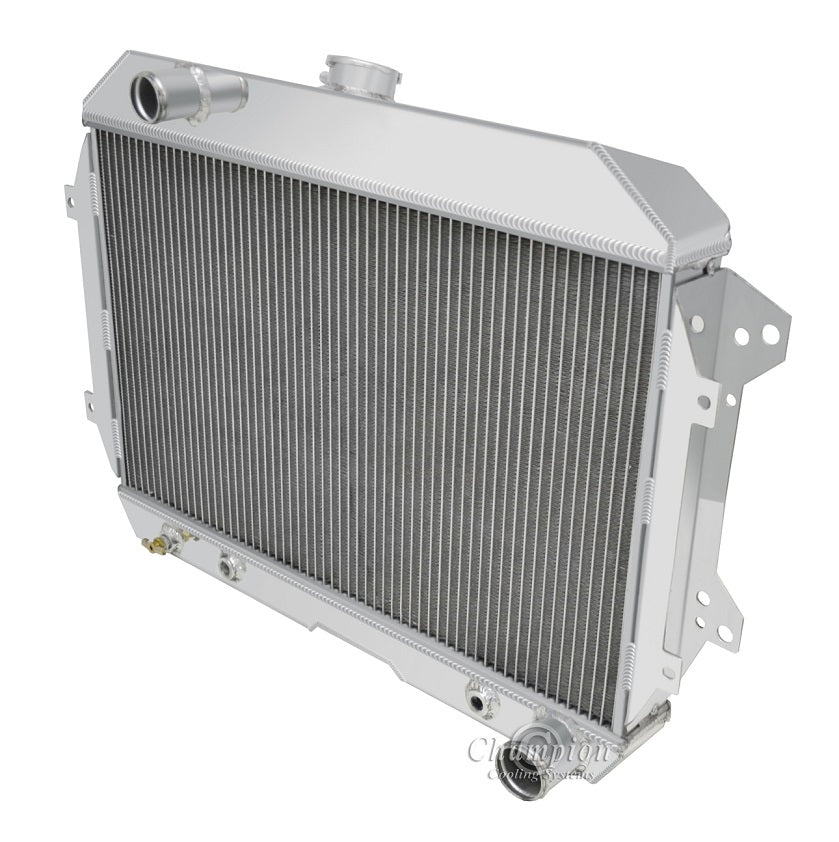

EC110 2 Row

Champion All Aluminum Radiator
2-Row Core

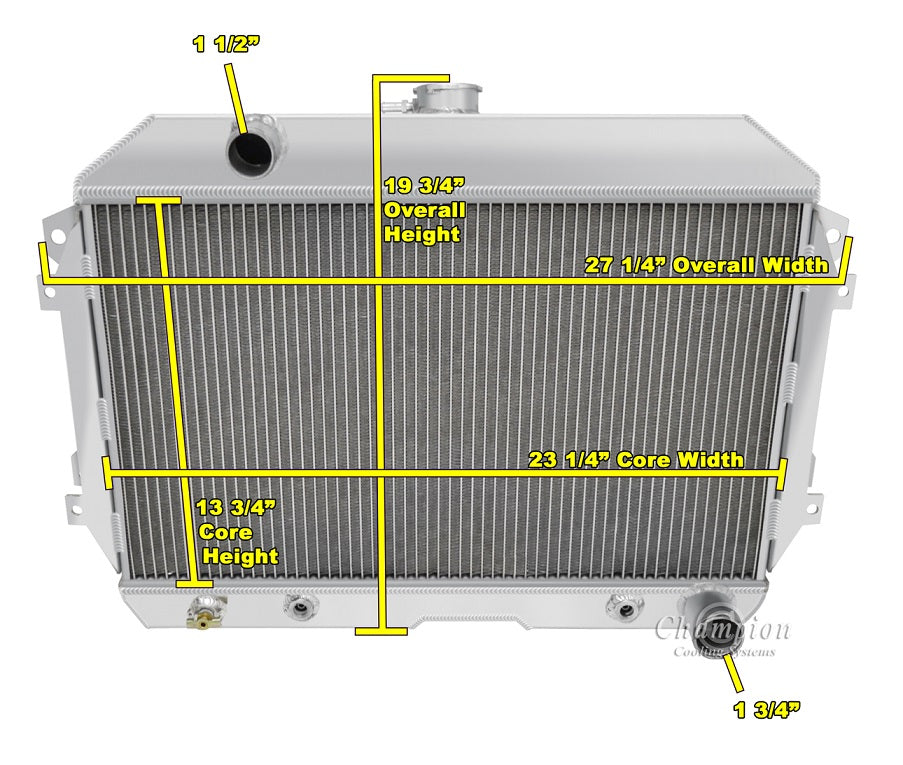

Radiator Dimensions:
Total: 18.5" tall (19.75" with cap) x 27.5" (including brackets)
Core: 13.75" tall x 23" wide x 1.75" thick
Inlet: 1.25" driver's side
Oulet: 1.25" passenger side
Tanks: 2.75" thick
Tubes: 0.75" thick

Bracket Mounted

13lb. Radiator Cap included
Transmission Cooler Included (metric 14-1.5)
Aluminum Shroud is also available (sold separately)

When using electric fans (sold separately) :
Two 12" Electric Cooling Fans recommended for this core size
