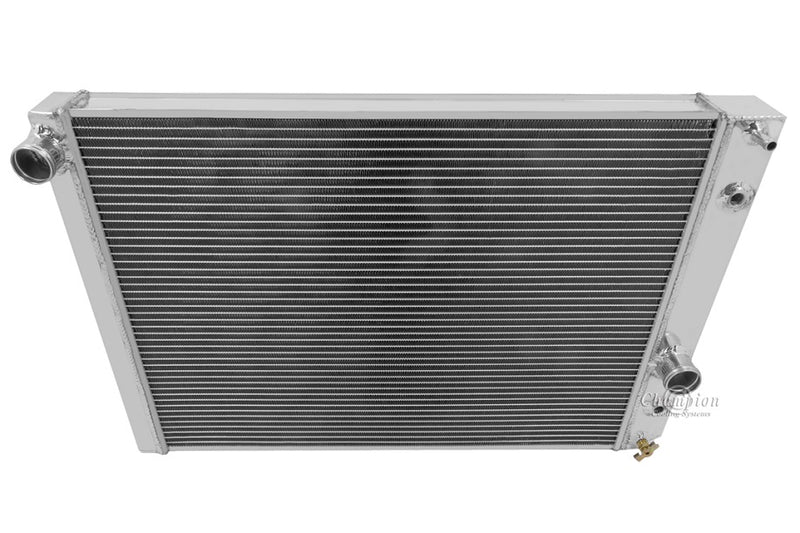

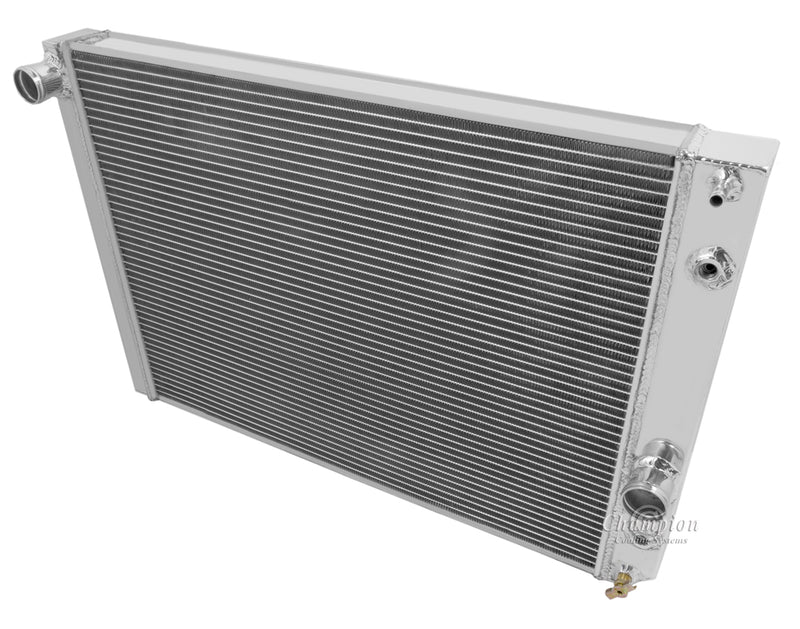

EC1052 2 Row

Champion All Aluminum Radiator
2-Row Core | Cools up to 400hp

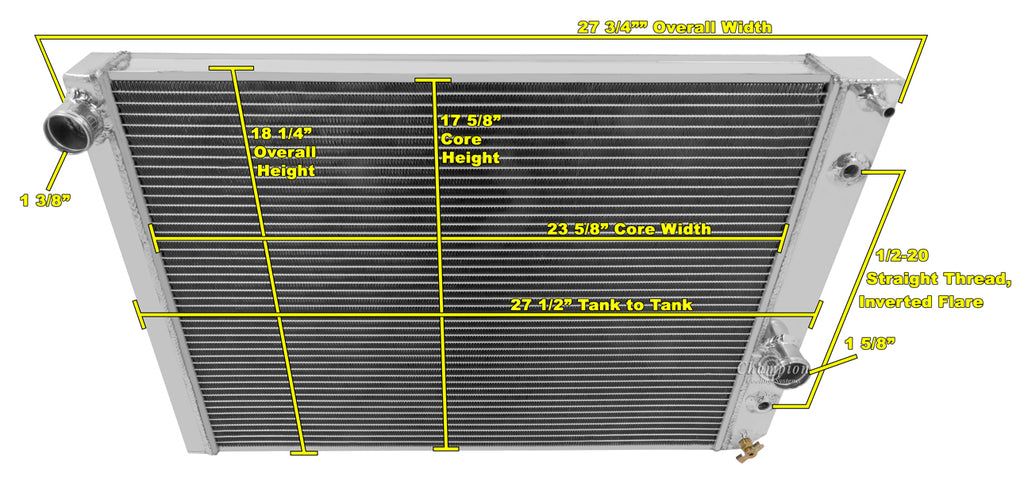

Radiator Dimensions:
Total: 18.13" tall x 27.5" wide
Core: 18" tall x 24" wide x 1.75" thick
Inlet: 1.38" driver side
Outlet: 1.63" passenger side
Tank: 2.5" thick
Tubes: 0.75" thick

Saddle Mounted


Transmission Cooler included (1/2-20 Straight Thread, Inverted Flare)
note: no fill neck (part: CC829 for a fill neck)

When using electric fans:
One 16" or two 12" Electric fans recommended for this core size (sold separately)
