EC1005

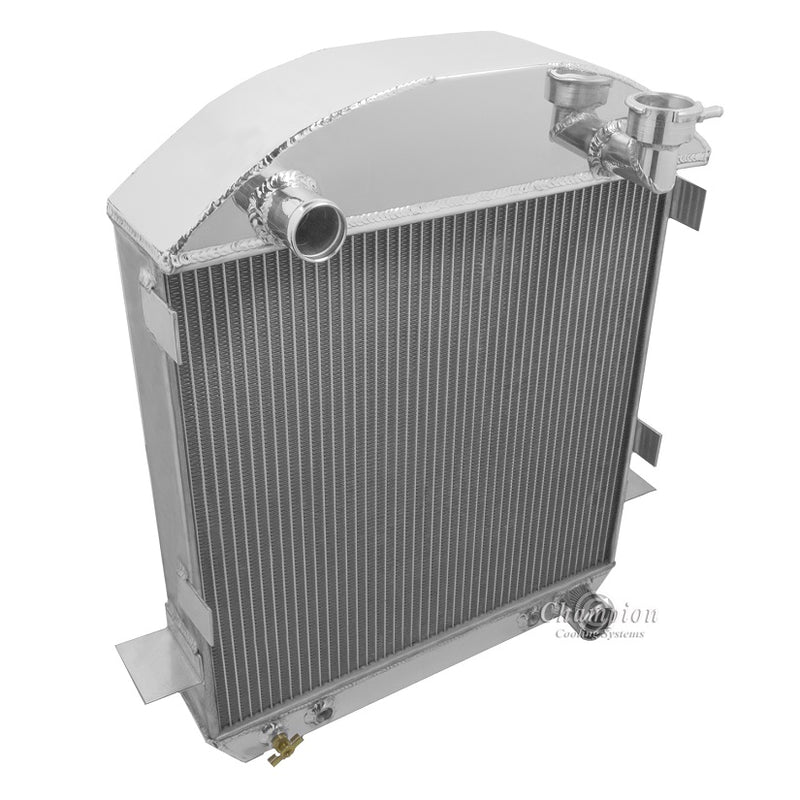

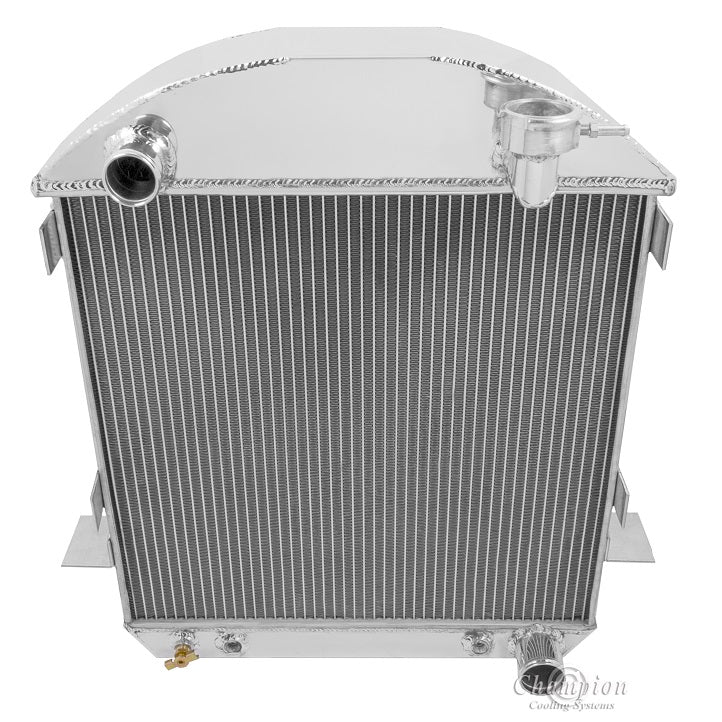

All Aluminum Champion Radiator
2-Row Core; For Chevy Engines | Cools up to 450hp

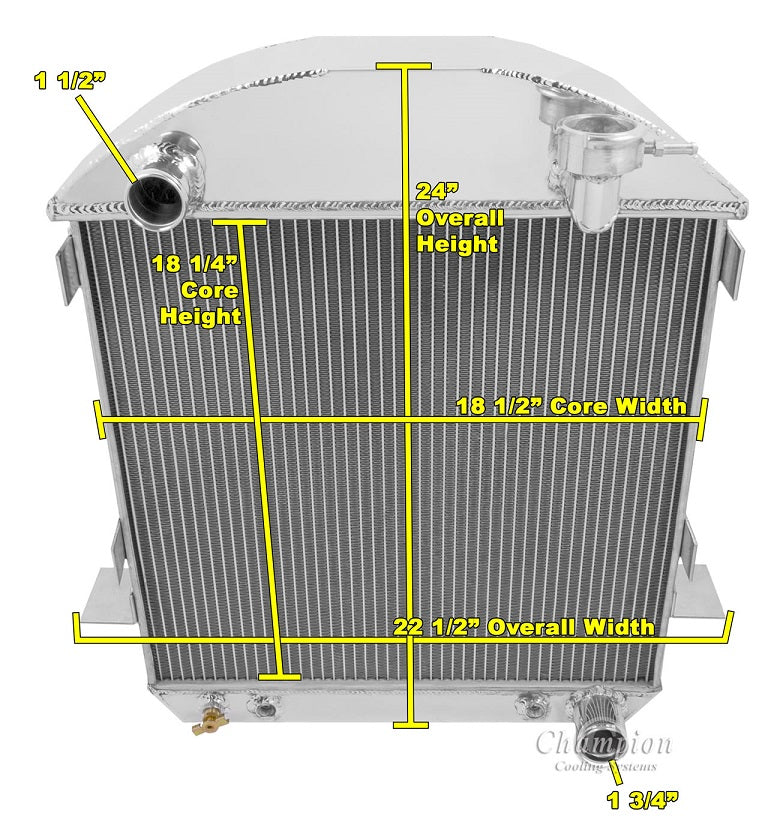

Radiator Dimensions:
Total: 23.75" tall x 22.5" wide
Core: 18" tall x 18.5" wide x 1.75" thick
Inlet: 1.5" driver's side
Outlet: 1.75" passenger side
Tanks: 4.25" (top) 3" (bottom)
Tubes: 0.75" thick

Direct-Fit Replacement
(Chevy / Mopar inlet and outlet set up)

13lb. Radiator Cap included
Transmission Cooler Included (1/2-20 Straight Thread, Inverted Flare)

Recommended Fans:
One 16" fan recommended for this core size (sold separately)
