Our Waterproof dual electric fan relay kit with thermostat turns your fans on when the temperature of the engine reaches 185° and off at 165°. Works for single fan as well.
A Second relay kit is recommended for SPAL High Performance Dual Fans due to the higher AMP draw
(2) Deluxe Dual Fans Relay Kits Available here or select Qty: 2

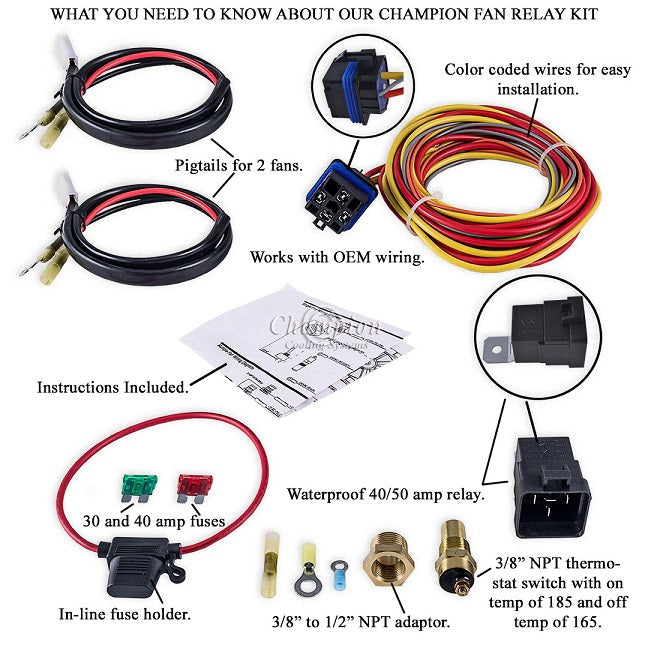

Includes:
- Wiring Harness
- Waterproof Relay
- Sensor Switch 3/8" NPT
- Inline fuse holder with 30amp and 40 amp fuses
- Brass adapter to fit larger ports (not shown, only available upon request)
- Installation instructions
- Two Pigtails
NOTE: Make sure your engine has an available port on your intake manifold or heads. You can also get water necks with a 3/8" NPT bung. Doesn't work with LS engines unless you just need the harness and relay, no spot for the sensor. Many 6 cylinder engines do not have extra ports, in this case you will need the type of kit that has a probe to go into the core of the radiator.
