CR2171-2 Fits: 6.8L V10, 6.8L V10, 7.3L V8

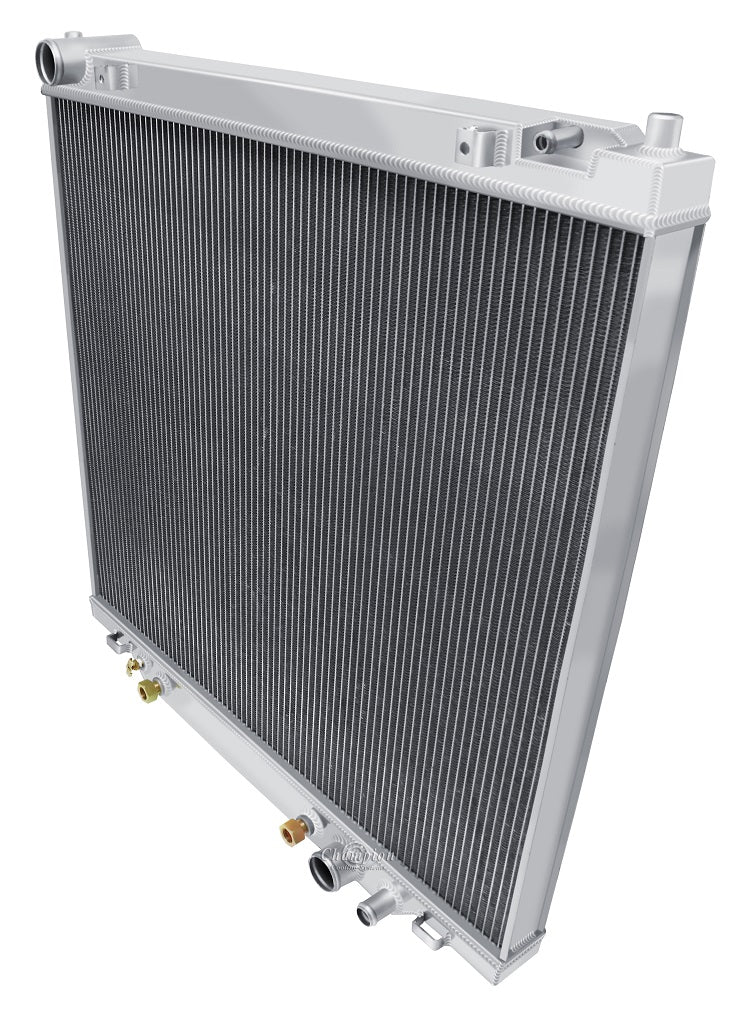

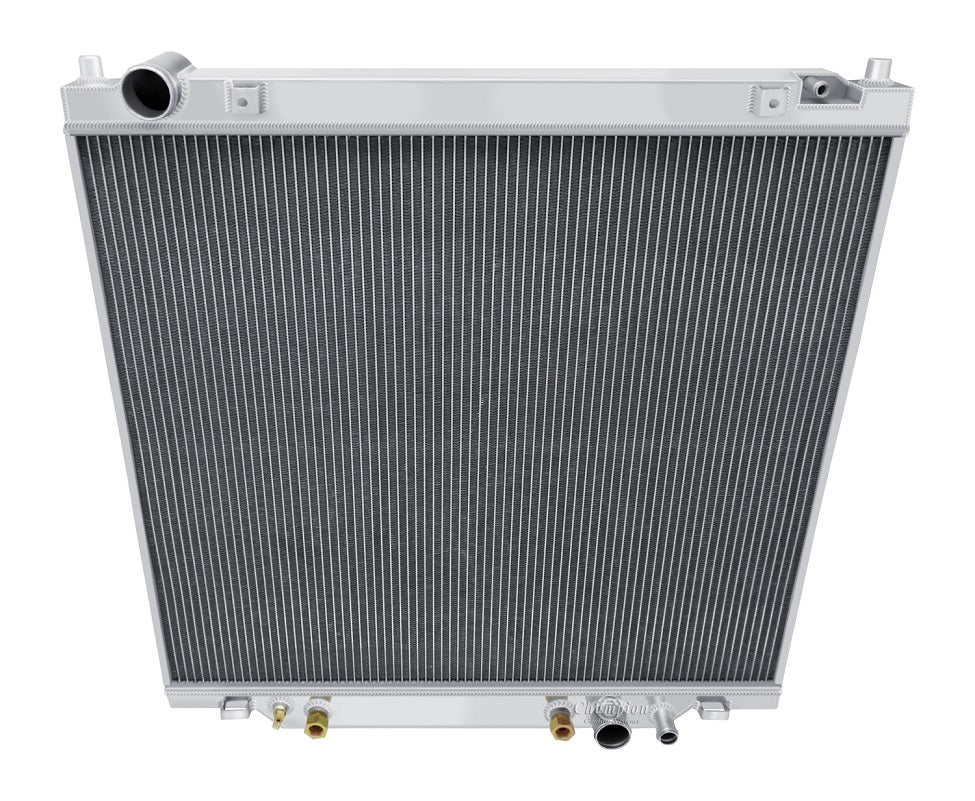

Champion All Aluminum Radiator
2-Row Core | Cools up to 650hp

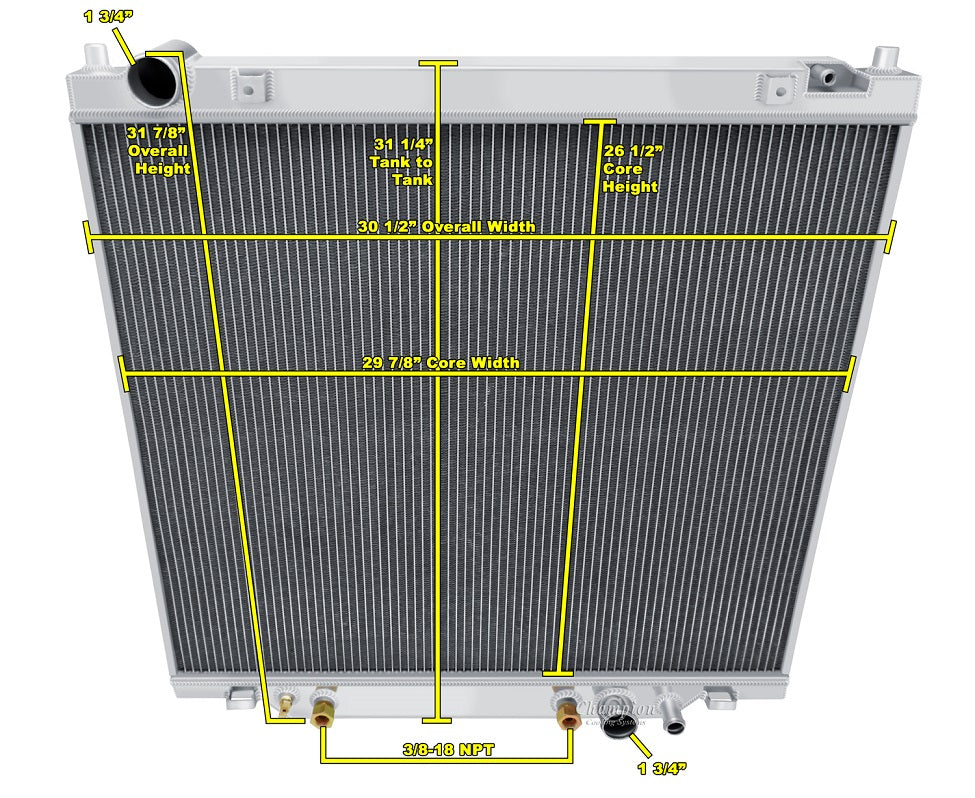

Radiator Dimensions:
Total: 31.87" tall x 30.5" wide
Core: 26 1/2 tall X 29 7/8 wide x 1.63" thick
Inlet: 1.75" driver side
Outlet: 1.75" passenger side
Tanks: 2.5" thick
Tubes: 0.75" thick

OEM Mounting

Transmission Cooler included: 3/8"-18 NPT with adapters
