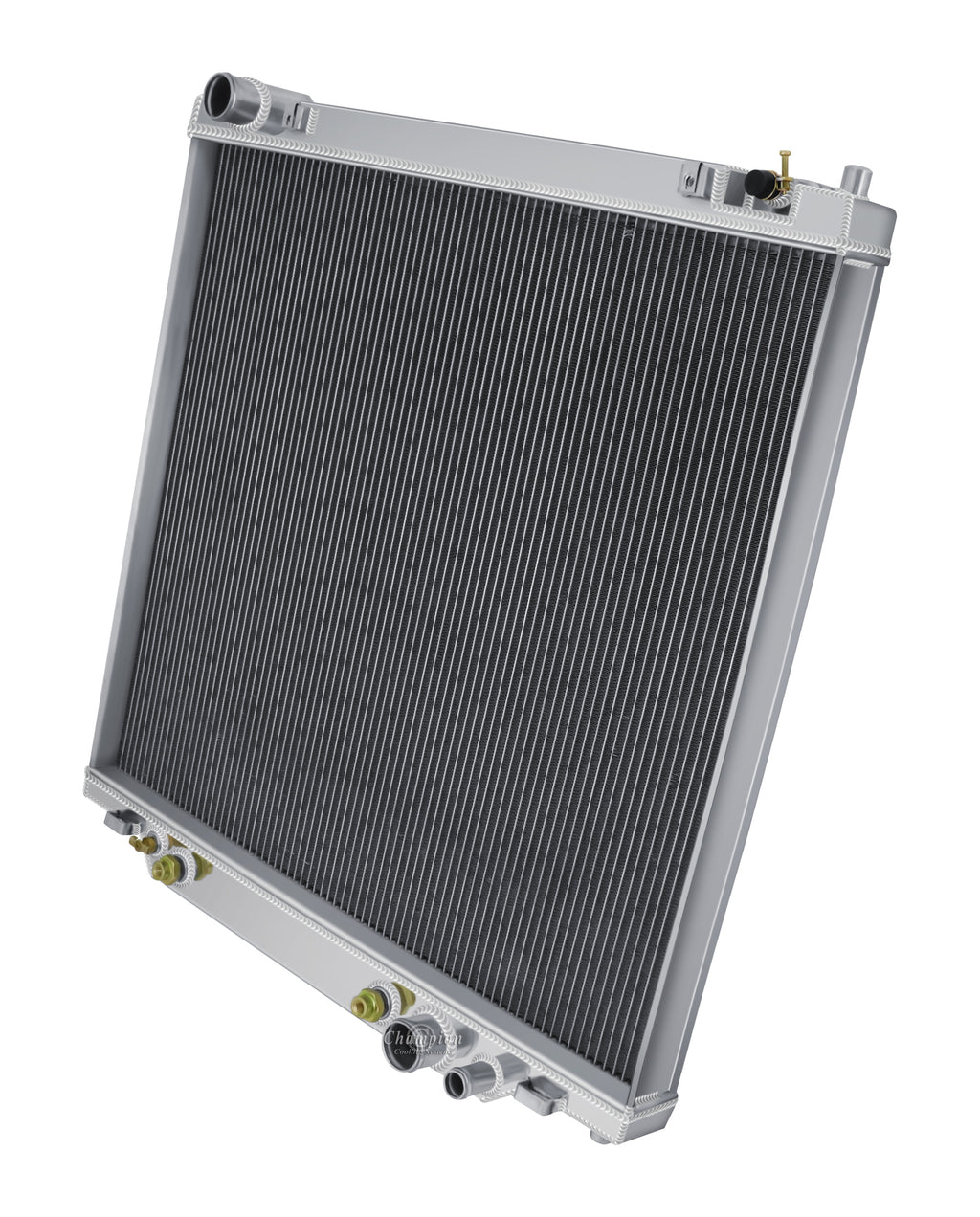

CR2170-1 Fits: 5.4L 330ci V8

Champion All Aluminum Radiator
1-Row Core | Cools up to 450hp

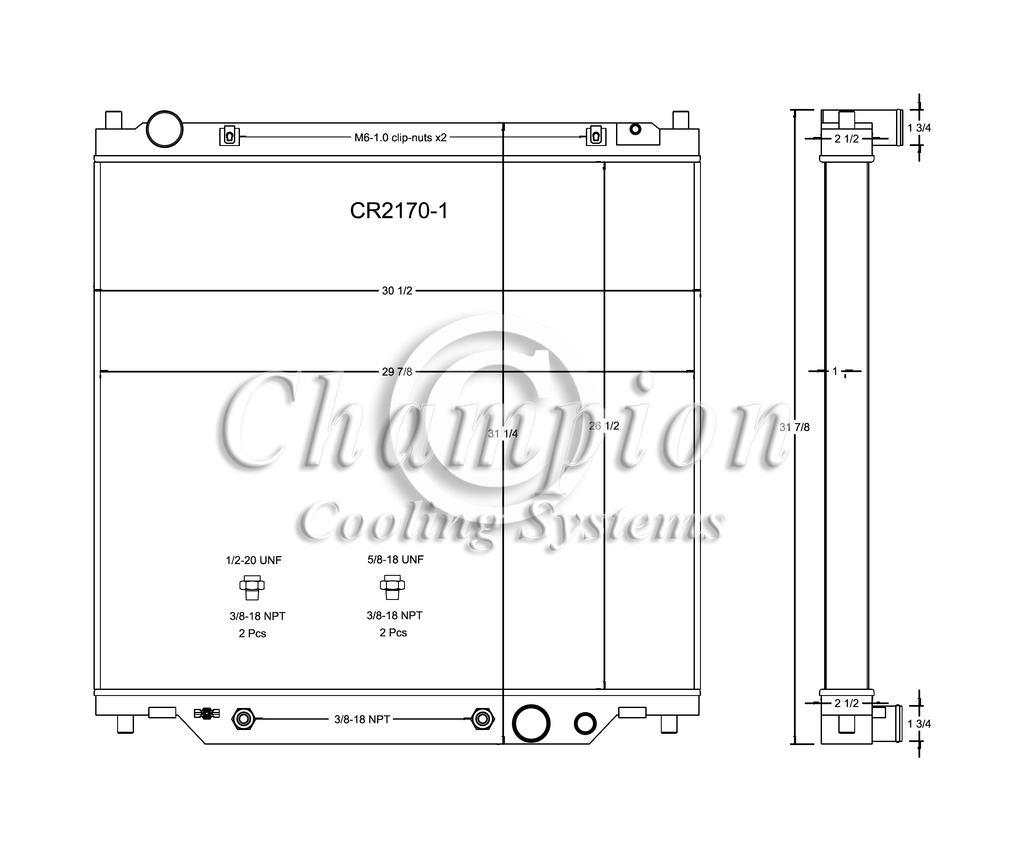

Radiator Dimensions:
Total: 30.87" tall x 30.5" wide
Core: 26 1/2 Tall X 29 7/8 Wide x 1" thick
Inlet: 1.75" driver side
Outlet: 1.75" passenger side
Tanks: 2.5" thick
Tubes: 1" thick

OEM Mounting

Transmission Cooler included: 3/8"-18 NPT with 2 sets of adapters
