CR13022-4 4 Row

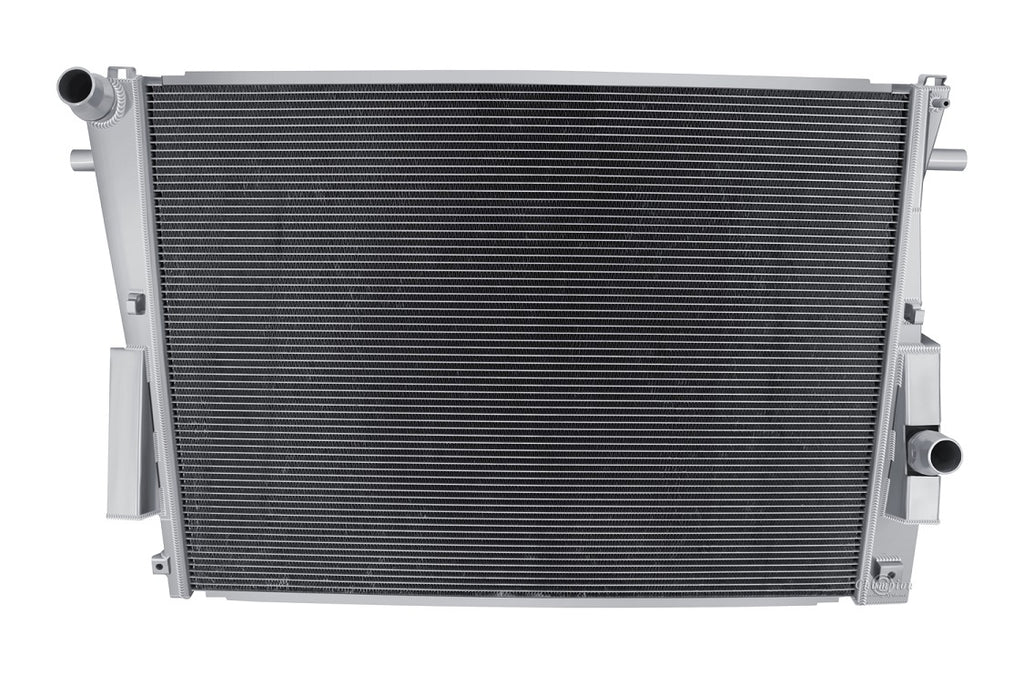

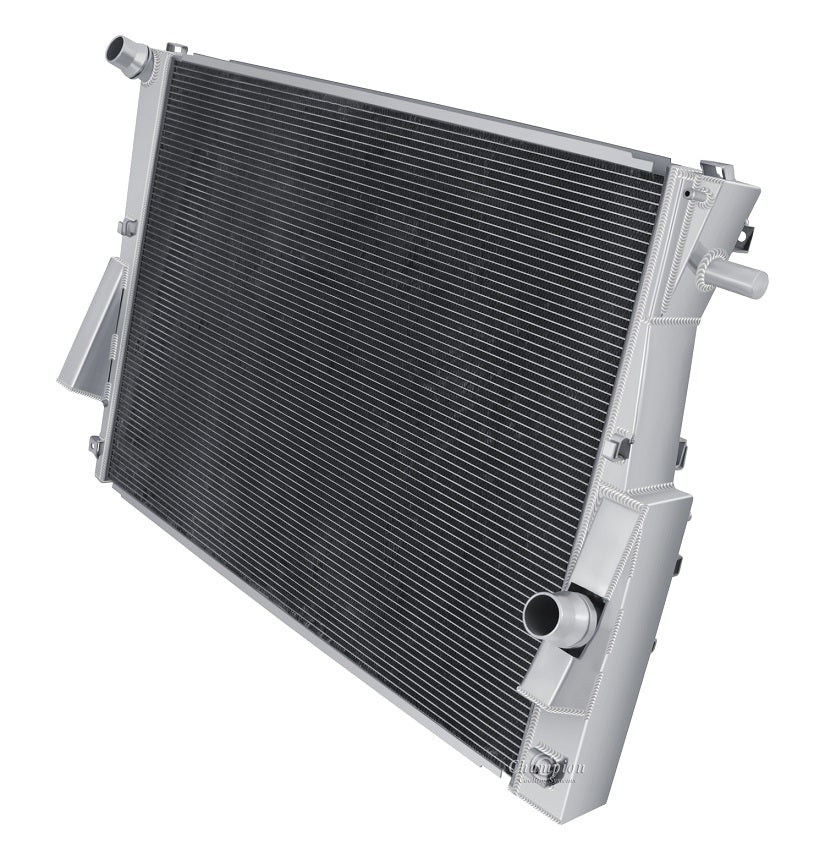

Champion All Aluminum Radiator
4-Row Core | Cools up to 700hp

Radiator Dimensions:
Total: 27.13" tall x 37" wide (with brackets)
Core: 28.38" tall x 26" wide x 2.75" thick
Inlet: 1.87" drivers side
Outlet: 1.75" passenger side
Tanks: 3.5"
Tubes: 0.63" thick

Bracket Mounted

Transmission Cooler included (M14-1.5)

Fits the F-250, F-350, F-450 and F-550 Super Duty's with the 6.4L
