CR13017-1

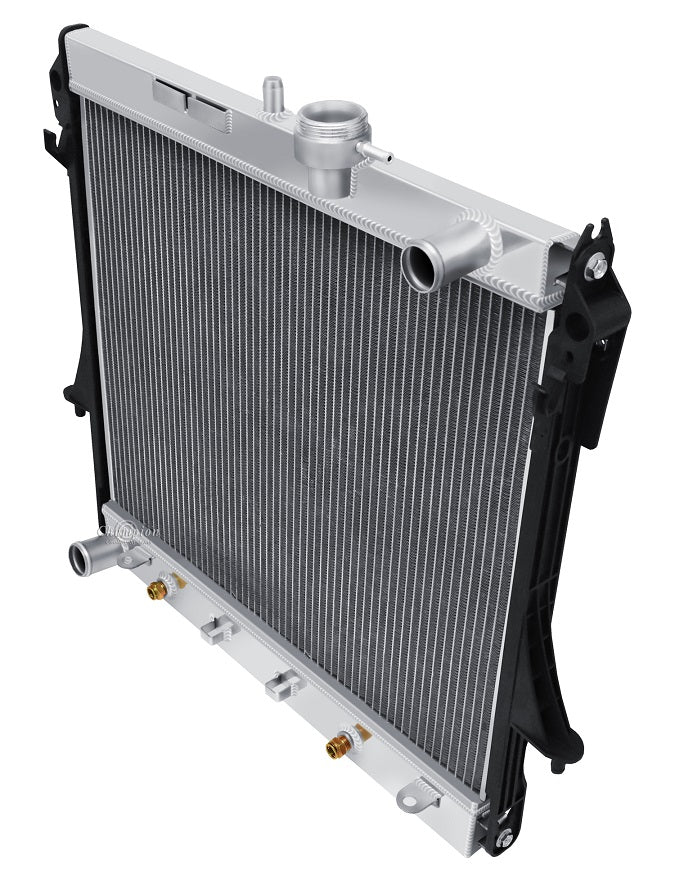

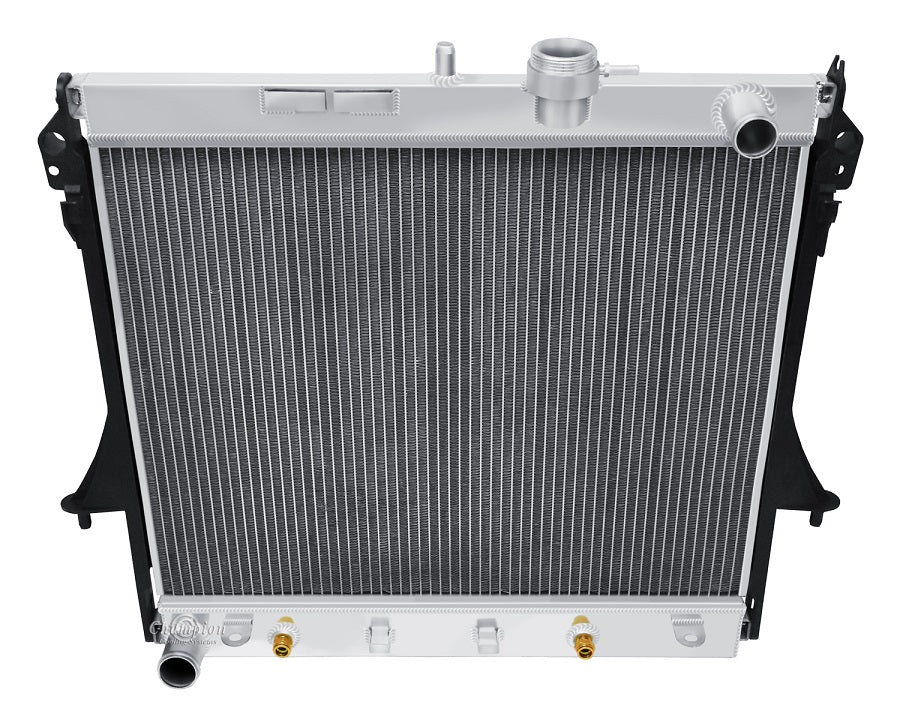

Champion All Aluminum Radiator
1-Row Core | Cools up to 450hp

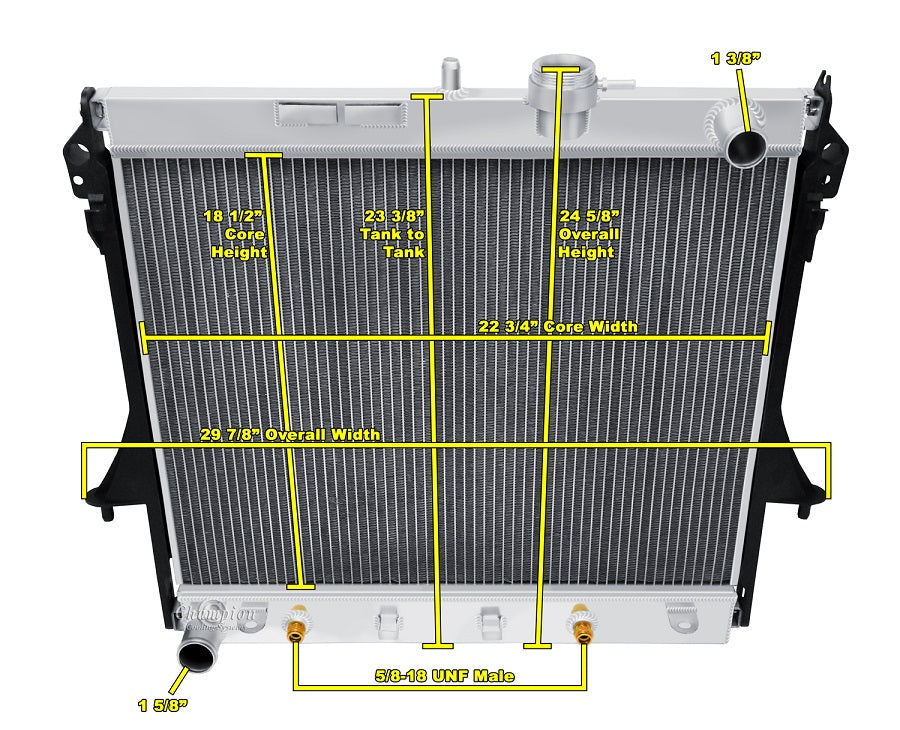

Radiator Dimensions:
Total: 24.63" tall x 29.87" wide (with brackets)
Core: 18.5" tall x 22.75" wide x 2.5" thick
Inlet: 1.38" passenger side
Outlet: 1.63" driver side
Tanks: 1.875" thick
Tube: 1.63" thick

Bracket Mounted

You must supply your own screw on cap
Transmission Cooler included (5/8-18 UNF MALE)

When using electric fans:
One 16" or 2-10" Electric fan(s) recommended for this core size (sold separately)
