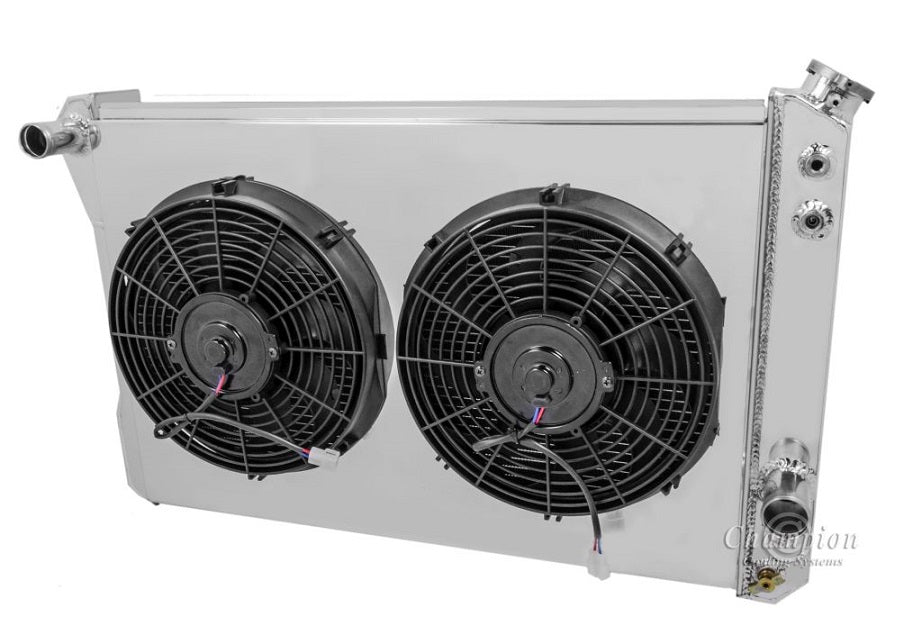

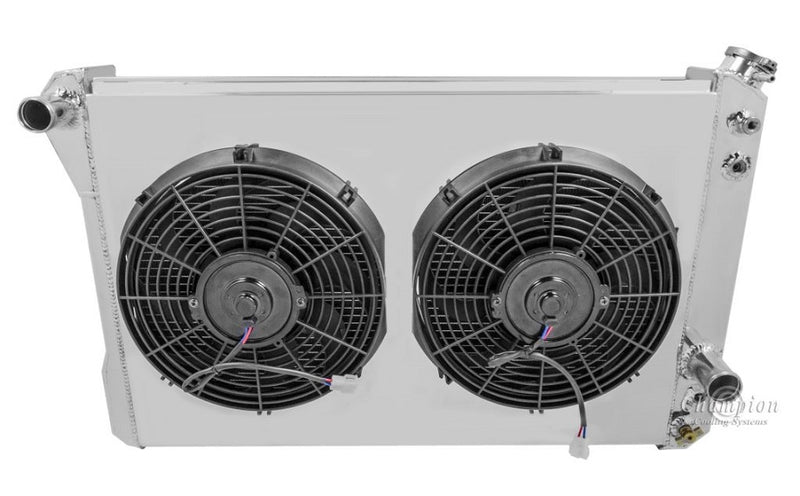

CC951DP-951FS12SP 3 Row Dual Pass

Champion All Aluminum Radiator
Dual Pass / LS Conversions
Plus Shroud and (2) SPAL-1522 12" Fans
You MUST Choose your Outlet sizes -->
Call for AN16 or AN20 Outlets
3-Row Core

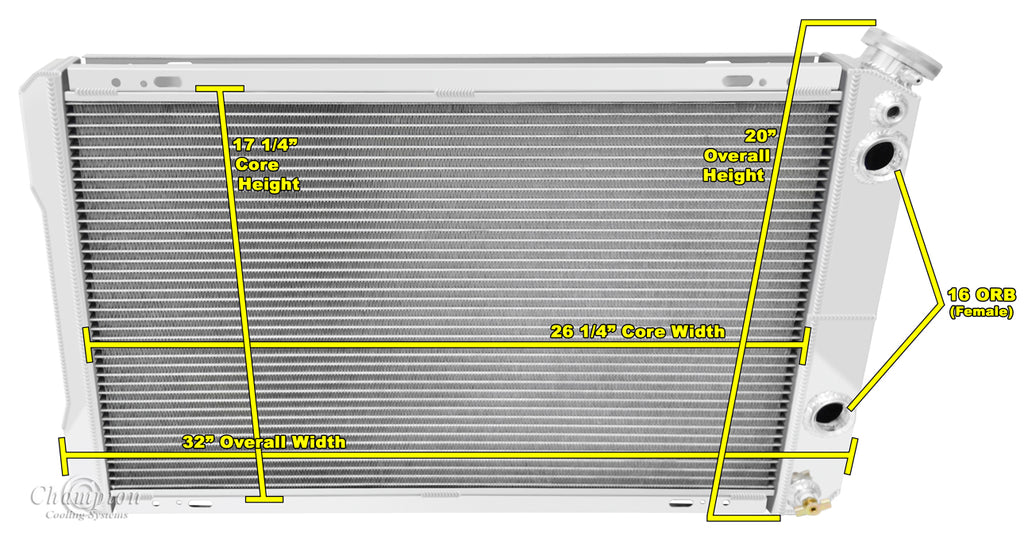

Radiator Dimensions:
Total: 18.88" tall (20.13" with cap) x 32” wide
Core: 17.25” tall x 26.25" wide x 2" thick
Inlet: (Choice your size below) passenger side
Outlet: (Choice your size below) passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick

Saddle Mounted

16 lb. Billet Radiator Cap included
Steam Port with 1/4" barbed fitting and plug included
