CC916 3 Row

Champion All Aluminum Radiator
3-Row Core | Cools 500hp

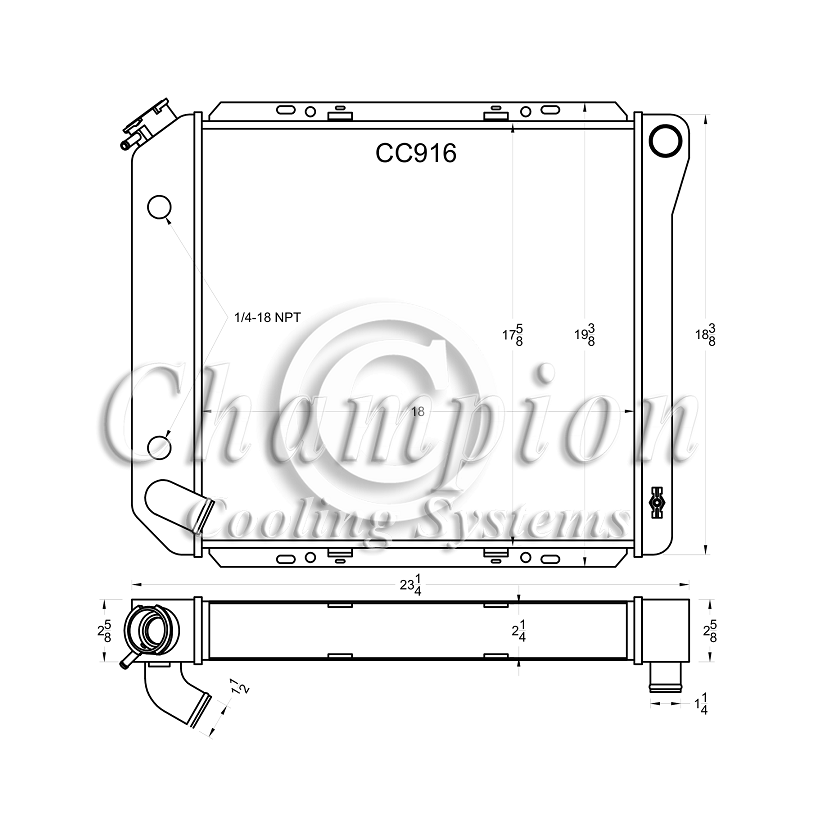

Radiator Dimensions:
Total: 19.38" tall x 23.25" wide
Core: 17.63" tall x 18" wide x 2" thick
Inlet: 1.25" passenger side
Outlet: 1.5" drivers side
Tanks: 2.63" thick
Tubes: 0.63" thick

Saddle Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/4-18NPT)

When using electric fans:
One 16" or Dual 11" SPAL Electric fan(s) recommended for this core size (sold separately)
