CC8559 3 Row

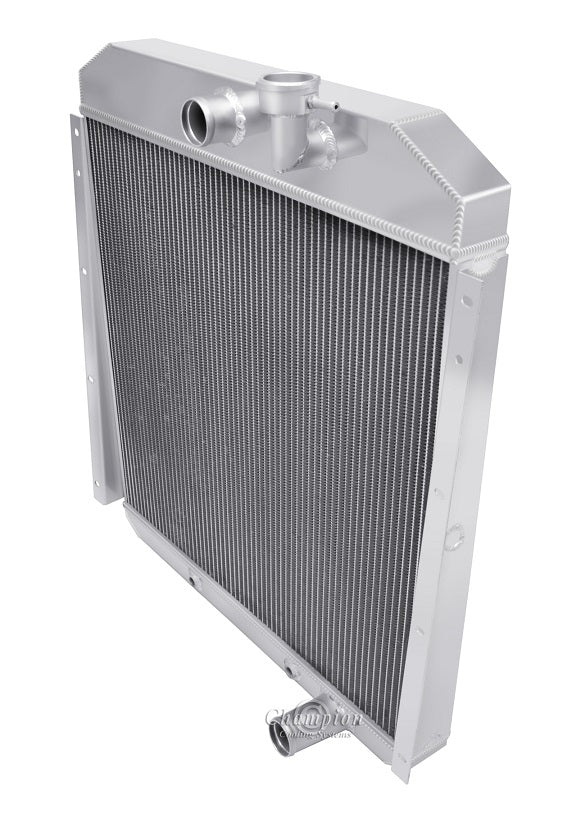

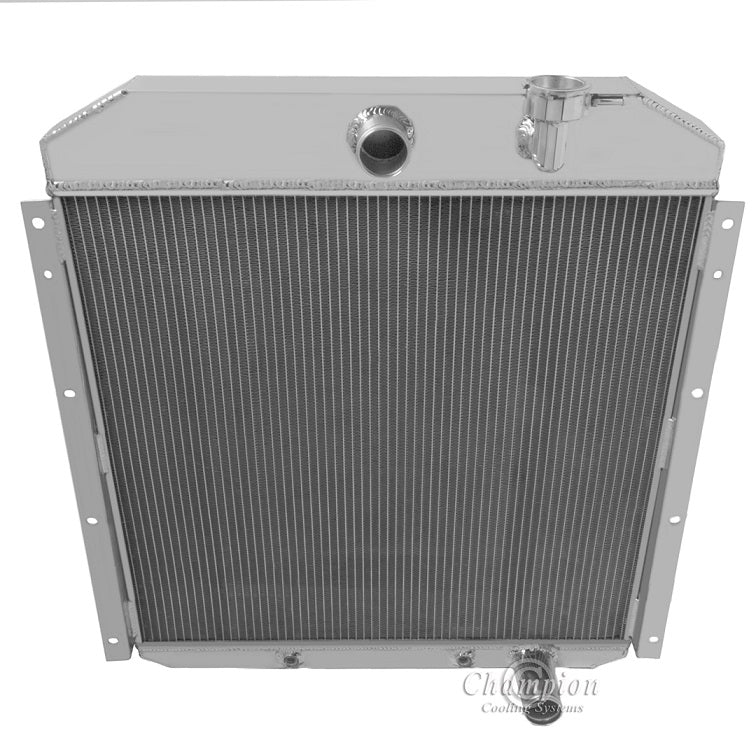

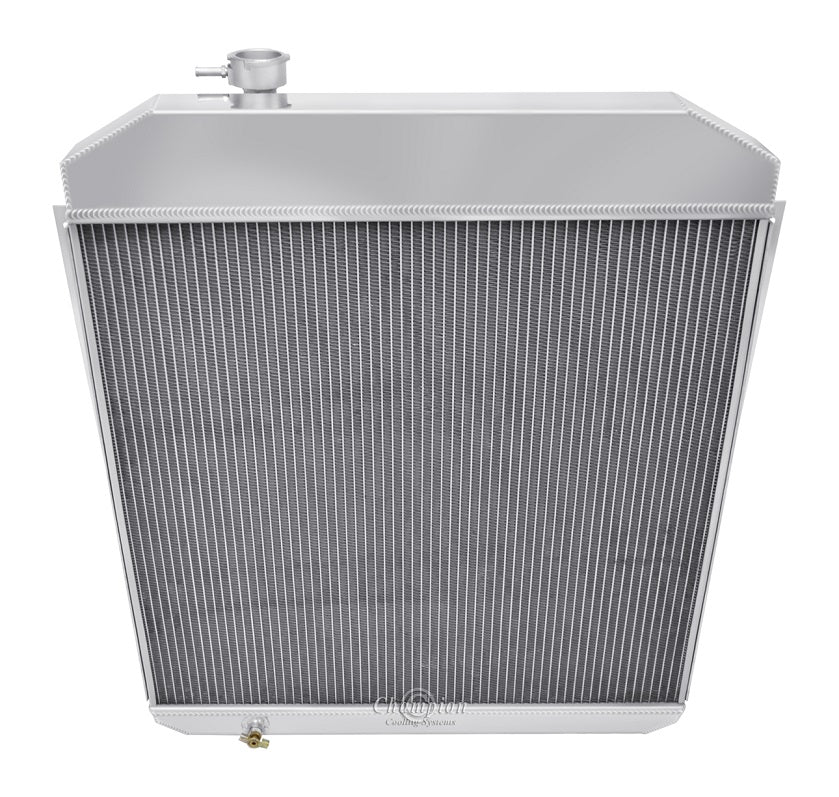

Champion All Aluminum Radiator
3-Row Core | Cools up to 650hp

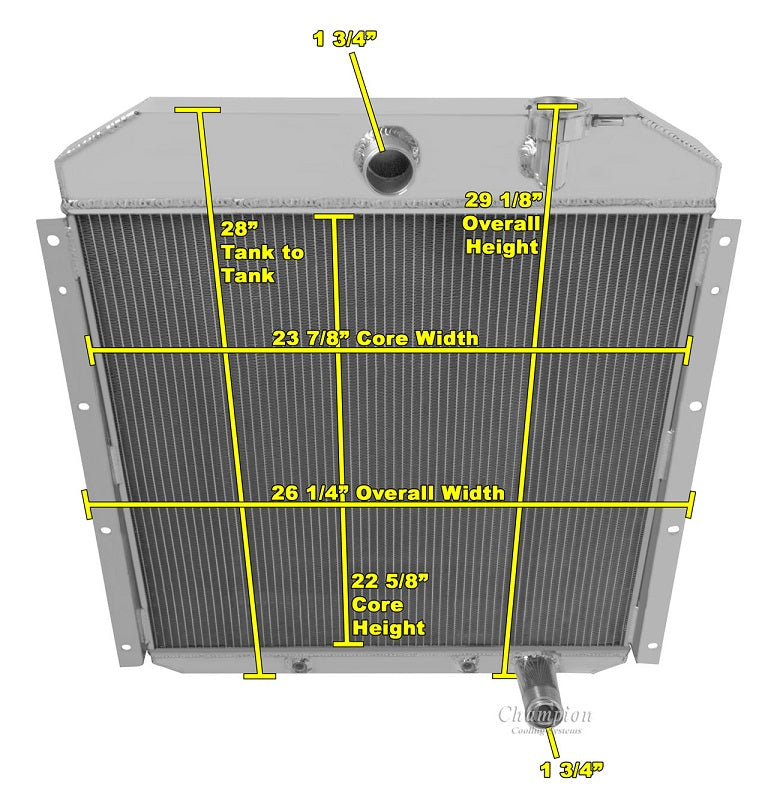

Radiator Dimensions:
Total: 29.13" tall (with cap) x 26.25" wide (including brackets)
Core: 22.63" tall x 23.88" wide x 2.75 thick
Inlet: 1.75" center
Outlet: 1.75" passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler Included (1/2"-20straight thread)

When using electric fans:
One 16" fan recommended for this core size (sold separately)
