CC850 3 Row Diesel

Champion All Aluminum Radiator
3-Row Core | Cools up to 800hp

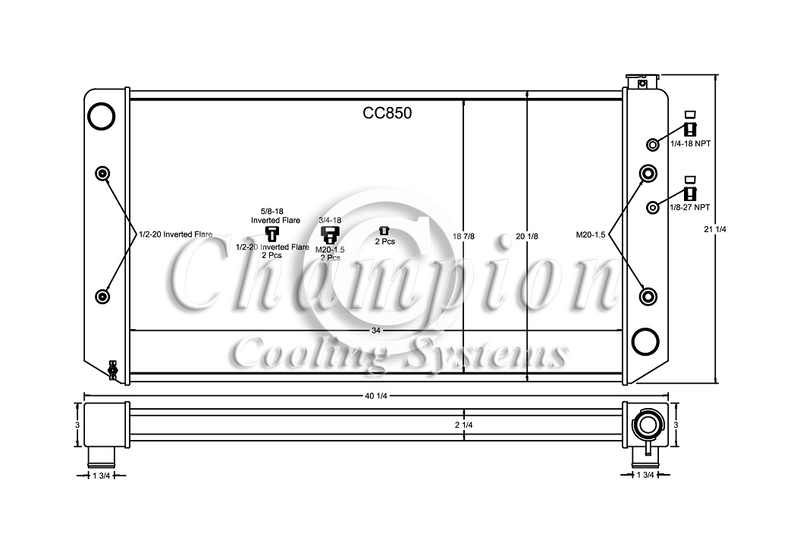

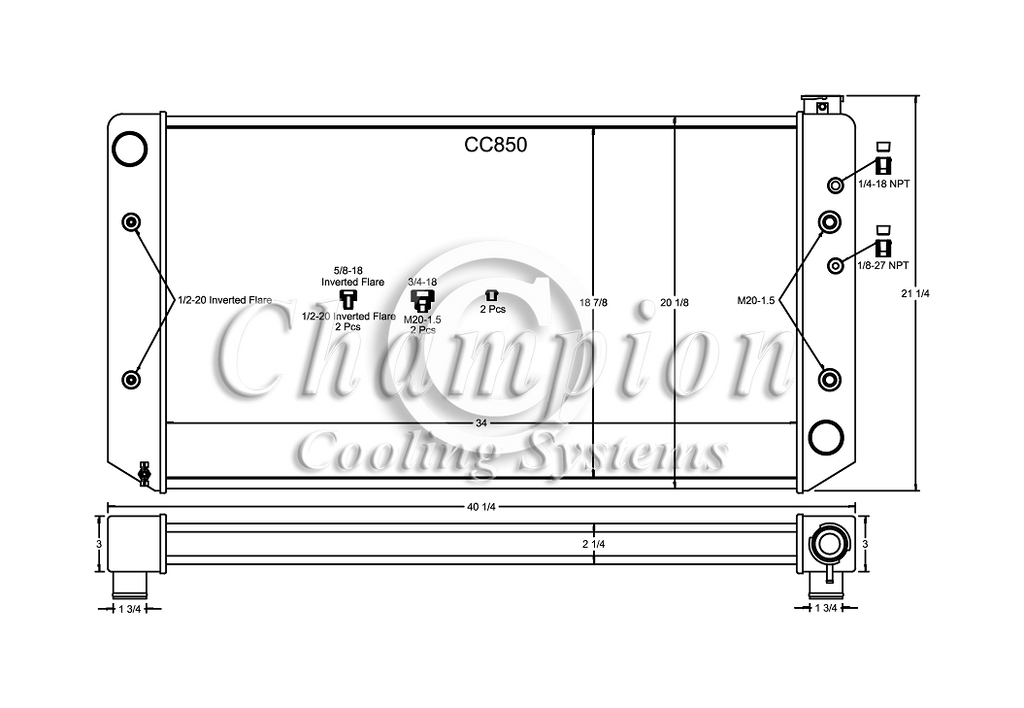

Radiator Dimensions:
Total: 21.25" tall x 40.25" wide
Core: 18.87" tall x 34" wide x 2.25" thick
Inlet: 1.75"driver side
Outlet: 1.75" passenger side
Tanks: 3" thick
Tubes: 0.63" thick

Saddle Mounted

16 lb. Radiator Cap included

Transmission Cooler included
(1/2"- 20 straight thread w/ 5/8"-18 adapter)
adapters included

Engine oil Cooler included
(M20 x 1.5 w/ 3/4"-18 adapter)

When using electric fans (sold separately):
Two 16" Electric fans available for this core size
