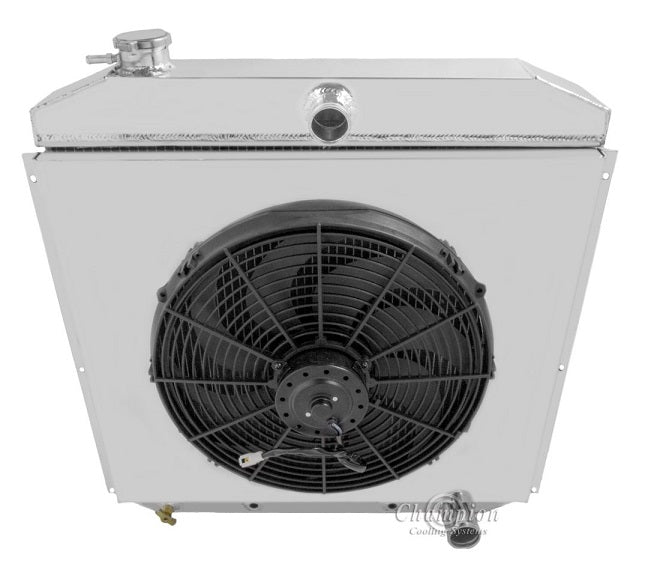

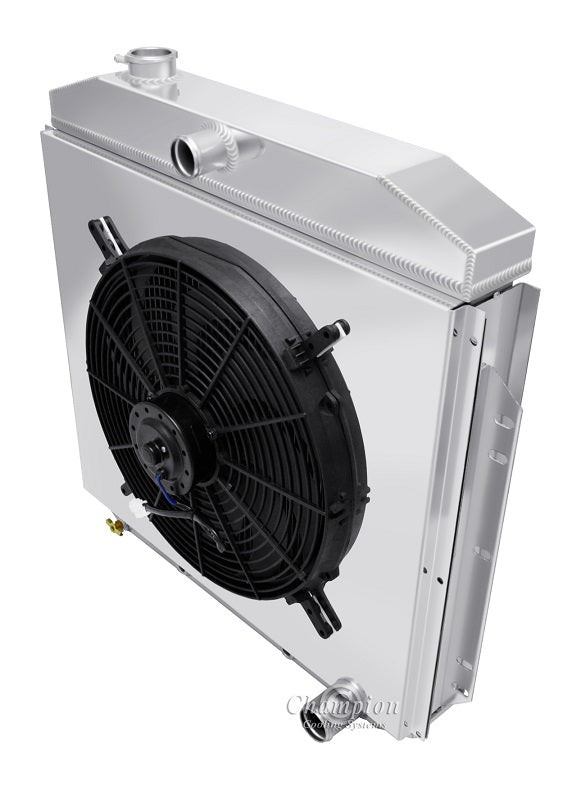

CC8356-8356FS16 3 Row Combo

Champion All Aluminum Radiator PLUS
Ledfoot Racing Aluminum Shroud & 16" Pro-Series Fan
Verify clearance for electric fan
Total thickness: 6" to fan motor
For Chevy V8 Conversions
3-Row Core | 650hp Rating

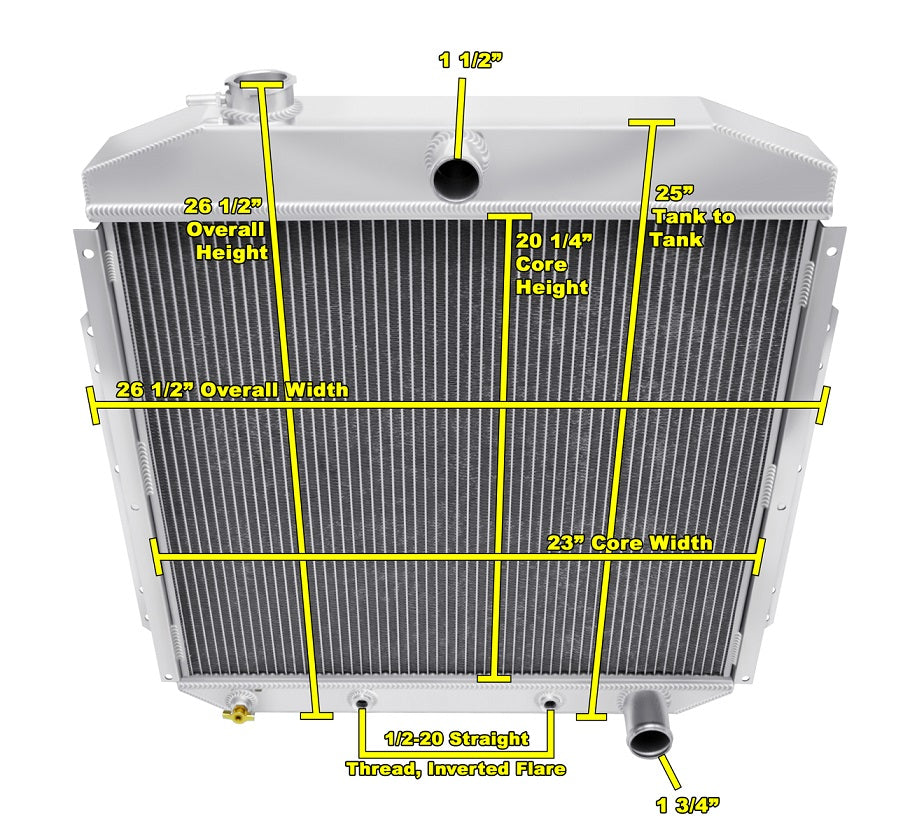

Radiator Dimensions:
Total: 26.5" tall (with cap) x 26.5" wide (including brackets)
Core: 20.25" tall x 23" wide x 2" thick
Tanks: 3.25" thick
Inlet: 1.5" center
Outlet: 1.75" passenger side
Tubes: 0.63" thick

Bracket Mounted
13 lb. Radiator Cap included
