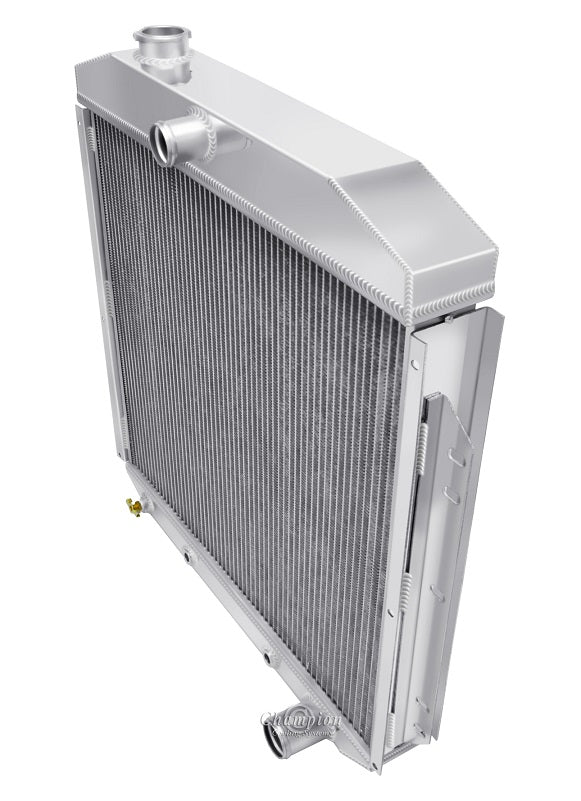

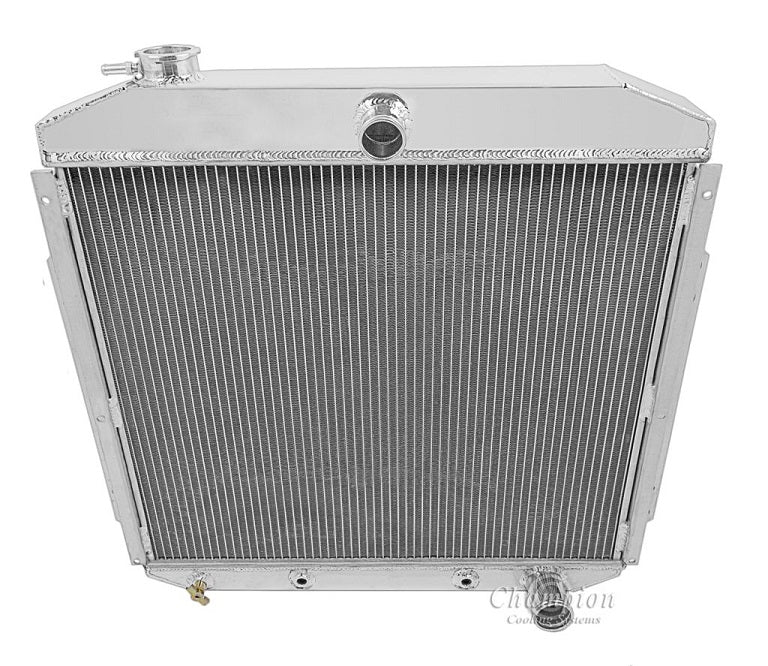

CC8356 3 Row

All Aluminum Champion Radiator
3-Row Core | Cools up to 650hp

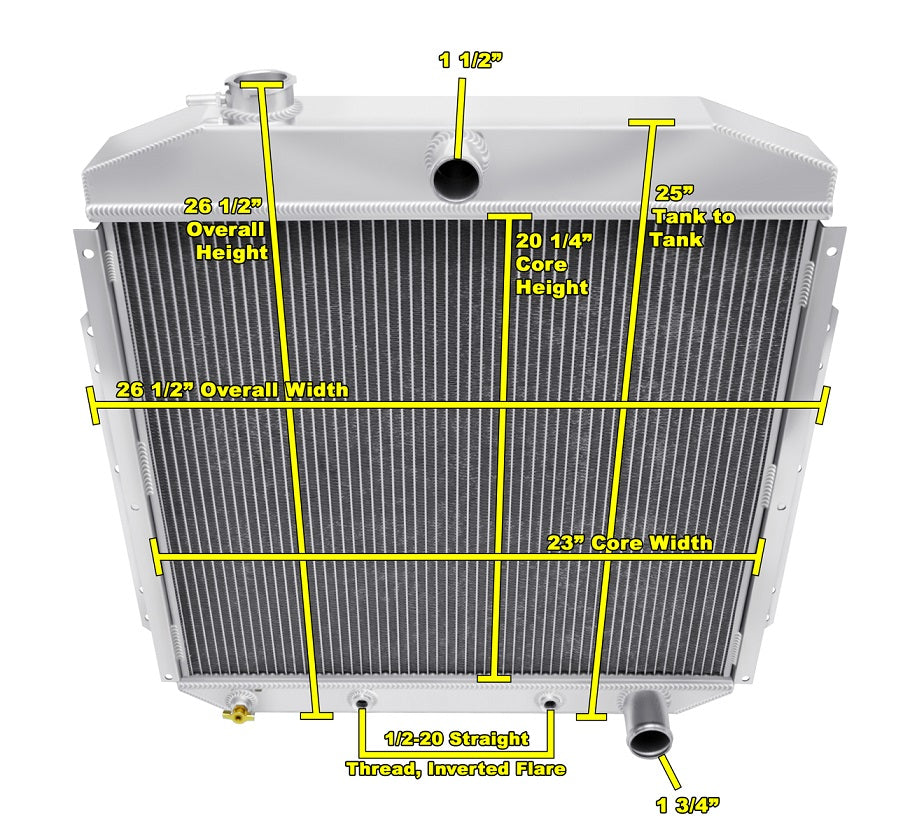

Radiator Dimensions:
Total: 26.5" tall (with cap) x 26.5" wide (including brackets)
Core: 20.25" tall x 23" wide x 2" thick
Tanks: 3.25" thick
Inlet: 1.5" center
Outlet: 1.75" passenger side
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/2"-20 straight thread)
Aluminum Shroud is also available (sold separately)

When using electric fans:
One 16" Electric fans recommended for this core size
