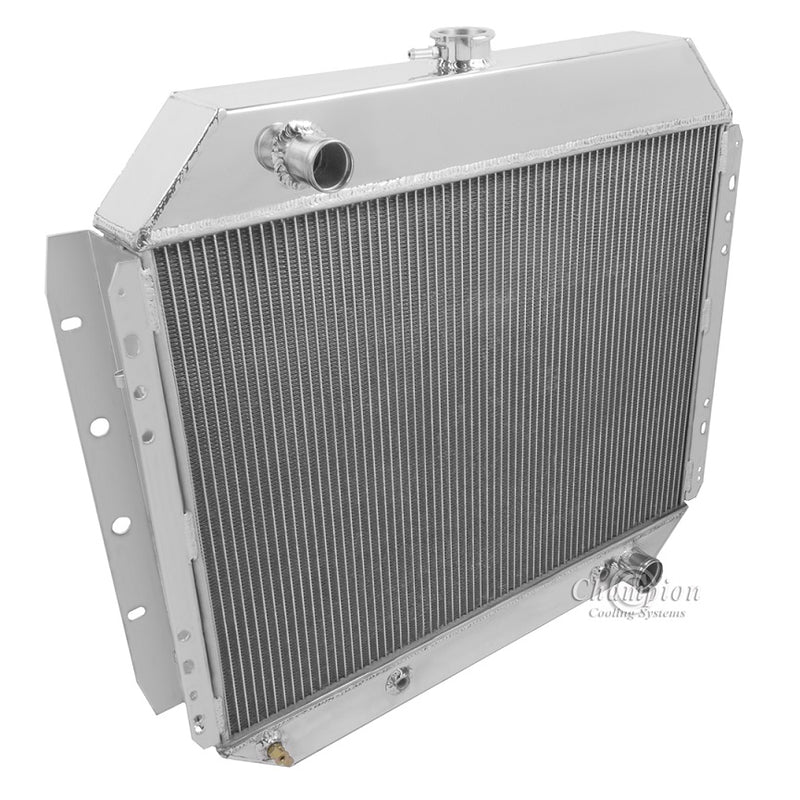

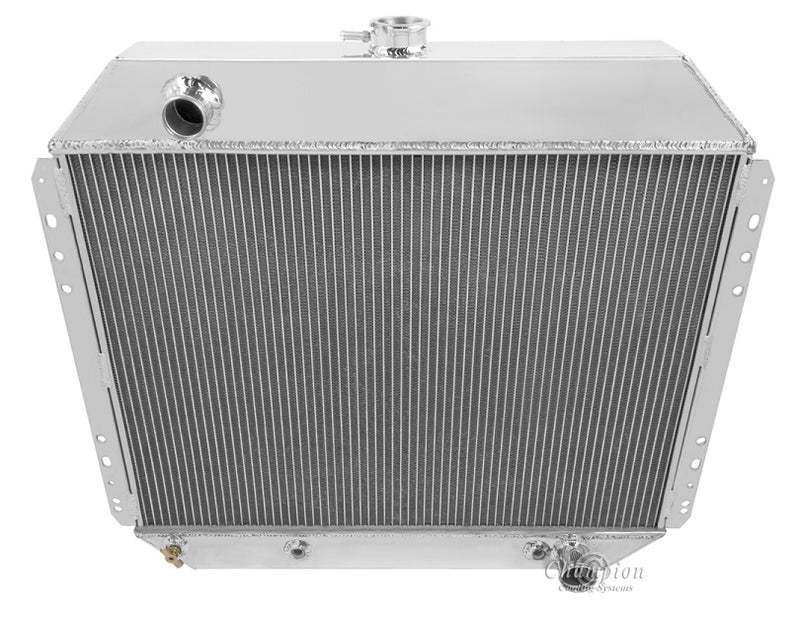

CC833B 3 Row Chevy V8's

Champion All Aluminum Radiator
Chevy V8 Conversions
3-Row Core | Cools up to 700hp

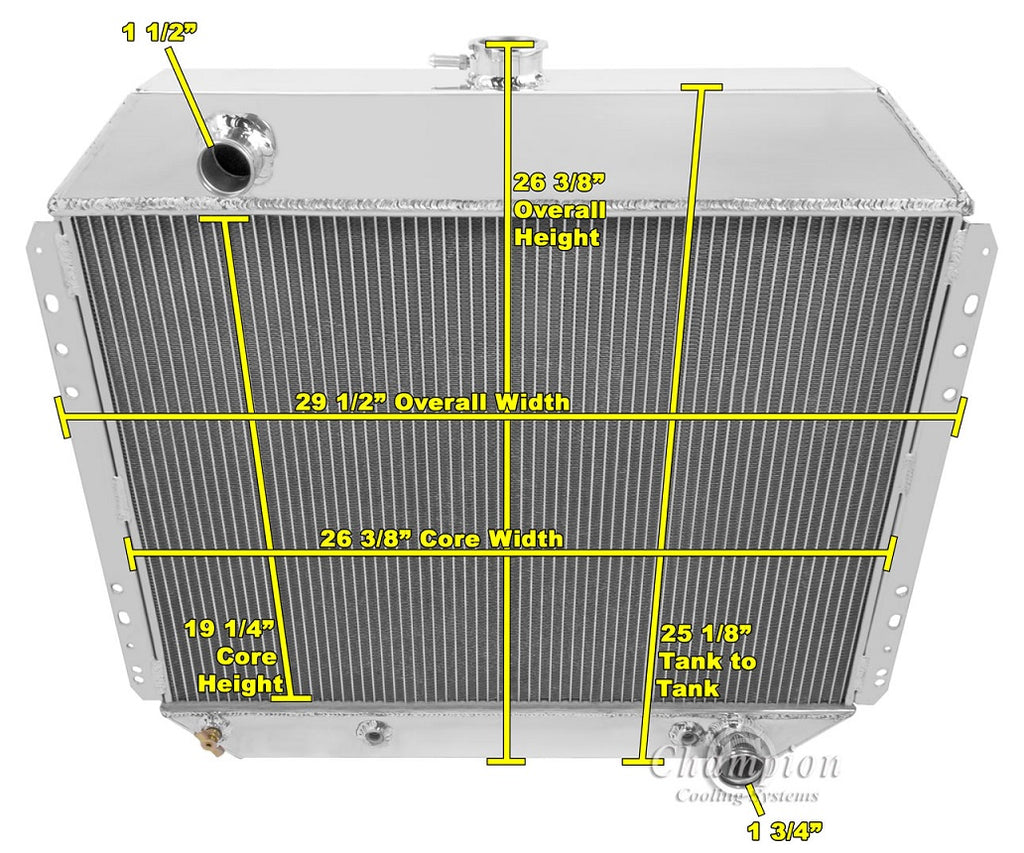

Radiator Dimensions:
Total: 25" tall (26.38" with cap) x 29" wide (including brackets)
Core: 18.75" tall x 26" wide x 2.5" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 3" thick
Tubes: 0.75" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler Included (1/2" 20 STRAIGHT THREAD)
Aluminum Shroud is also available (sold separately)

When using electric fans:
Two 12" Electric fans recommended for this core size (sold separately)
