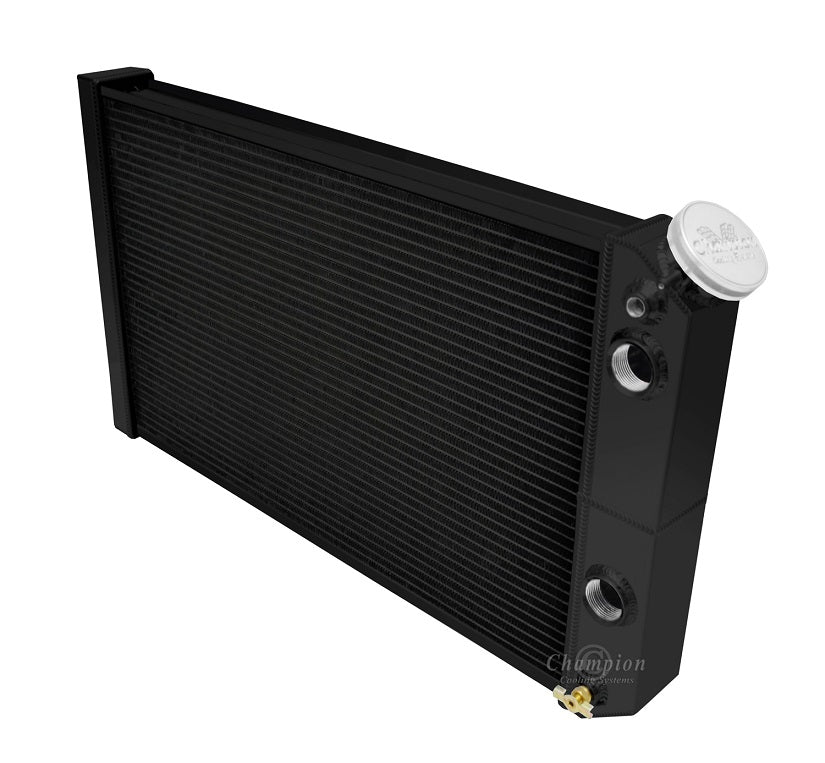

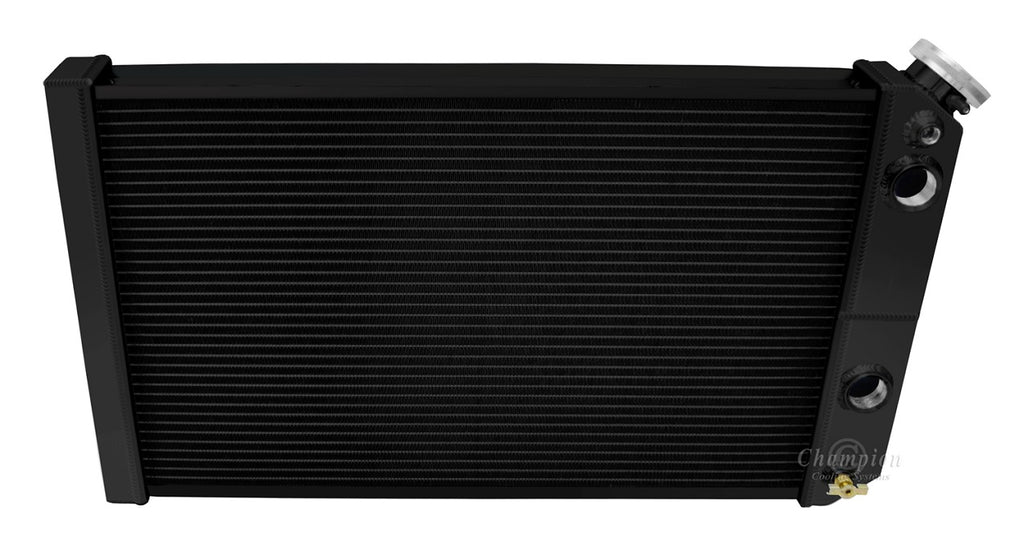

CC829DP-BLK 3 Row Dual Pass Black

Champion All Aluminum Radiator
Dual Pass / LS Conversions
You MUST Choose your Outlet sizes -->
Call for AN16 or AN20 Outlets
3-Row Core | Cools up to 650hp

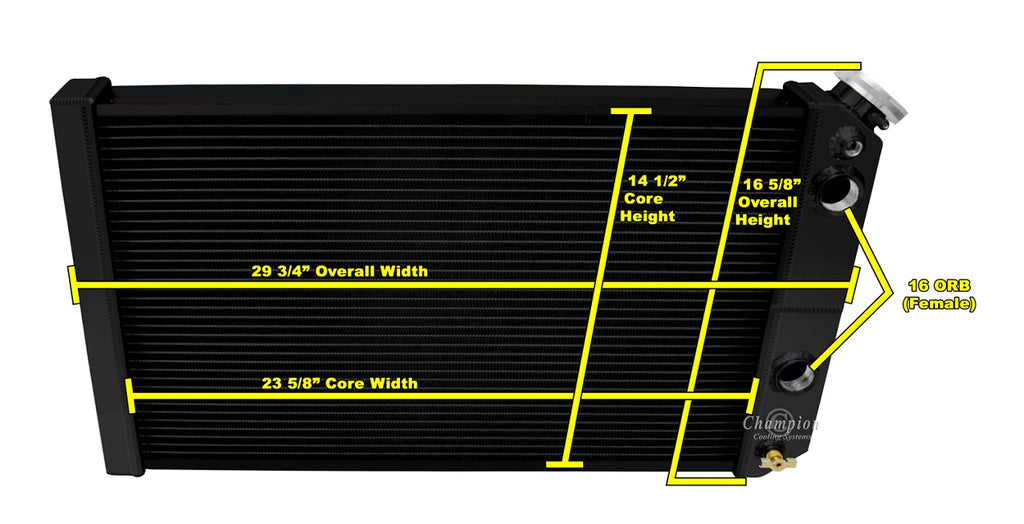

Radiator Dimensions:
Total: 16.63" tall x 29.75" wide
Core: 15" tall x 23.63" wide x 2" thick
Inlet: (Choice your size below) passenger side
Outlet: (Choice your size below) passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick

Saddle Mounted

16 lb. Billet Radiator Cap included
Steam Port with 1/4" barbed fitting and plug included

When using electric fans (sold separately):
Two 11" SPAL fans recommended for this core size
