CC829-BLK 3 Row Black

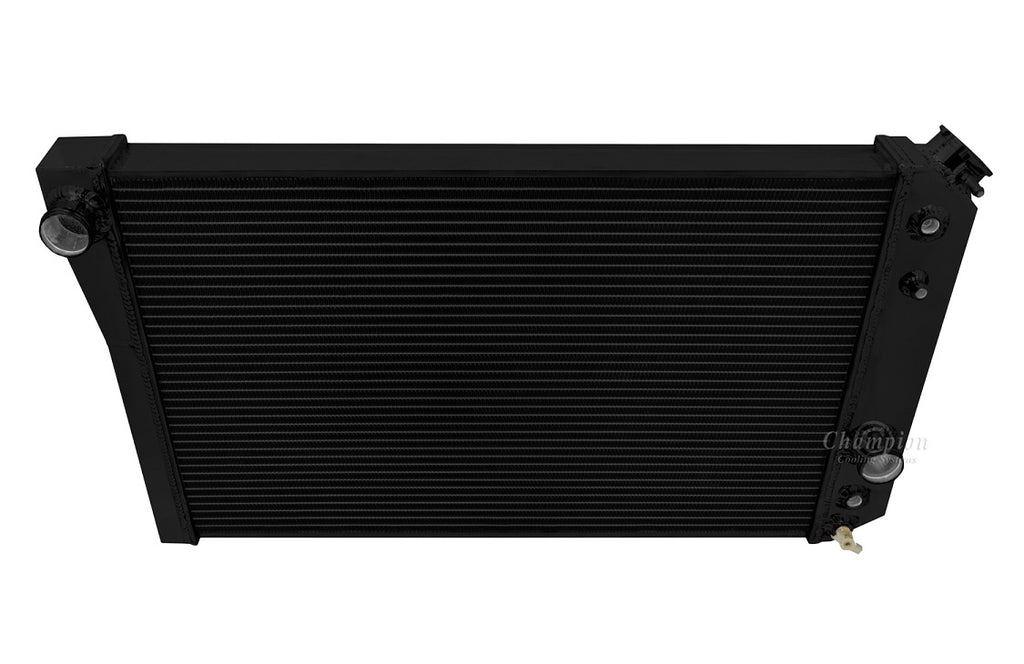

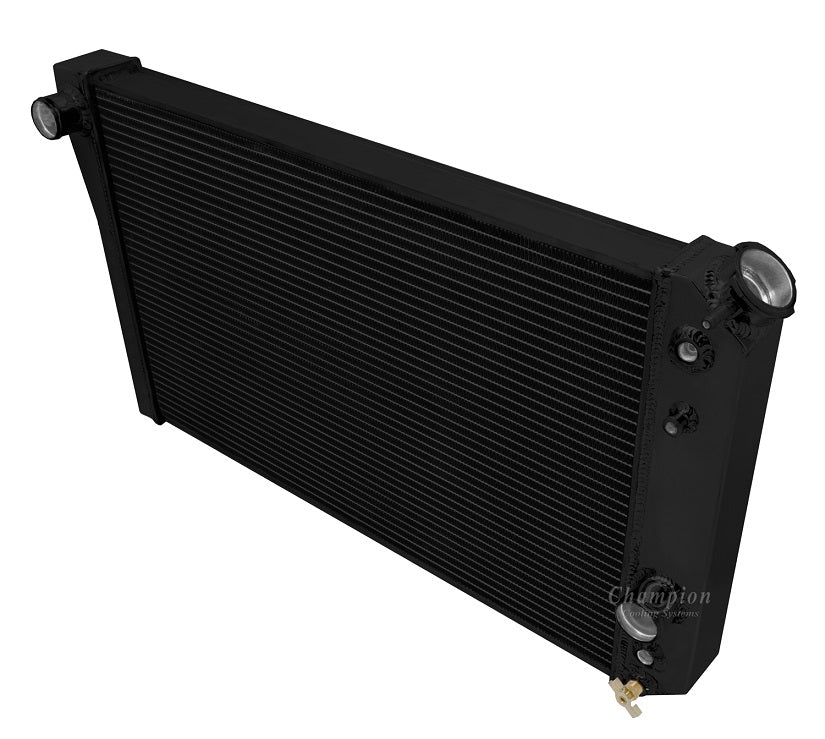

Champion All Aluminum Radiator (Black)
3-Row Core | Cools up to 650hp

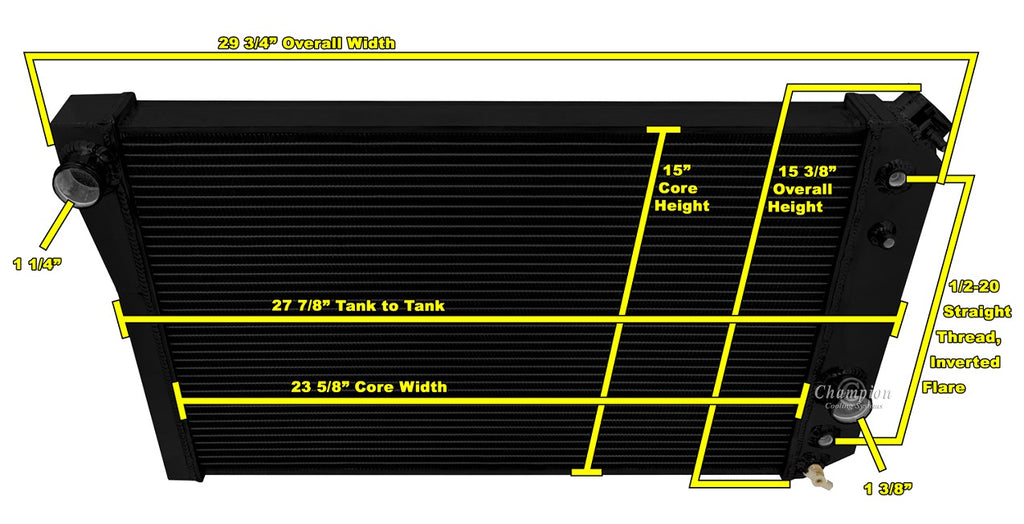

Radiator Dimensions:
Total: 15.87" (16.75" w/cap) tall x 29.75" wide
Core: 15" tall x 23.63" wide x 2" thick
Inlet: 1.25" driver side
Outlet: 1.38" passenger side
Tank: 2.5" thick
Tubes: 0.63" thick

Saddle Mounted

13 lb. Radiator Cap included
Transmission Cooler Included (1/2"- 20 STRAIGHT THREAD)

When using electric fans:
Two 12" Electric fans recommended for this core size (sold separately)
