CC828 3 Row

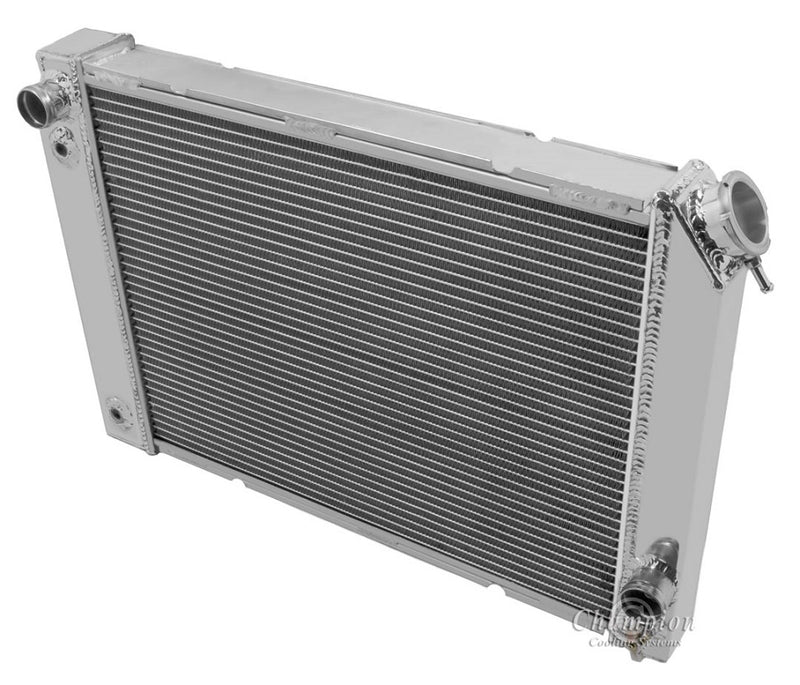

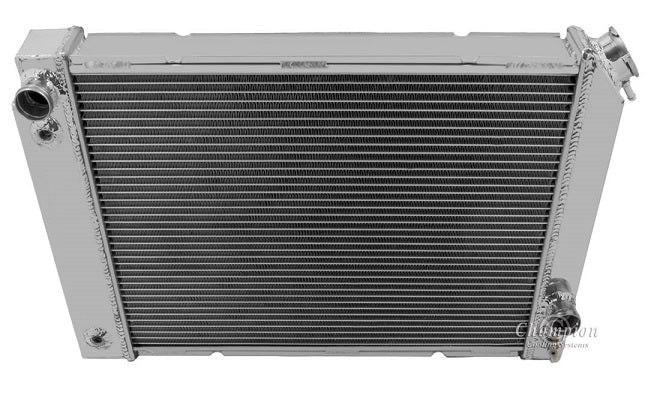

Champion All Aluminum Radiator
3-Row Core | Cools up to 450hp

Radiator Dimensions:
Total: 17.25" tall x 25.25" wide
Core: 15" tall x 19.88" wide x 2" thick
Inlet: 1.38" driver side
Outlet: 1.38" passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick

Saddle Mounted

13 lb. Radiator Cap included
Transmission Cooler Included (Driver side) 1/2" -20 STRAIGHT THREAD

When using electric fans:
One 14" Electric fan recommended for this core size (sold separately)
