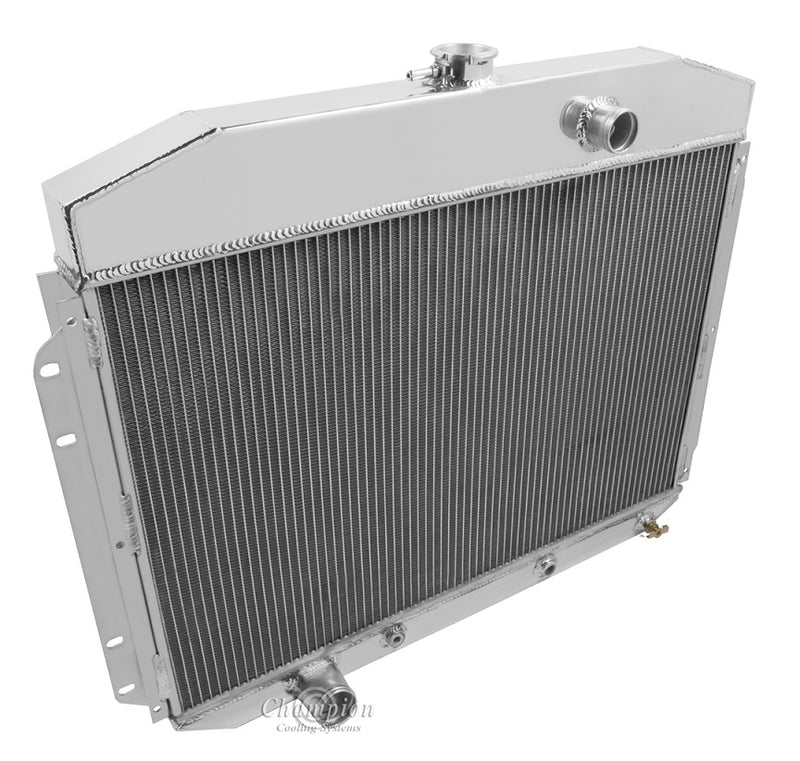

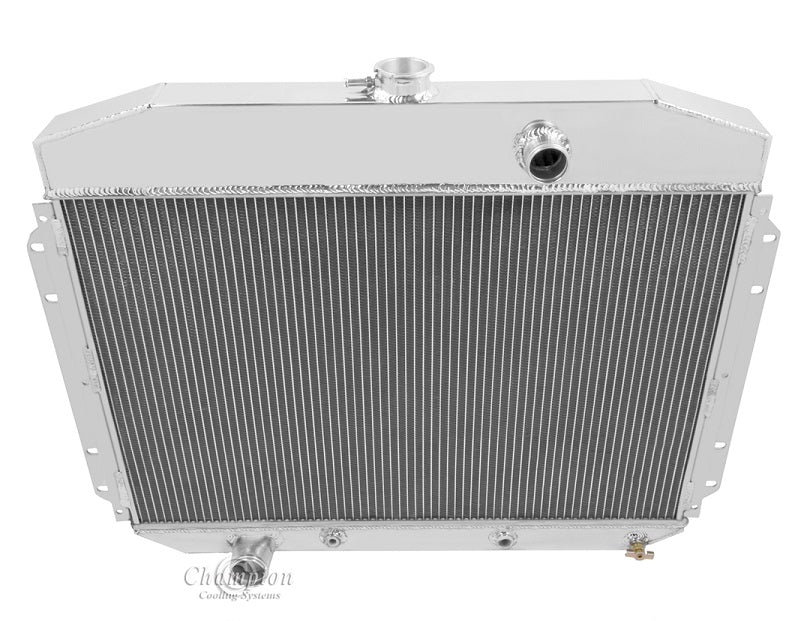

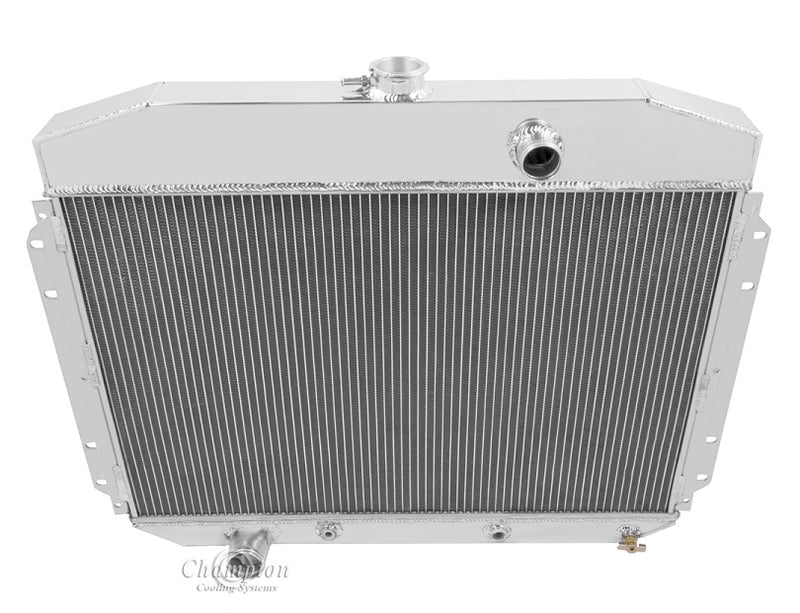

CC8164 3 Row

Champion All Aluminum Radiator
Works with the V8's (Check your hose positions)
3-Row Core | Cools up to 700hp

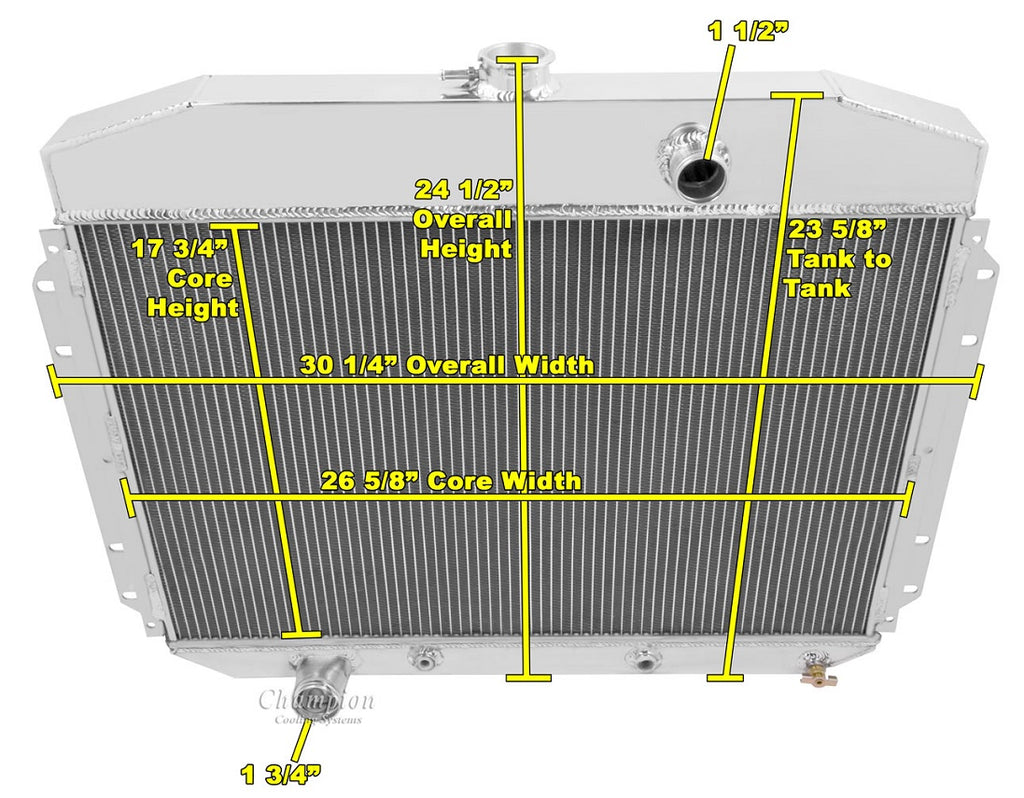

Radiator Dimensions:
Total: 23" tall (24.25" with cap) x 30.25" wide (with brackets)
Core: 17.75" tall x 26.25" wide x 2.5" thick
Inlet: 1.5" passenger side
Outlet: 1.75" driver side
Tanks: 2.5" thick
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/8-27npt)

When using electric fans:
Two 12" SPAL Electric fans recommended for this core size (sold separately)
