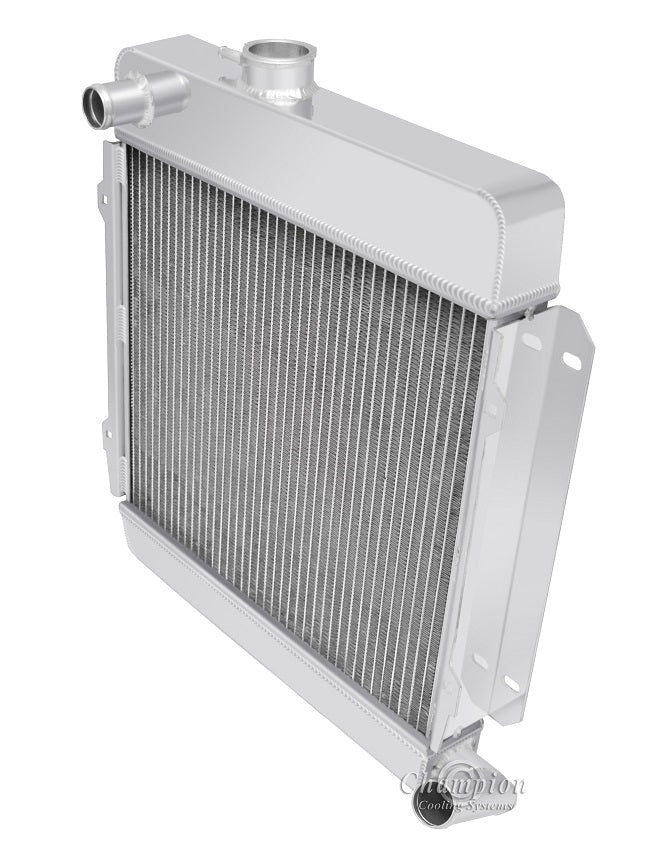

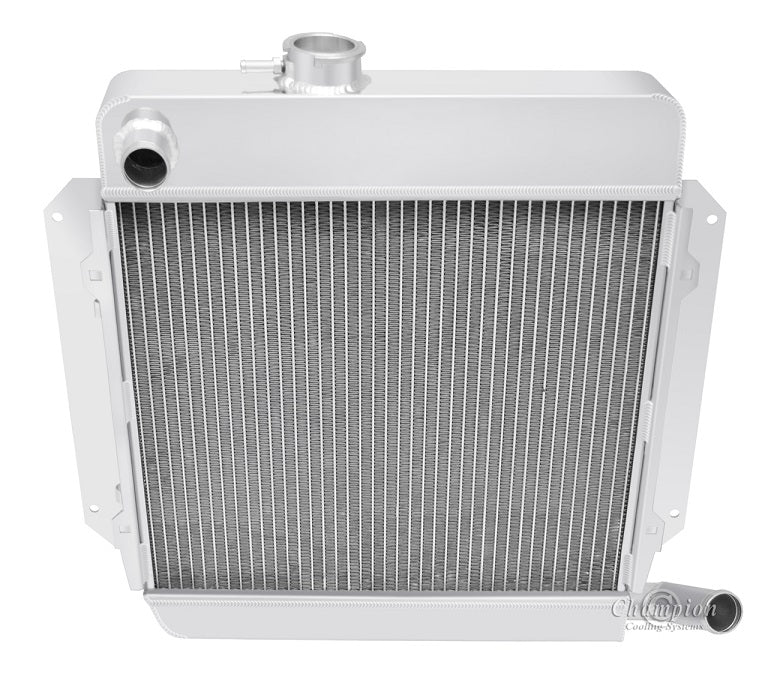

CC797 3 Row

Champion All Aluminum Radiator
3-Row Core | Cools up to 450hp
High Performance Application, Fabrication Required to Mount
because of Radiator Thickness. Cannot use Mechanical Fan

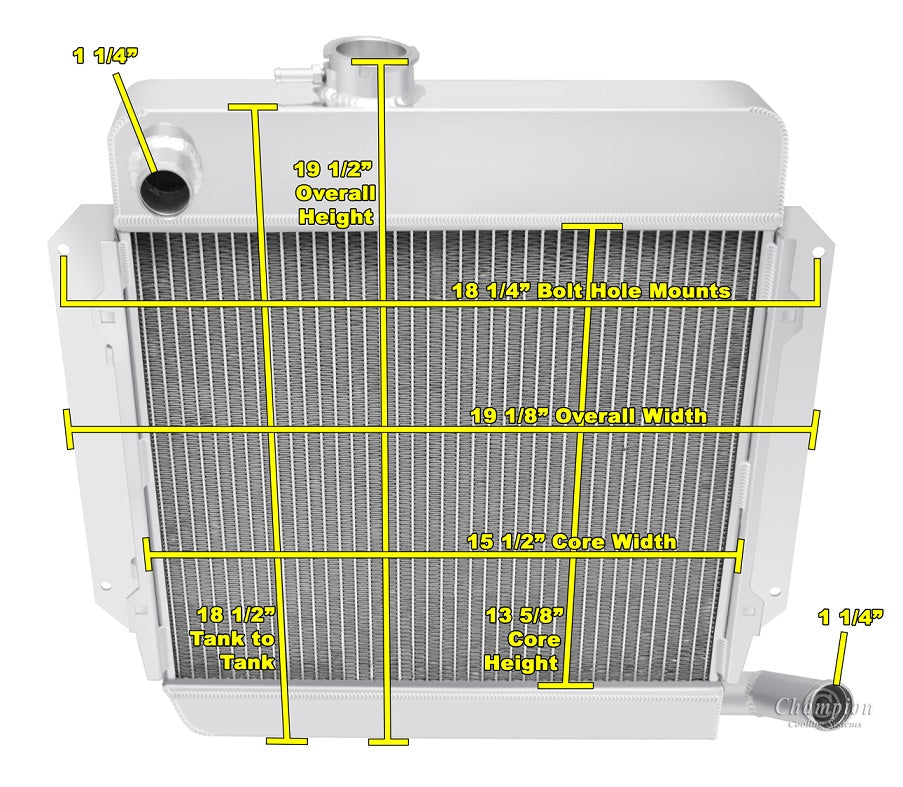

Radiator Dimensions:
Total: 19.5" tall x 19.13" wide
Core: 13.63" tall x 15.5" wide x 2" thick
Inlet: 1.25" driver side
Outlet: 1.25" passenger side
Tank: 2.75" thick
Tubes: 0.63" thick

Saddle Mounted

13 lb. Radiator Cap included
Transmission Cooler NOT Included

When using electric fans:
One 13" SPAL fan recommended for this core size (sold separately)
