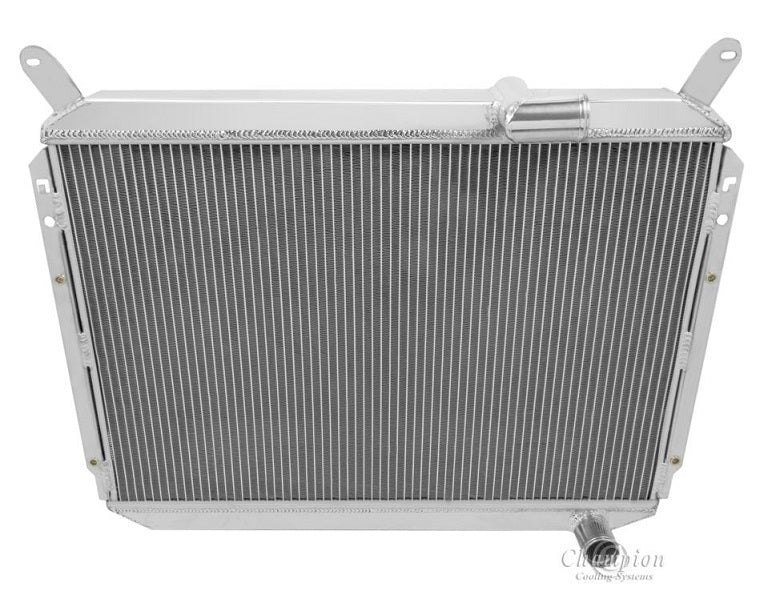

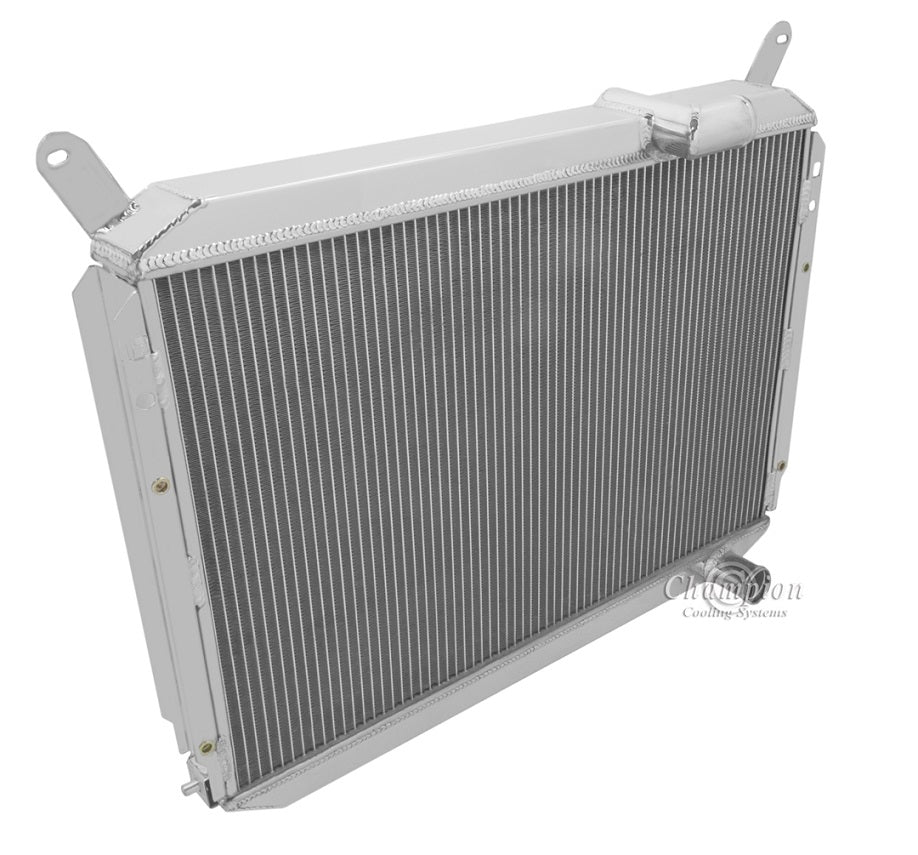

CC762 3 Row

All Aluminum Champion Radiator
3-Row Core | Cools up to 650hp

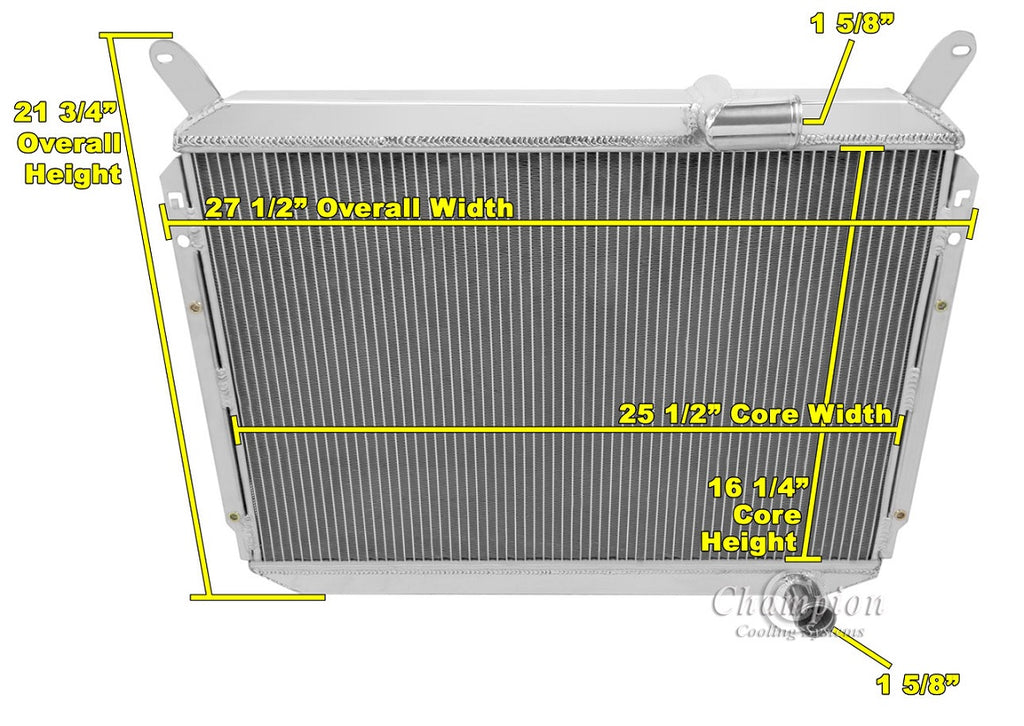

Radiator Dimensions:
Total: 22.38" (with cap) x 27.63" (including brackets)
Core: 16.13" tall x 25.38" wide x 2" thick
Inlet: 1.5" passenger side angled to the right
Outlet: 1.5" passenger side
Tanks: 2.5" thick
Tubes: 0.63"

Bracket Mounted

Automatic Trans Cooler included: (Metric 12-1.25)
Located under bottom tank

When using electric fans:
One 16" Fan or two 12" Electric fans recommended for this core size (sold separately)
