CC7273-7273FS11CSP 3 Row Combo

Champion All Aluminum Radiator PLUS
Aluminum Shroud and (2) SPAL-1500 11" Fans
3-Row Core | Cools up to 600hp

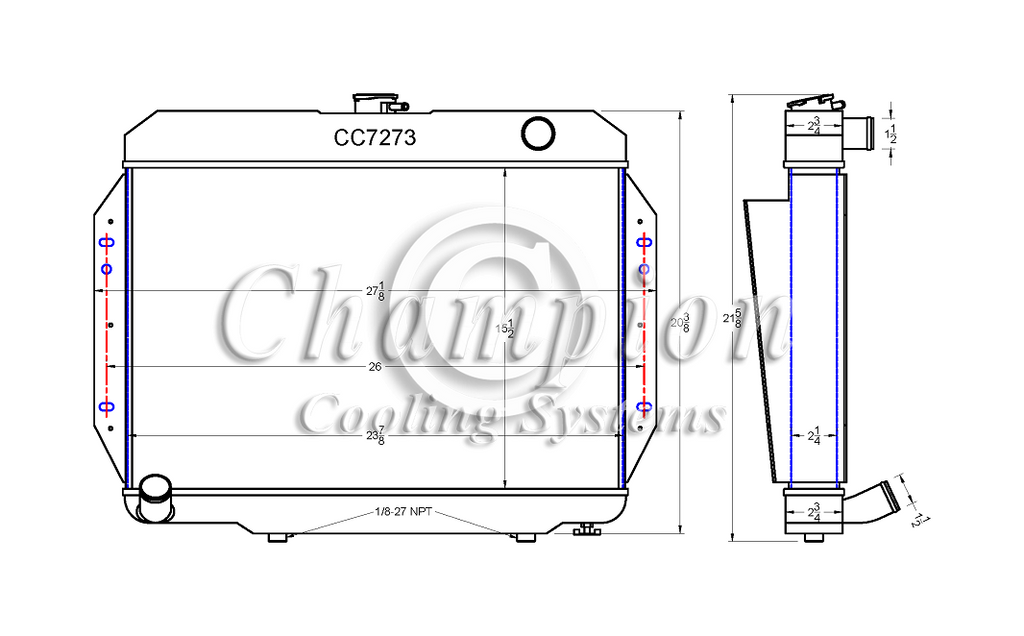

Radiator Dimensions:
Total: 27.13" wide (including brackets) x 21.63" tall
Core: 24" wide x 15.5" tall x 2.25" thick
Inlet: 1.5" passenger side
Outlet: 1.5" driver side
Tanks: 2.75" thick
Tubes: 0.63" thick

Bracket Mounted (26" Hole to Hole)

13 lb. Radiator Cap included
Transmission Cooler Included (1/8"-27npt)
