CC7180 3 Row

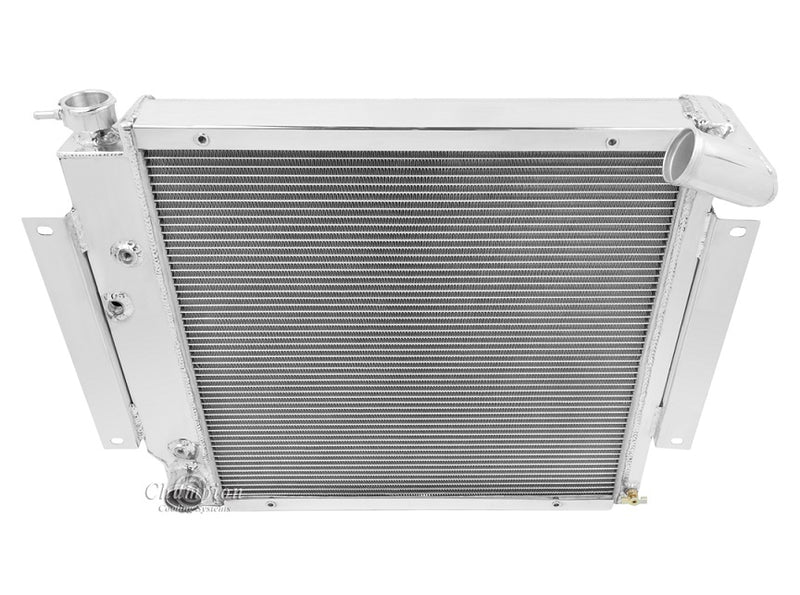

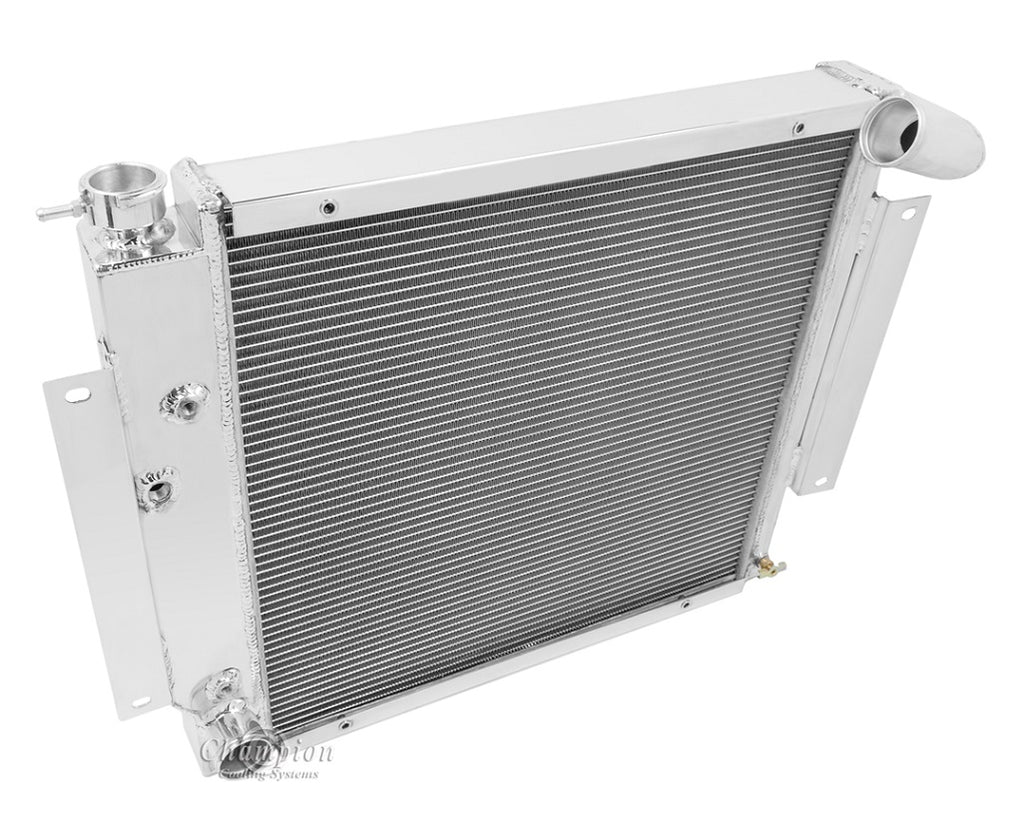

Champion All Aluminum Radiator
3-Row Core | Cools up to 600hp

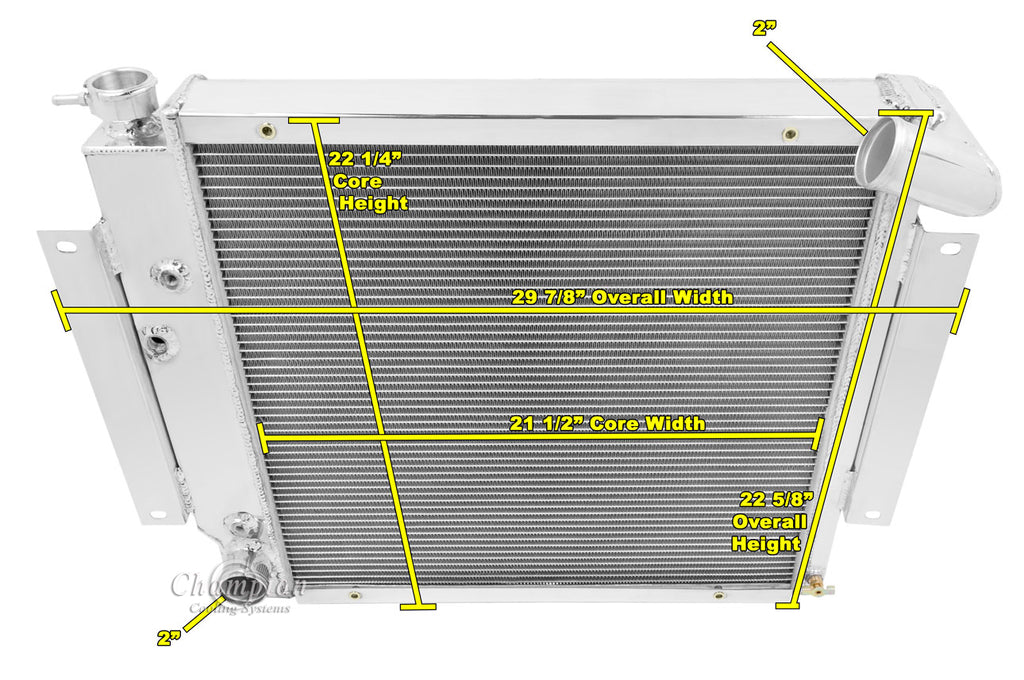

Radiator Dimensions:
Total: 23" tall (with cap) x 29.25" wide (including brackets)
Core: 22.13" tall x 21.75" wide x 2" thick
Inlet: 2” passenger side
Outlet: 2" driver side
Tanks: 2.75"
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler (1/8 27 npt)

When using electric fans:
One 16" fan recommended for this core size (sold separately)
