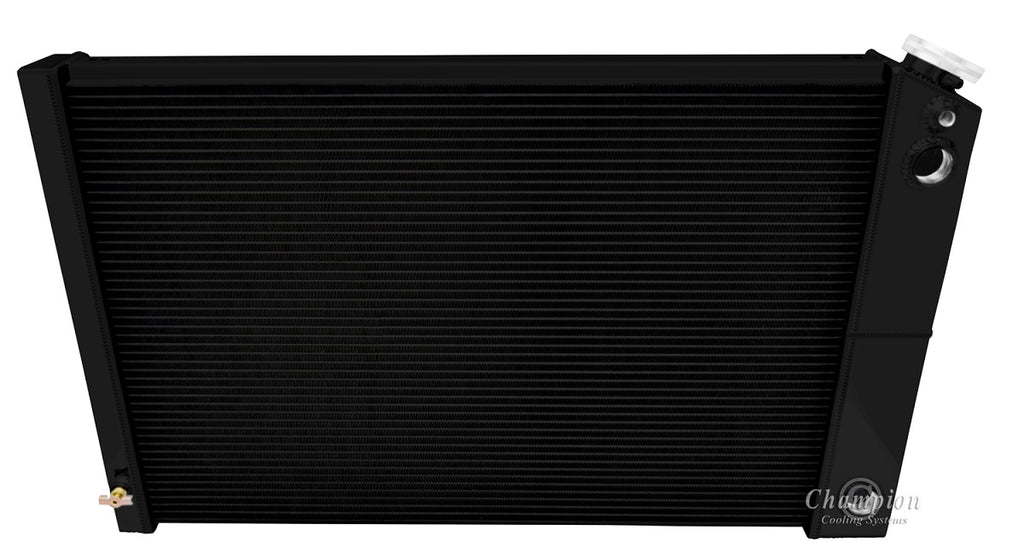

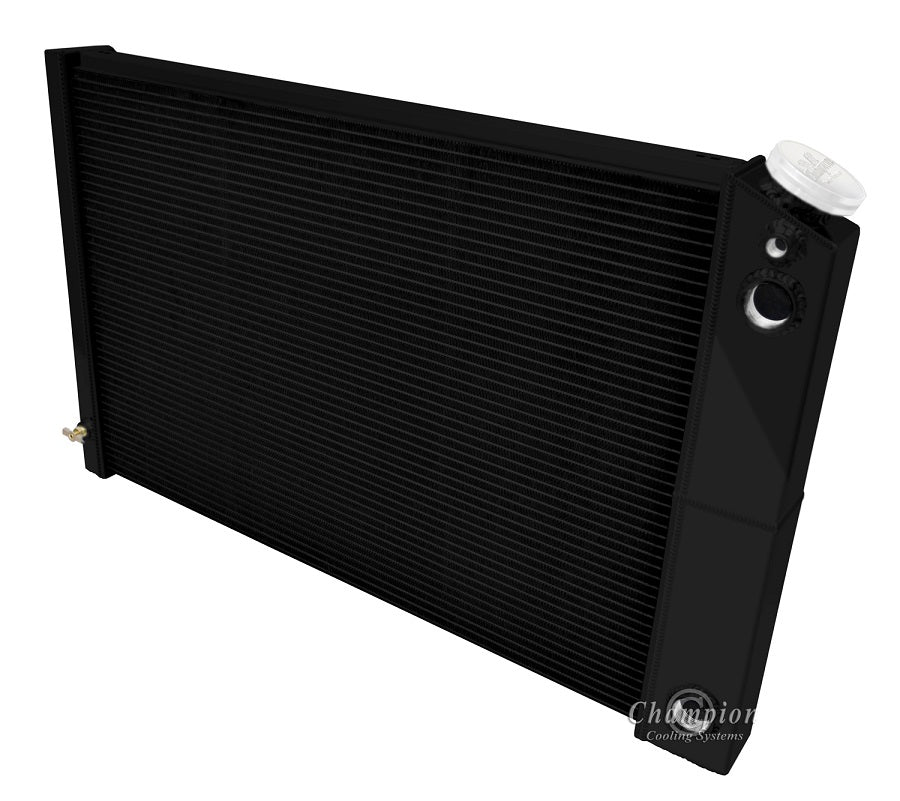

CC716DP-BLK-716FS1-BLK Dual Pass Combo (Black)

Champion All Aluminum Radiator (Black) PLUS
Aluminum Shroud (Black) & (2) 14" Pro-Series Fans
Dual Pass / LS Conversions
You MUST Choose your Outlet sizes -->
Call for AN16 or AN20 Outlets
Verify clearance for electric fan
Total thickness: 6.25" to fan motor
3-Row Core | Cools up to 1000hp

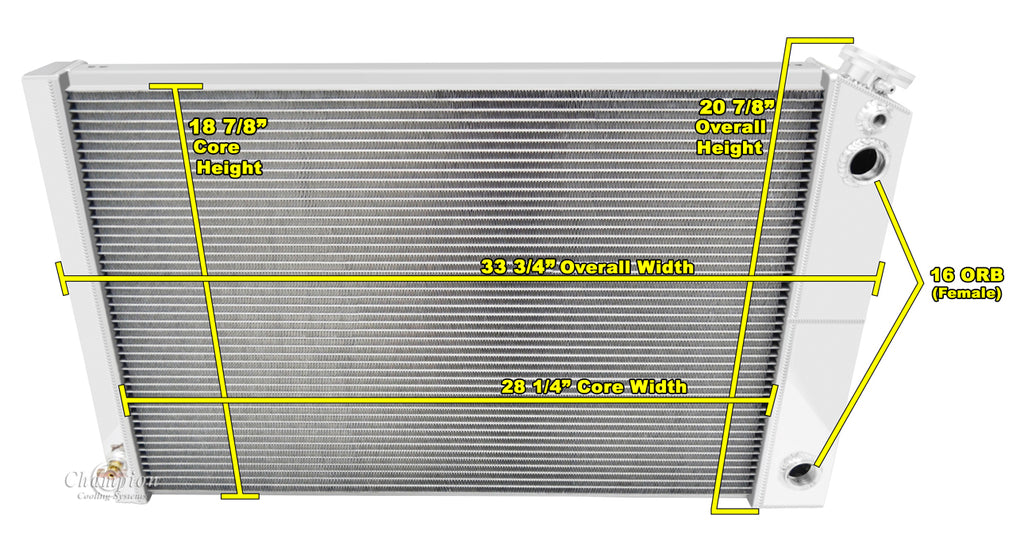

Radiator Dimensions:
Total: 20.63" tall (21.25" with cap) x 33.25" wide
Core: 19" tall x 28.25" wide x 2.5" thick
Inlet: (Choice your size below) passenger side
Outlet: (Choice your size below) passenger side
Tanks: 2.75" thick
Tubes: 0.63" thick

Saddle Mounted

16 lb. Billet Radiator Cap included
Steam Port with 1/4" barbed fitting and plug included
