CC716-BLK 3 Row 19" Tall Core Black

Champion All Aluminum Radiator (Black)
3-Row Core | Cools up to 900hp

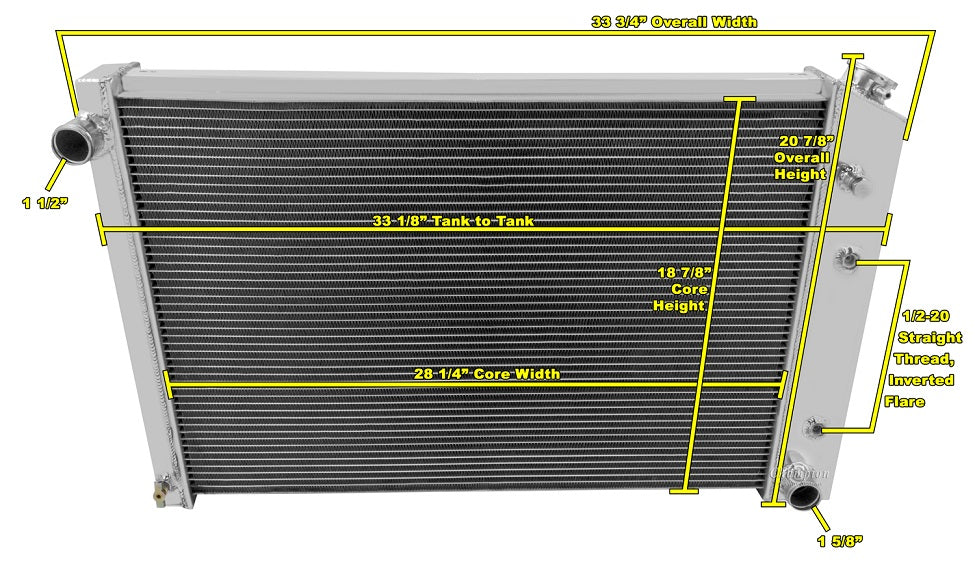

Radiator Dimensions
Total: 20.55" (21.13" with cap) x 33.13" wide
Core: 19" tall x 28.25" wide x 2.25" thick
Tanks: 2.5" thick
Inlet: 1.5" driver side
Outlet: 1.5" passenger side
Tubes: 0.63" thick

Saddle Mounted

13 lb. Radiator Cap included
Transmission Cooler Included (1/2" -20 STRAIGHT THREAD)
Aluminum shroud is also available (sold separately)

When using electric fans (sold separately):
Two 12" or 14" Electric fans recommended for this core size

Click Here For Manual Transmissions
