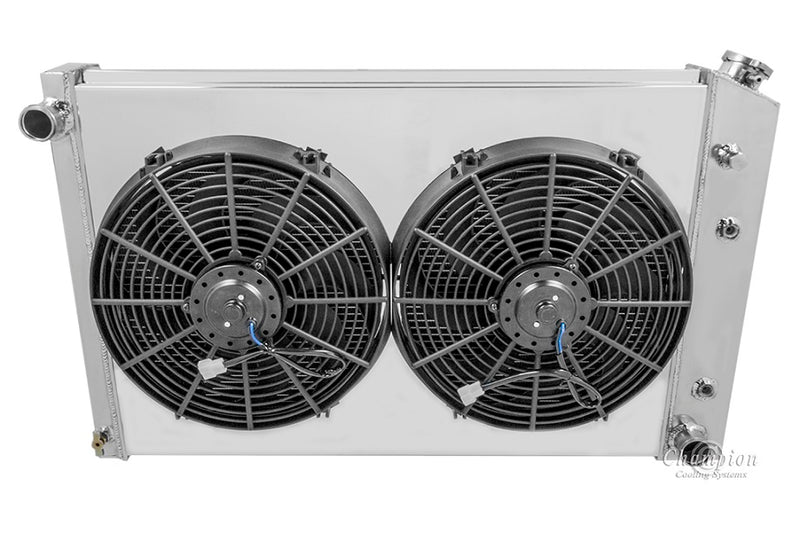

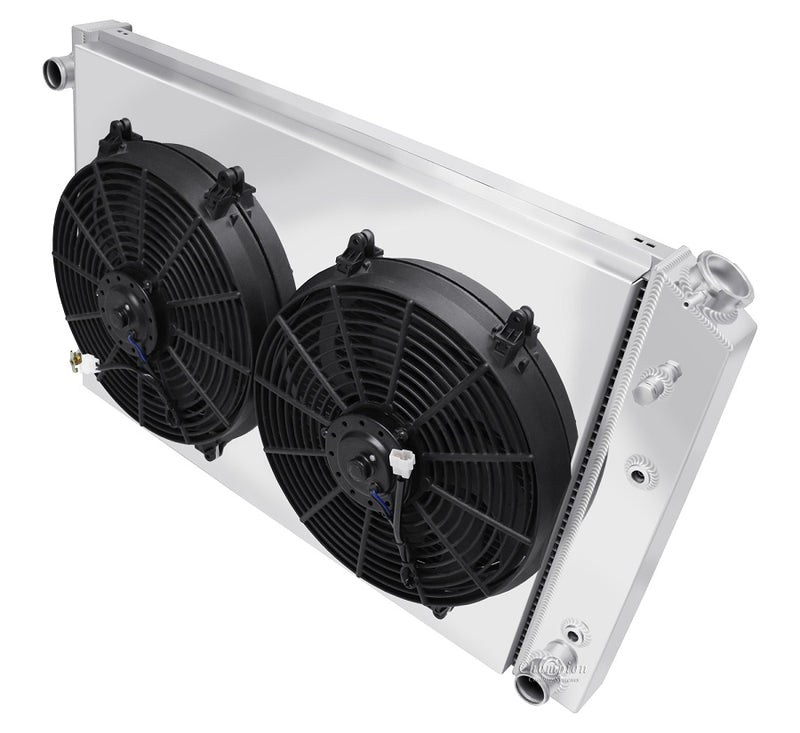

CC716-716FS14 3 Row Combo 19" Tall Core

Champion All Aluminum Radiator PLUS
Aluminum Shroud & Two 14" Pro-Series Fans
Verify clearance for electric fan
Total thickness: 6.25" to fan motor
3 Row Core | Cools 900hp

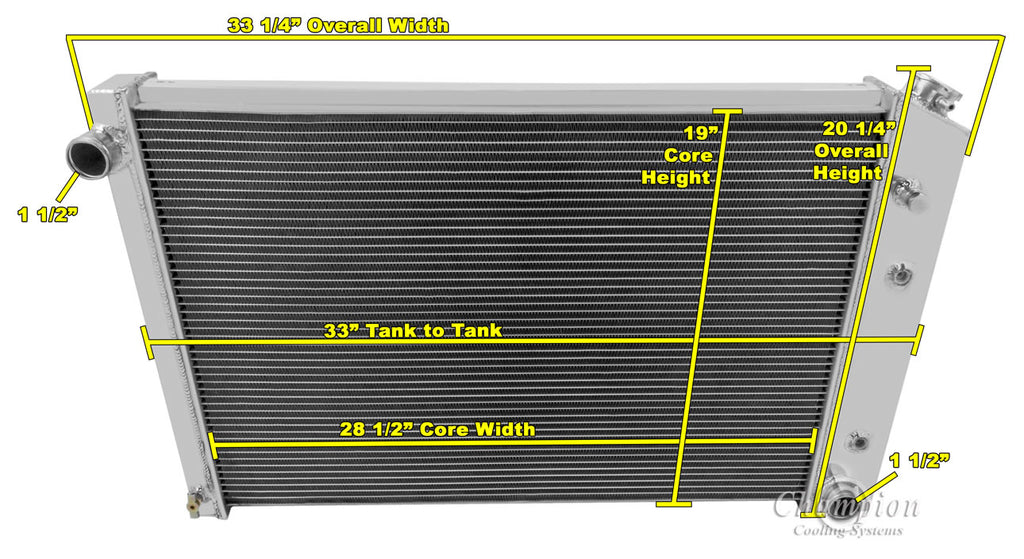

Radiator Dimensions:
Total: 33” wide (with brackets) x 20.5” tall (21.13” incl cap) x 6.5" deep (with fans)
Core: 28.25" wide x 19” tall x 2.25" thick
Inlet: 1.5” driver side
Outlet: 1.5” passenger side
Tanks: 2.5” thick
Tubes: 0.63" thick

13 lb. Radiator Cap included
Transmission Cooler Included (1/2" -20 STRAIGHT THREAD)

Saddle Mounted

4.75" thick in the center around the edge of the fans for water pump
