CC7072B-7072FS16SP 3 Row Combo

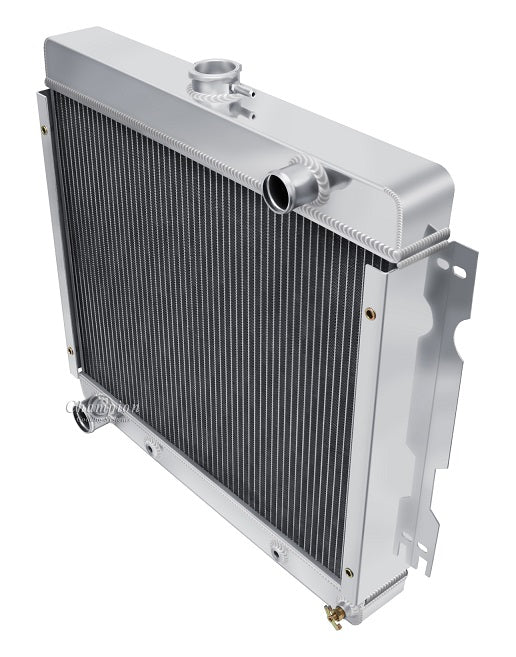

Champion All Aluminum Radiator

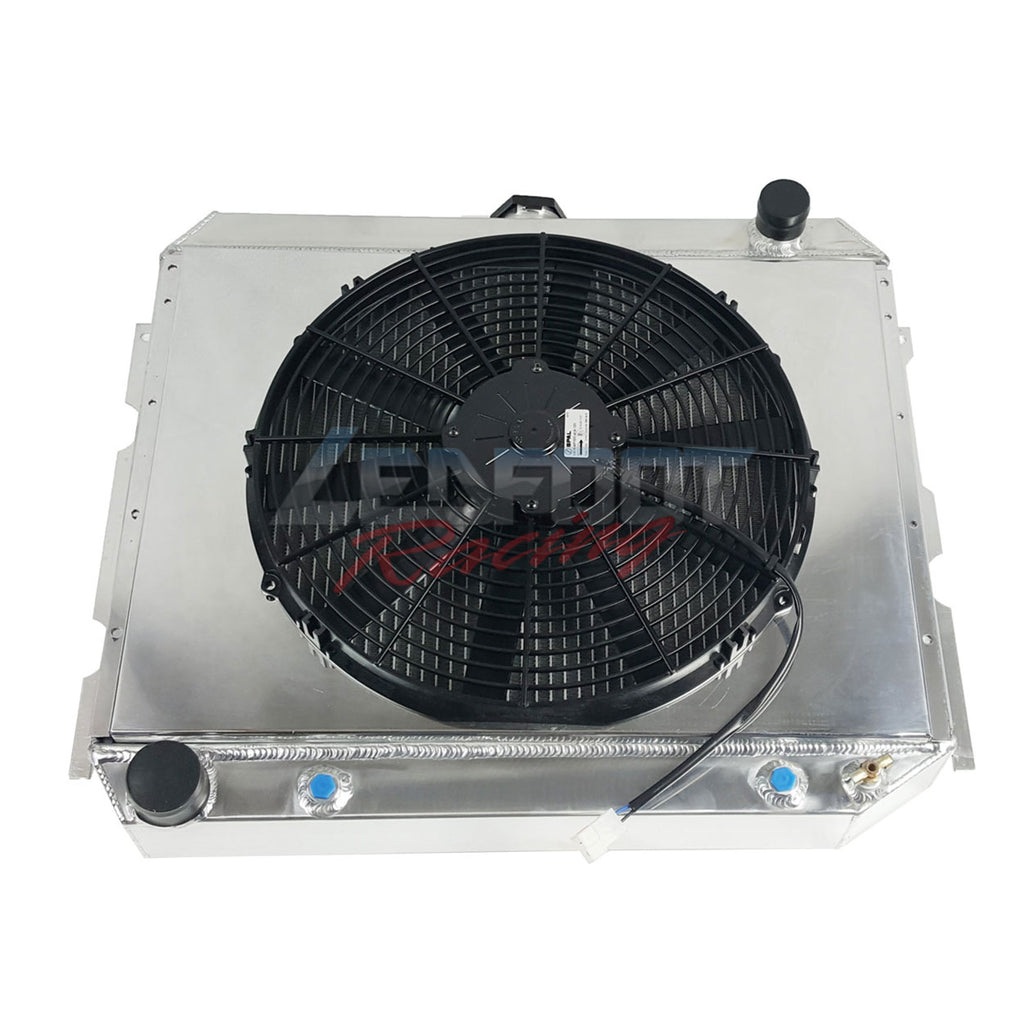

Ledfoot Racing Shroud & SPAL-1516 Medium Profile 16" Fan

3-Row Core | Cools up to 550hp

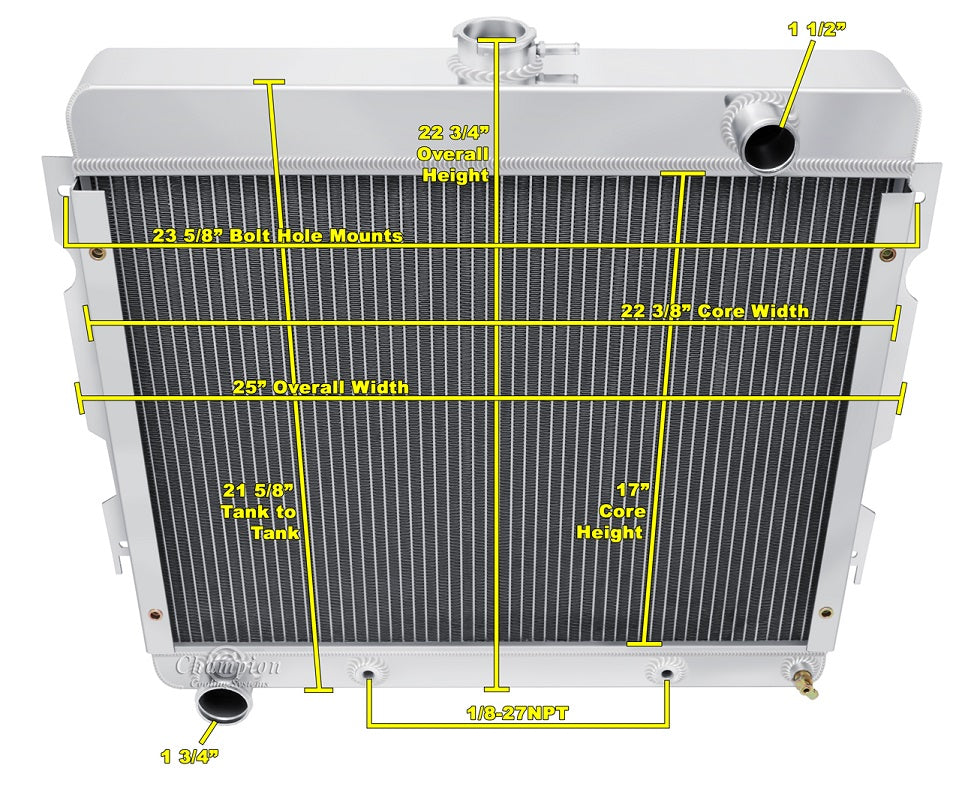

Radiator Dimensions:
Total: 22.88" tall x 25" wide (with brackets)
Core: 17" tall x 22.5" wide x 2.5" thick
Inlet: 1.5" passenger side
Outlet: 1.75" driver side
Tanks: 3" thick
Tubes: 0.75" thick
Total Thickness: 6.25" to back of fan

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler included: (1/8-27NPT)
