CC7072B 3 Row

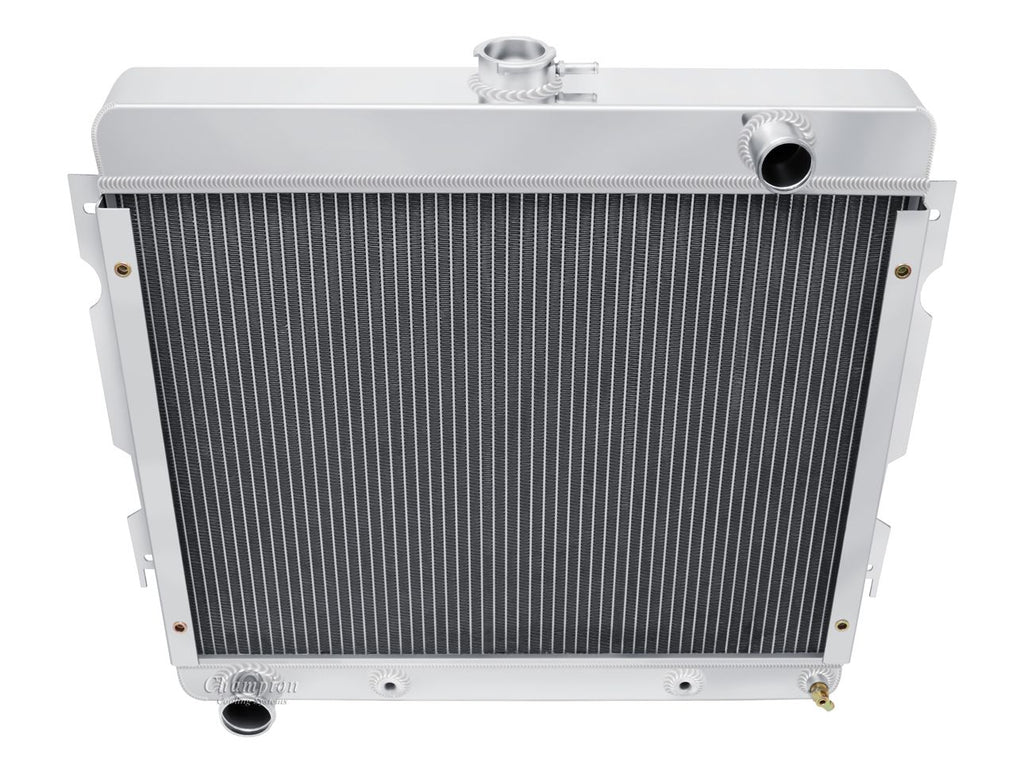

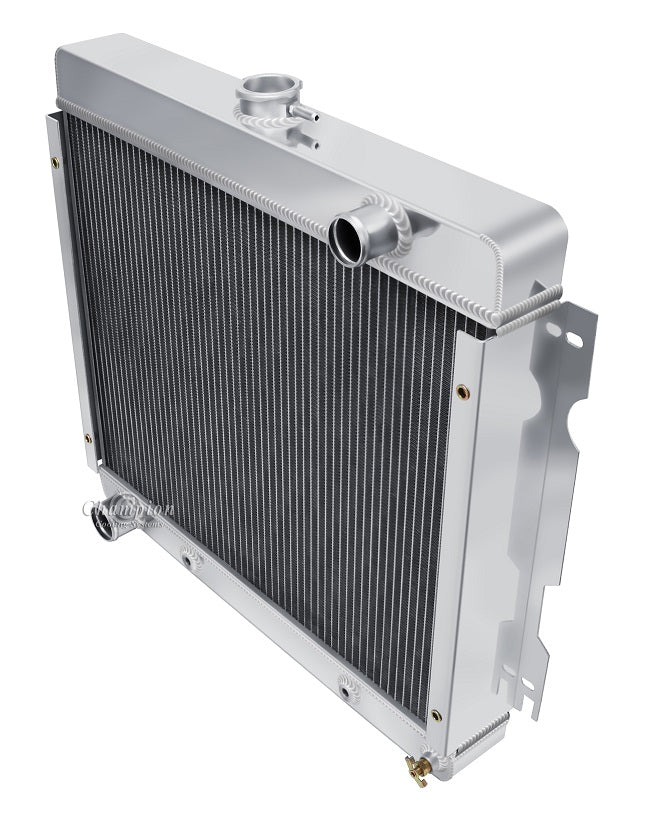

Champion All Aluminum Radiator
3-Row Core | Cools up to 600hp

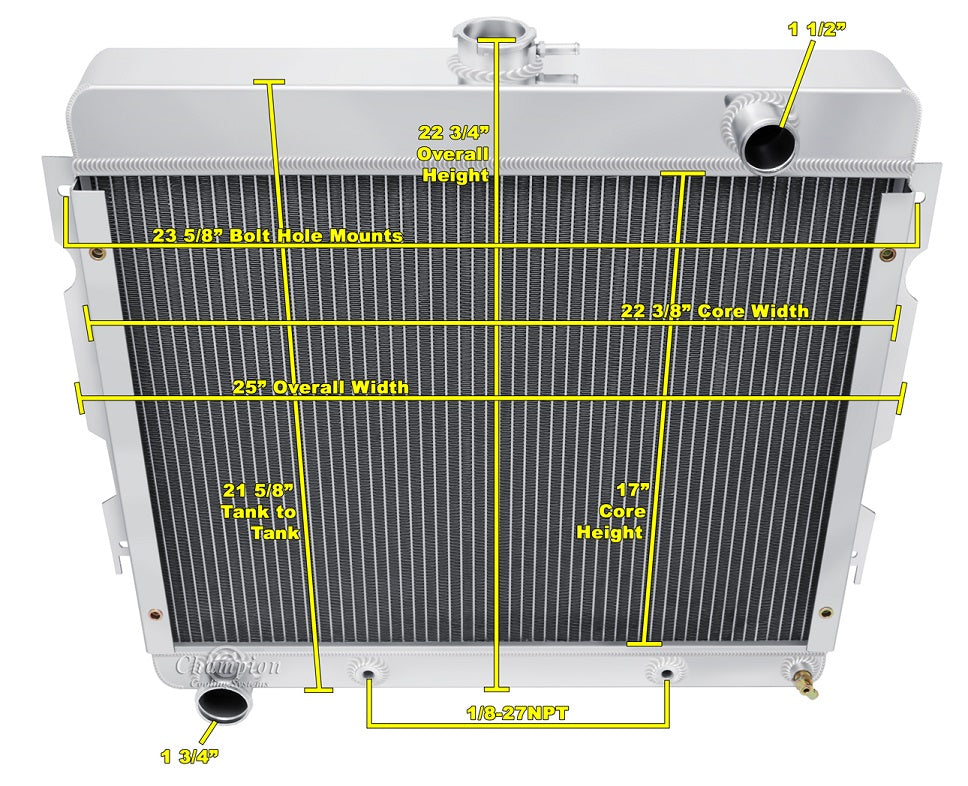

Radiator Dimensions:
Total: 22.75" tall x 25" wide (with brackets)
Core: 17" tall x 22.38" wide x 2.5" thick
Inlet: 1.5" passenger side
Outlet: 1.75" driver side
Tanks: 3" thick
Tubes: 0.75" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/8-27NPT)

When using electric fans:
One 16" or 2-10" Electric fan(s) recommended for this core size (sold separately)
