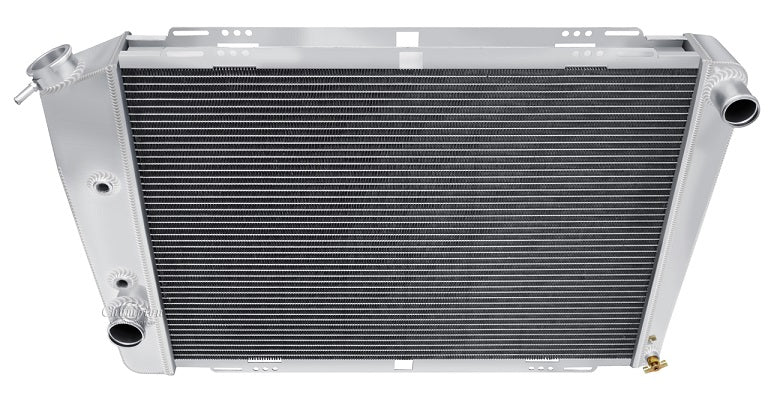

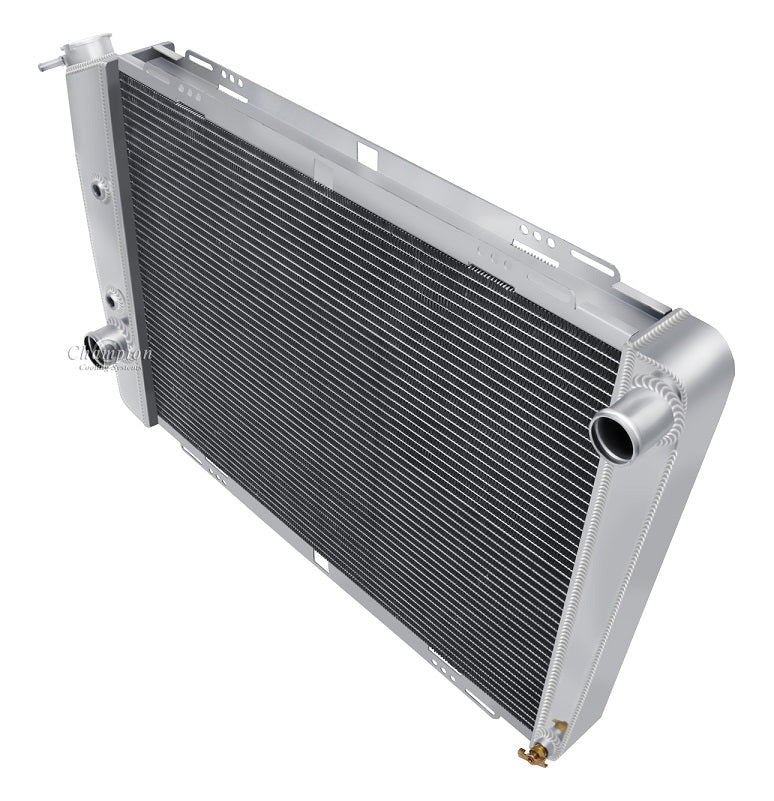

CC6869 3 Row

All Aluminum Champion Radiator
3-Row Core | Cools up to 700hp

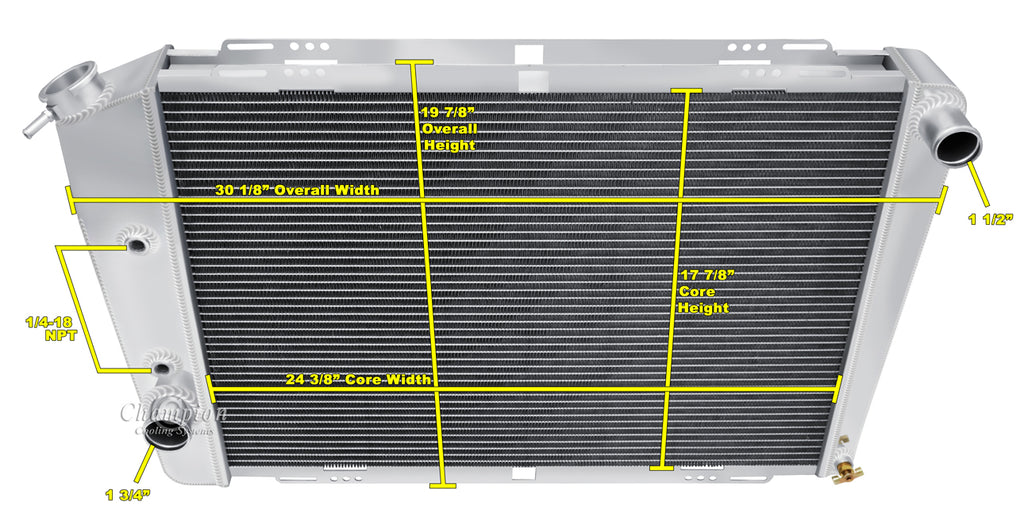

Radiator Dimensions:
Total: 19.63" tall (with cap) x 30.13" wide
Core: 17.83" tall x 24.38” wide x 2.25" thick
Inlet: 1.5" passenger side
Outlet: 1.75" driver side
Tanks: Upper 3.25" thick
Lower 2.63" thick
Tubes: 0.63" thick

Saddle Mounted

Transmission Cooler included (1/4-18NPT)
Aluminum Shroud is also Available (sold separately)

When using electric fans:
Two 12" Electric fans recommended for this core size (sold separately)
