CC67GL 3 Row

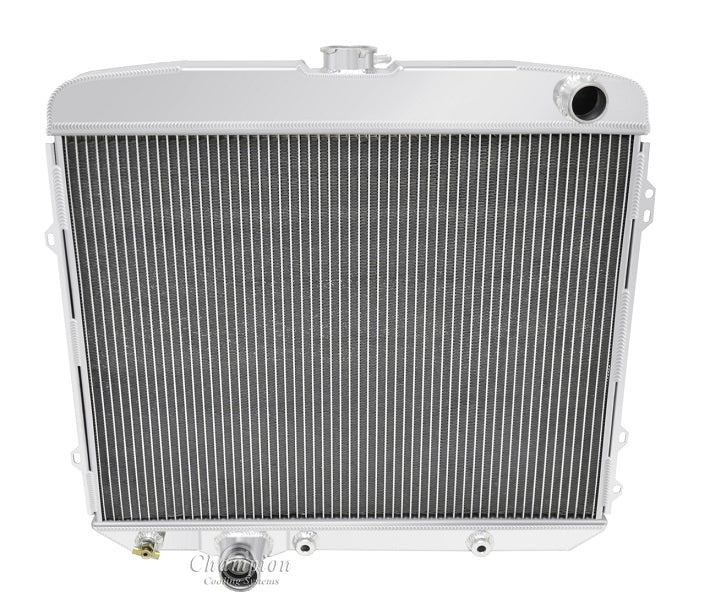

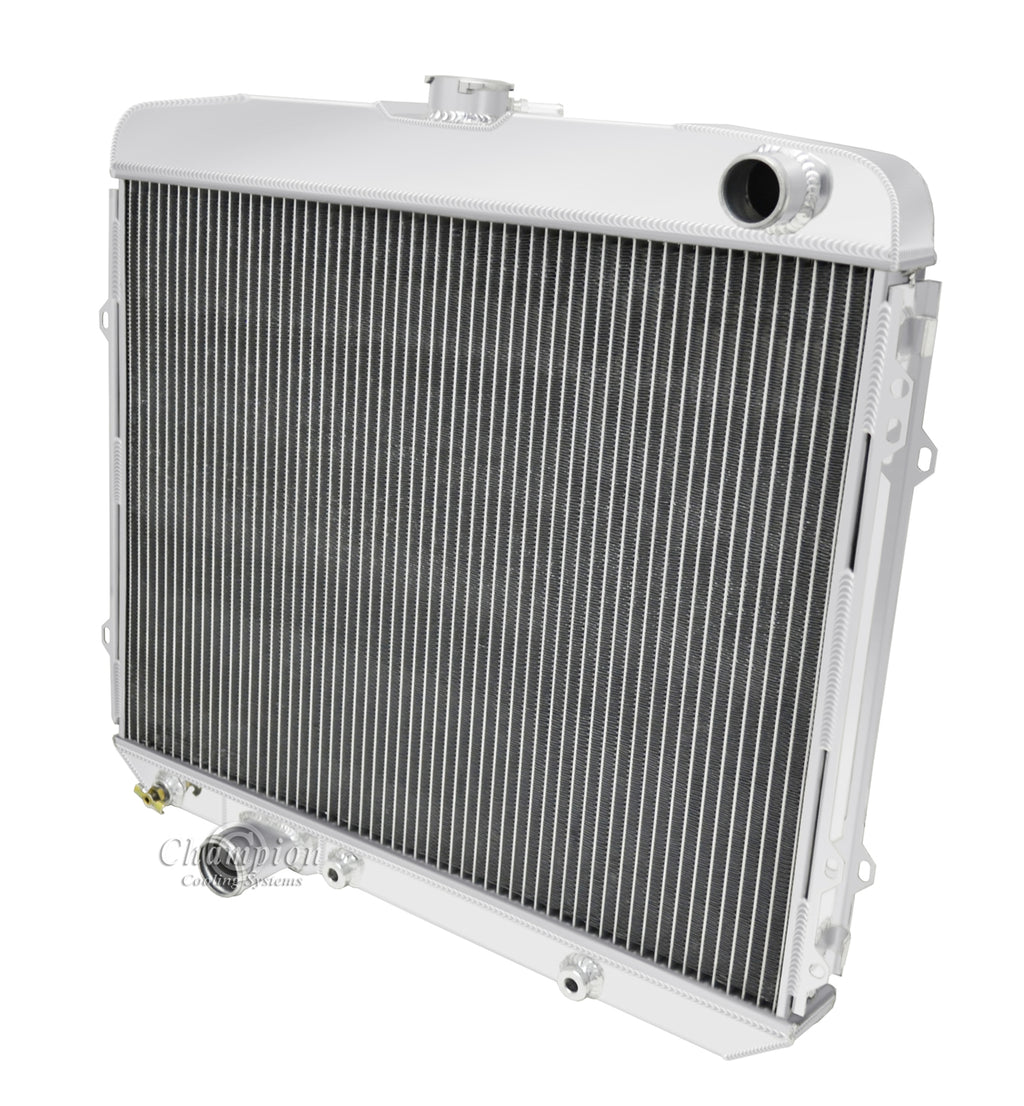

Champion All Aluminum Radiator
3-Row Core | Cools up to 650hp

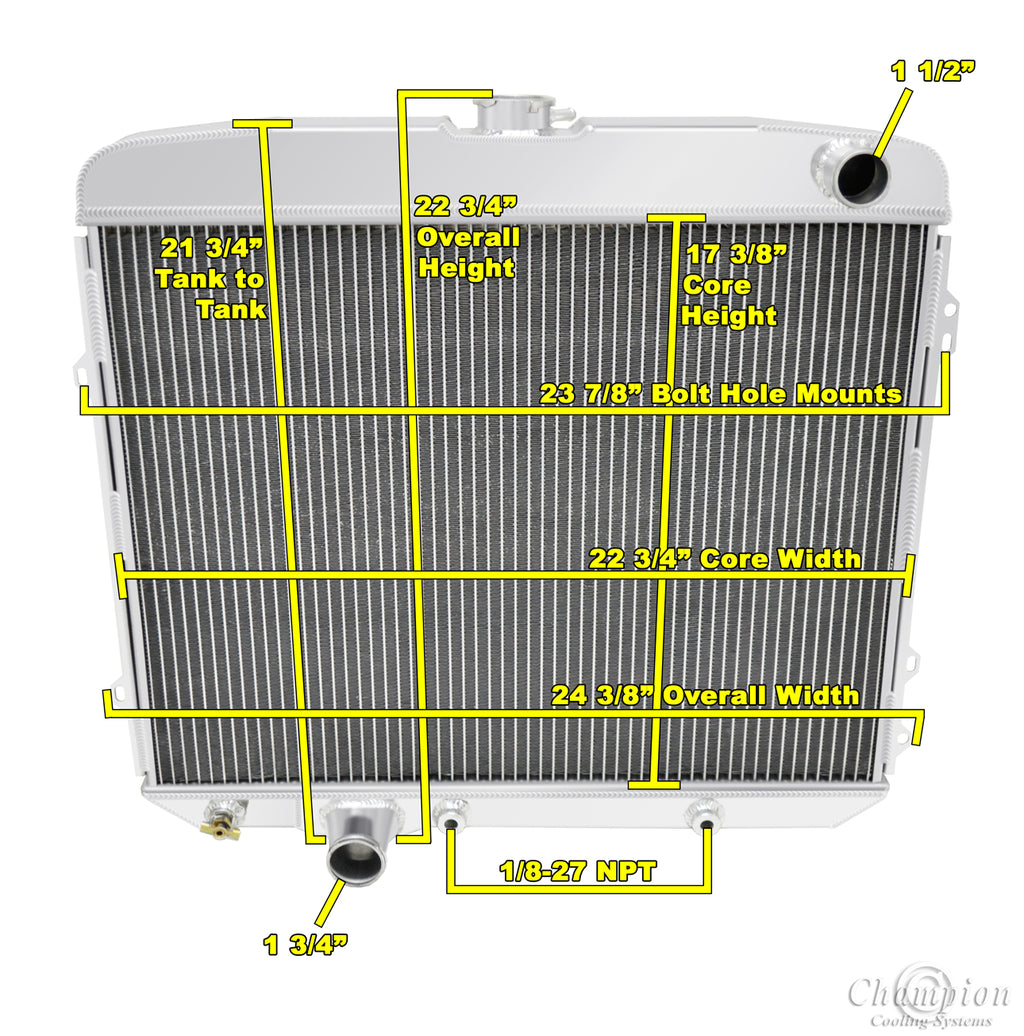

Radiator Dimensions:
Total: 22.75" x 24.375" wide
Core: 17.375" tall x 22.75" wide x 2" thick
Inlet: 1.5" passenger
Outlet: 1.75" driver
Tanks: 2.375" thick
Tubes: 0.63" thick

Saddle Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/8" 27npt)

When using electric fans:
One 16" fan recommended for this core size (sold separately)
