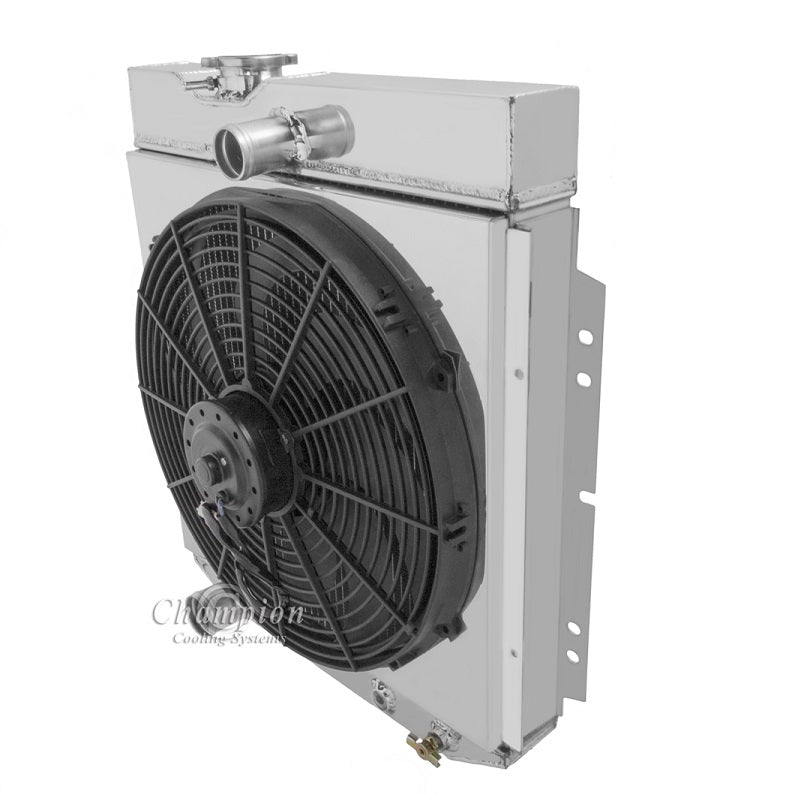

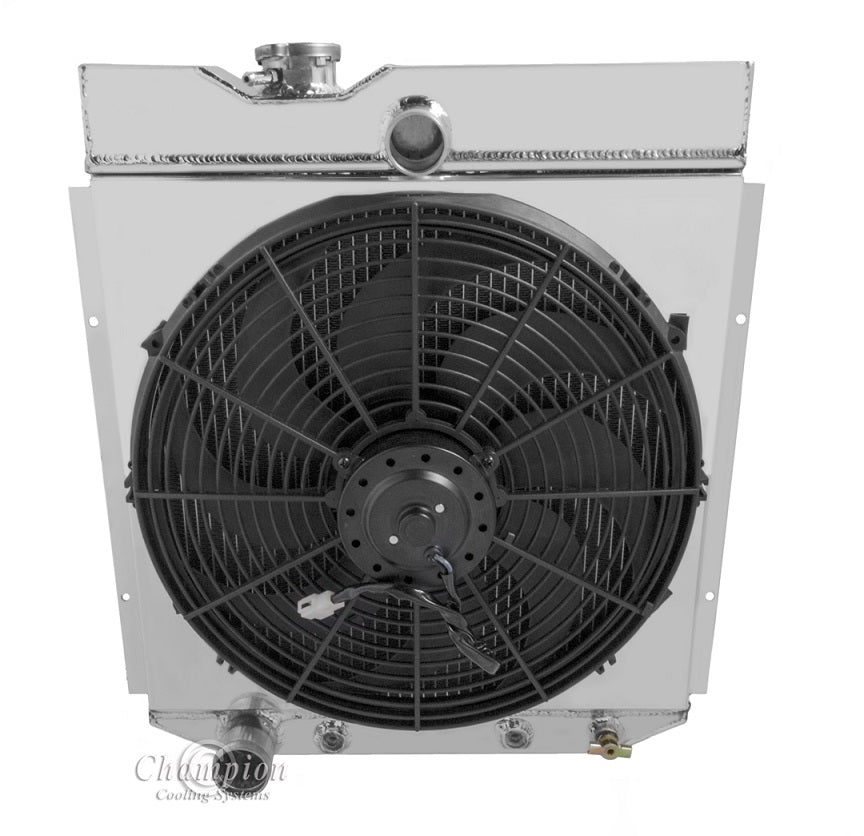

CC6677-6677FS16SP 3 Row Combo

Champion All Aluminum Radiator
Ledfoot Racing Shroud & 16" SPAL Medium Profile Fan
The SPAL fan solves the thickness issues of the Pro Series fan
Please confirm your available room to the Total Thickness below
3-Row Core | Cools up to 450hp

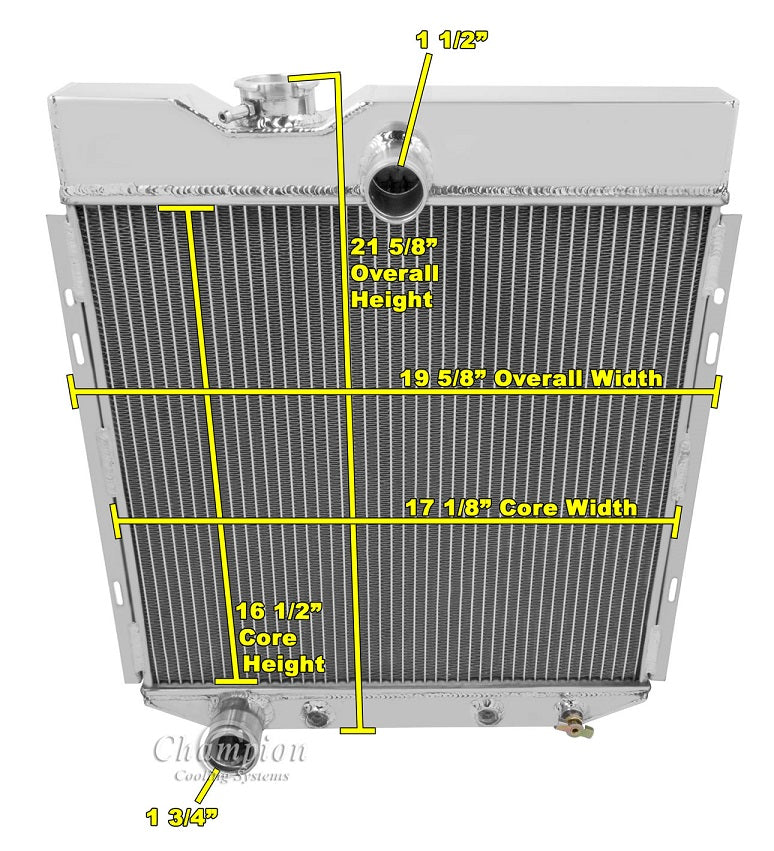

Radiator Dimensions:
Total: 21" tall (21.5" with cap) x 19.63" wide (including brackets)
Core: 16.5" tall x 17" wide x 2" thick
Inlet: 1.5" Center
Outlet: 1.75" driver side
Tanks: 2.75" thick
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/8-27npt)
