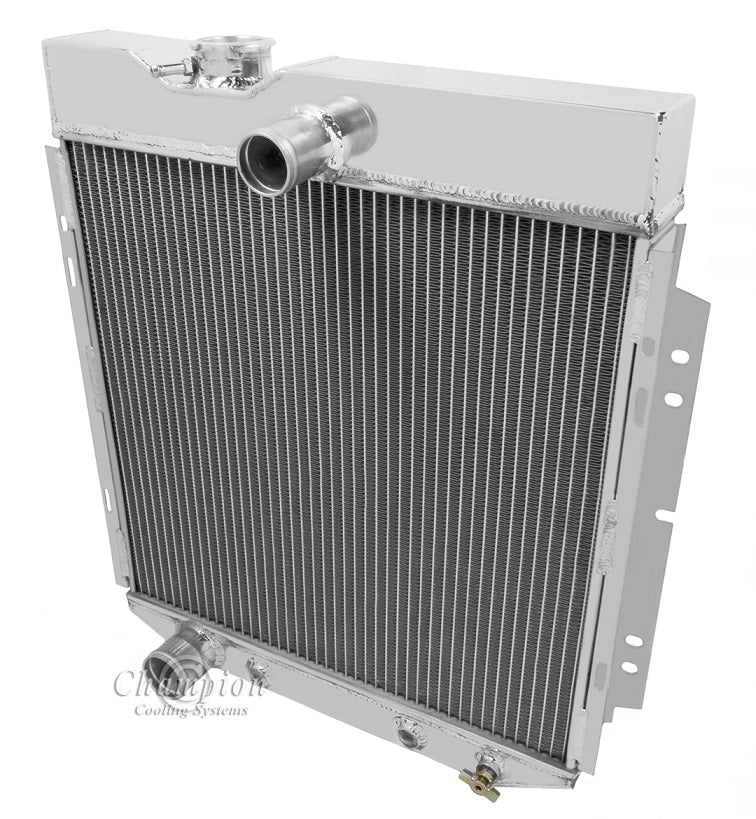

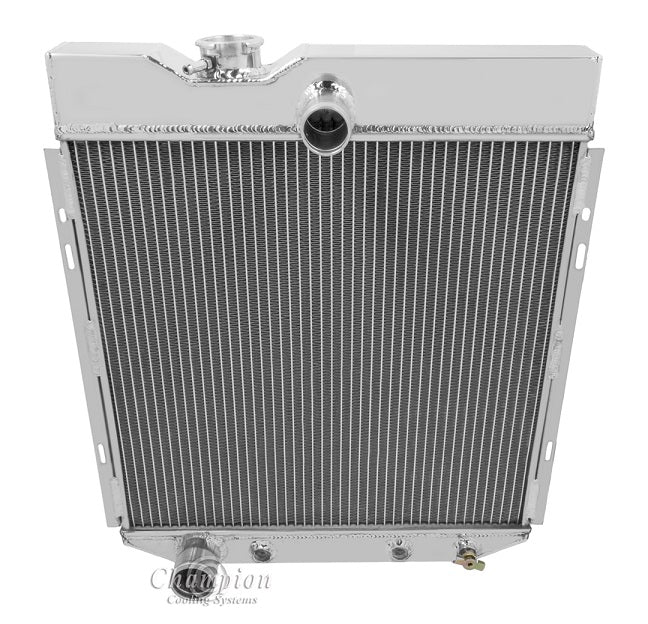

CC6677 3 Row

Champion All Aluminum Radiator
3-Row Core | Cools up to 450hp

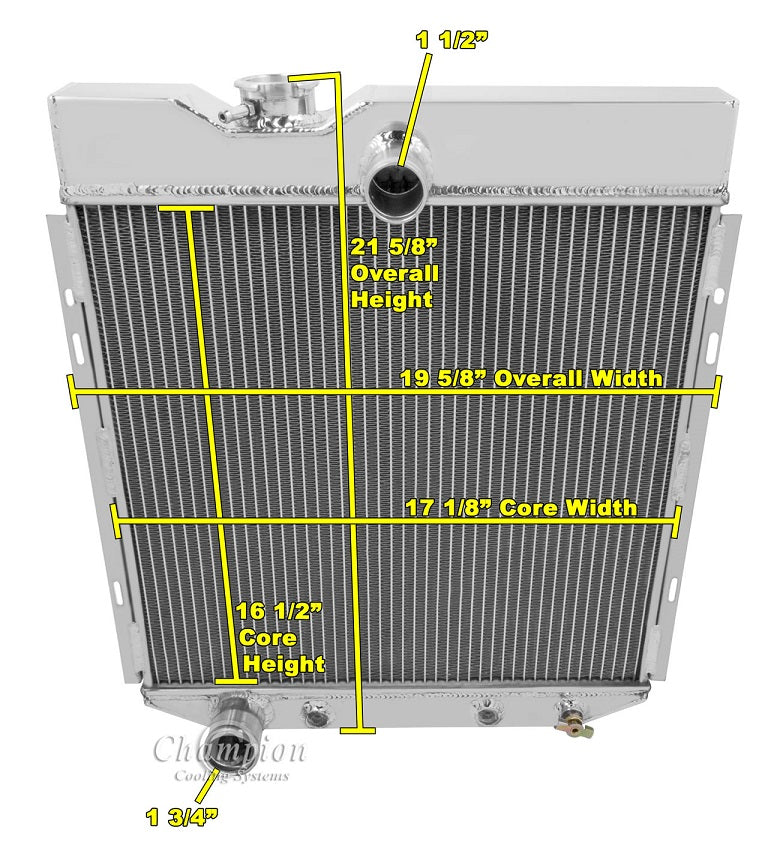

Radiator Dimensions:
Total: 21" tall (21.5" with cap) x 19.63" wide (including brackets)
Core: 16.5" tall x 17" wide x 2" thick
Inlet: 1.5" Center
Outlet: 1.75" driver side
Tanks: 2.75" thick
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/8-27npt)
Aluminum Fan Shroud is also available

When using electric fans:
One 16" fan recommended for this core size (sold separately)
Fan shipping is FREE when purchased with a radiator

note: If buying our 16" fan make sure you have room for the 3.5" thickness
