CC6671 3 Row

Champion All Aluminum Radiator
3-Row Core | Cools up to 500hp

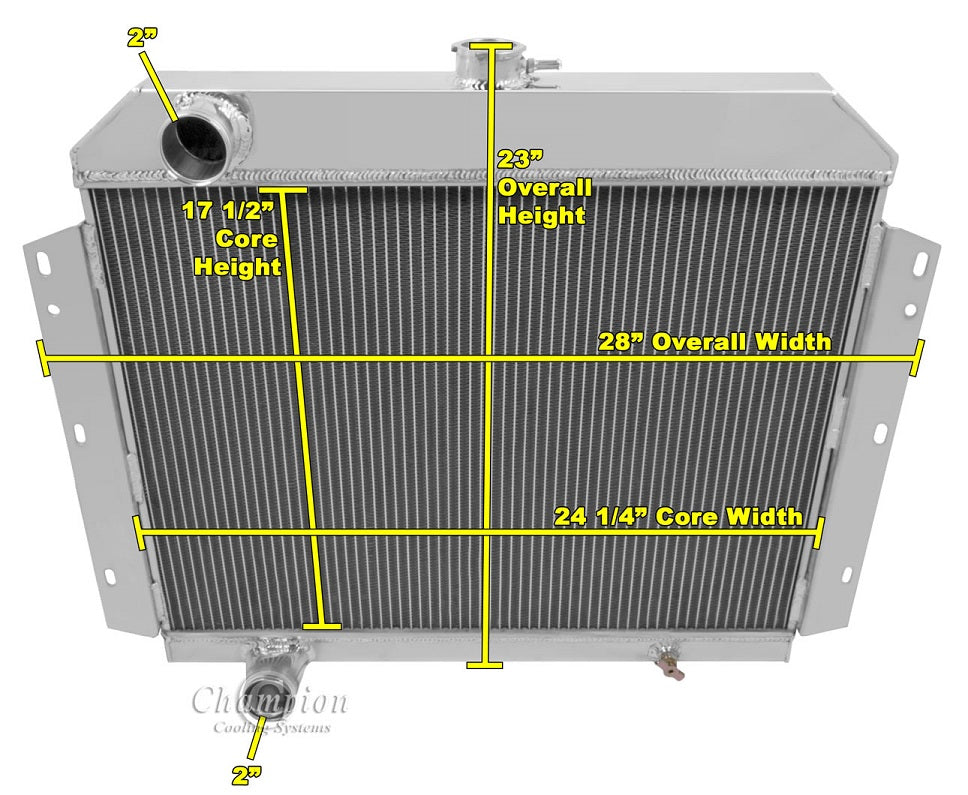

Radiator Dimensions:
Total: 23" tall (with cap) x 28" wide (with brackets) x 2.5" thick
Core: 17.5" tall x 24.25" wide x 2" thick
Inlet: 2" driver side
Outlet: 2" driver side
Tanks: 2.5" thick
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler NOT included
