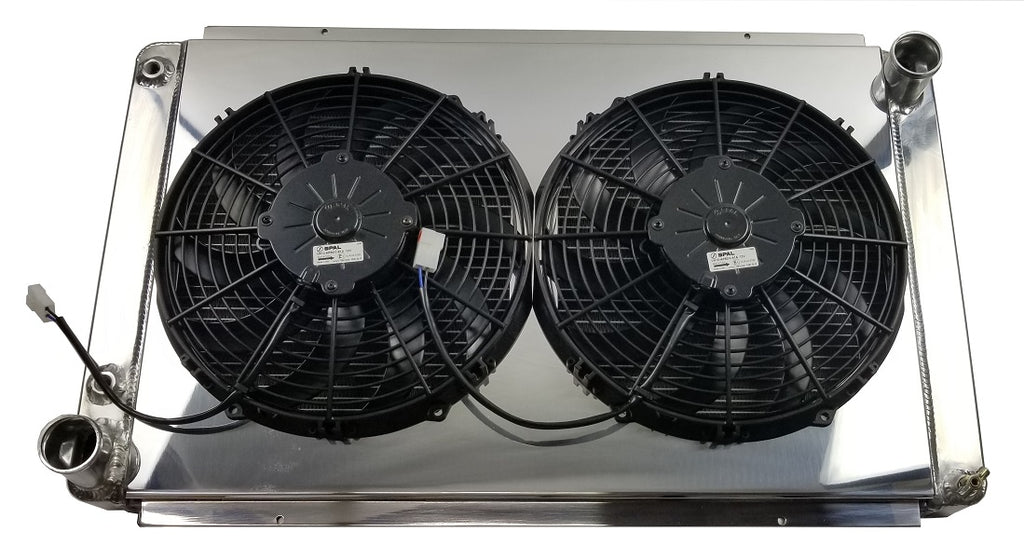

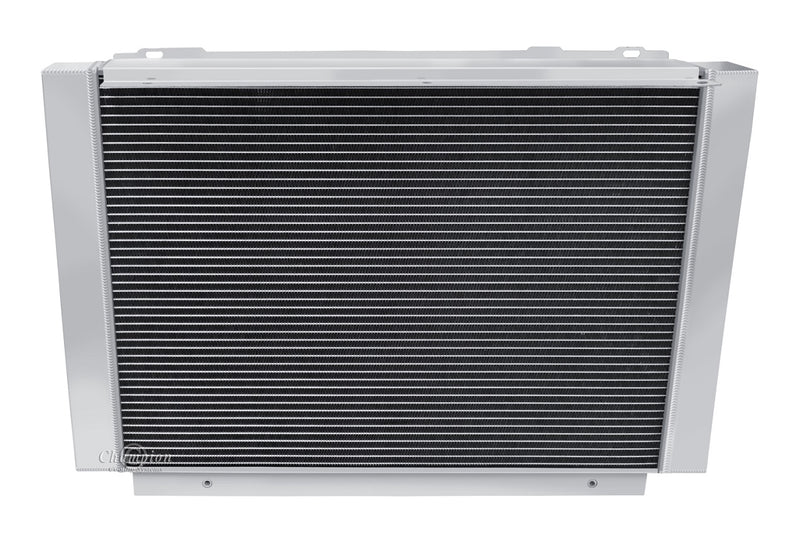

CC6667-6667FS12CSP 3 Row Combo

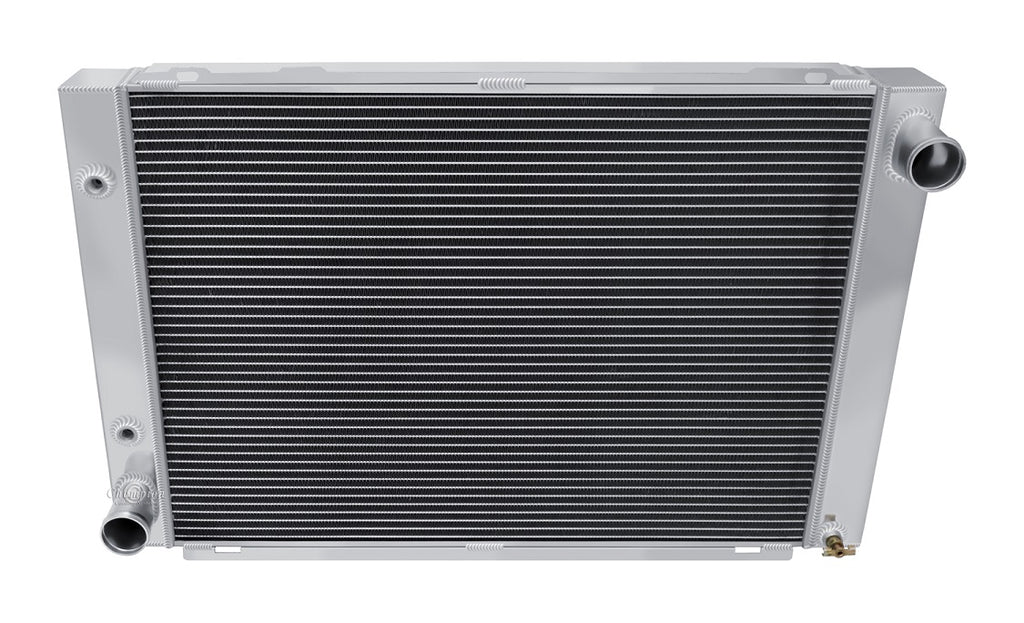

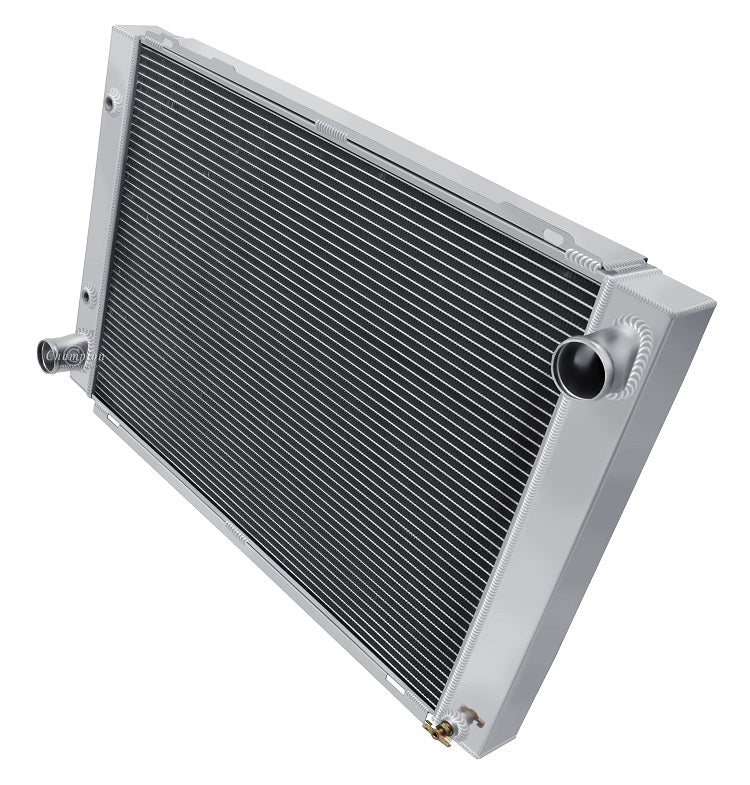

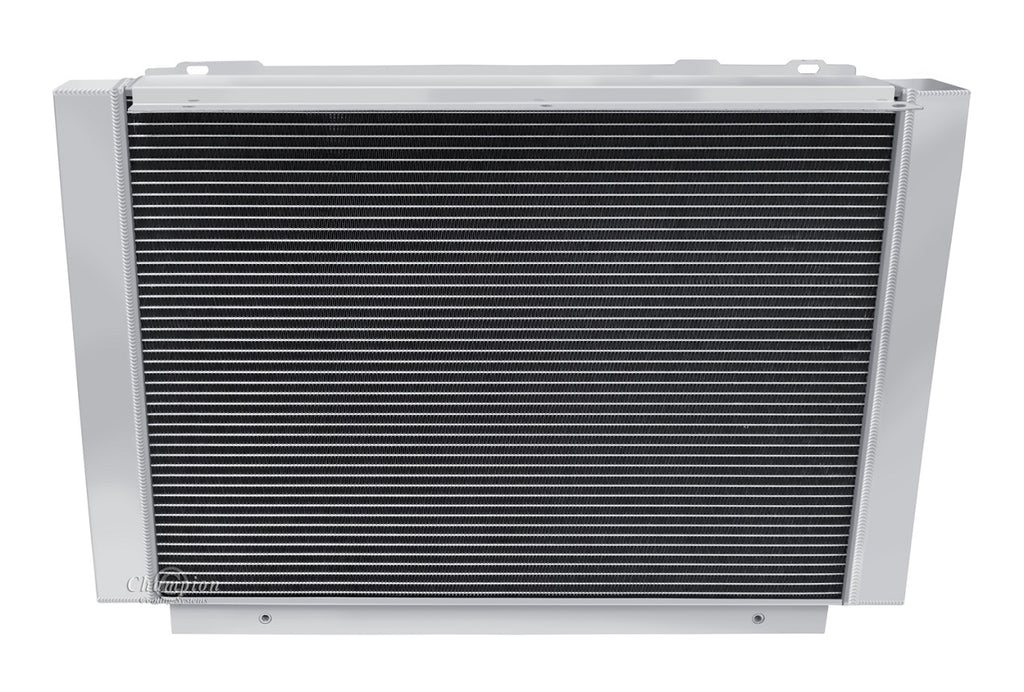

All Aluminum Champion Radiator
3-Row Core | Cools up to 700hp

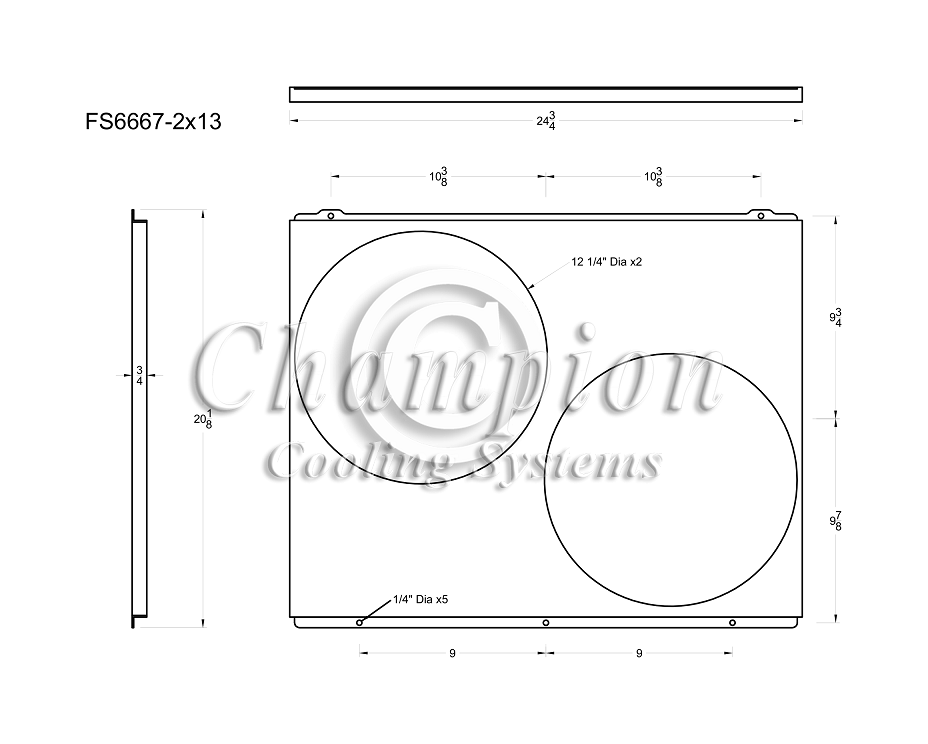

Note: Photo of drawing is correct for shroud

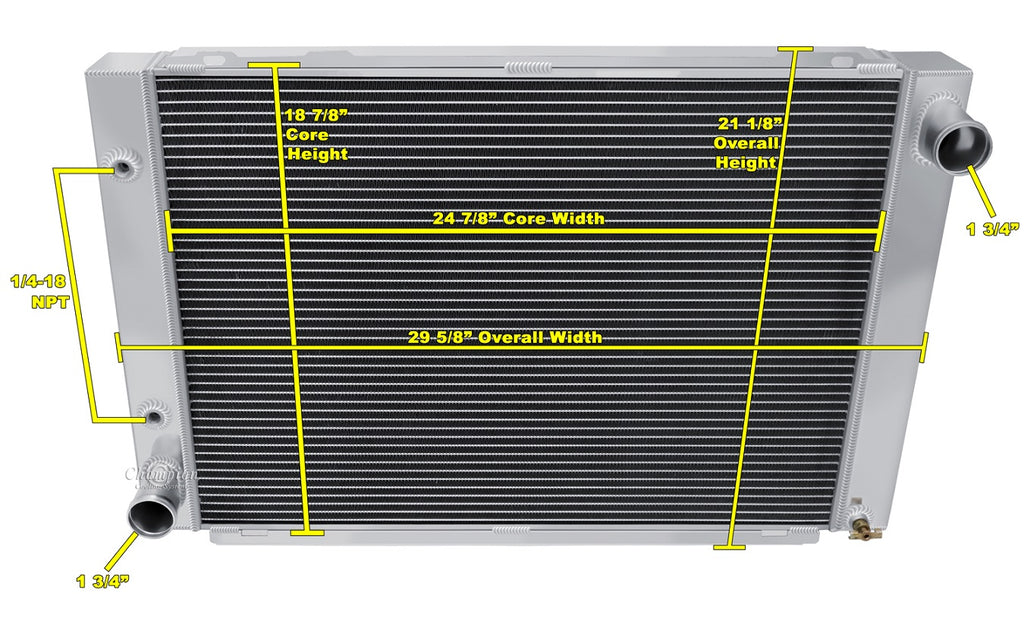

Radiator Dimensions:
Total: 21.13" tall x 29.63" wide
Core: 18.83" tall x 24.83” wide x 2.25" thick
Inlet: 1.75" passenger side
Outlet: 1.75" driver side
Tanks: 2.5" thick
Tubes: 0.63" thick

Saddle Mounted

Transmission Cooler included (1/4-18NPT)
