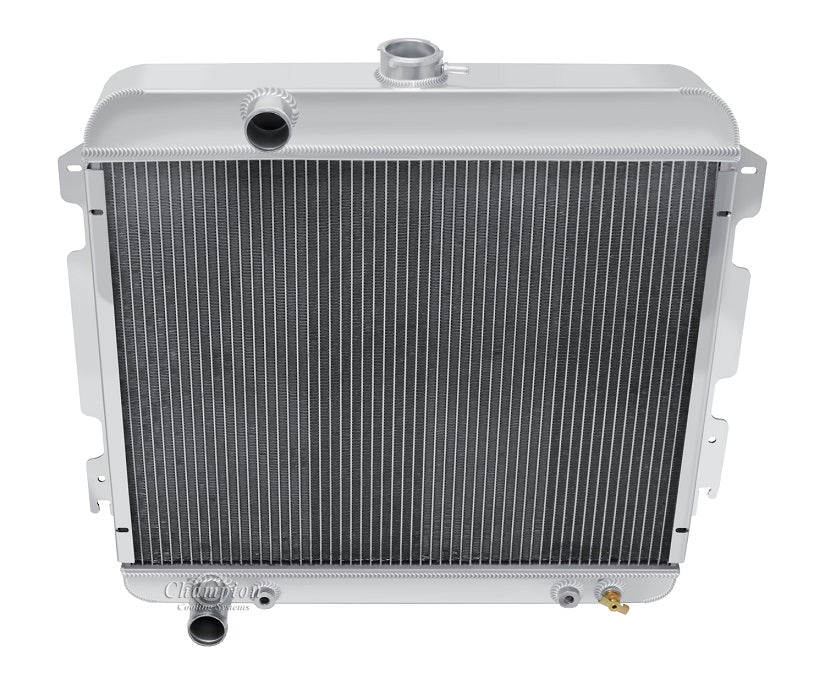

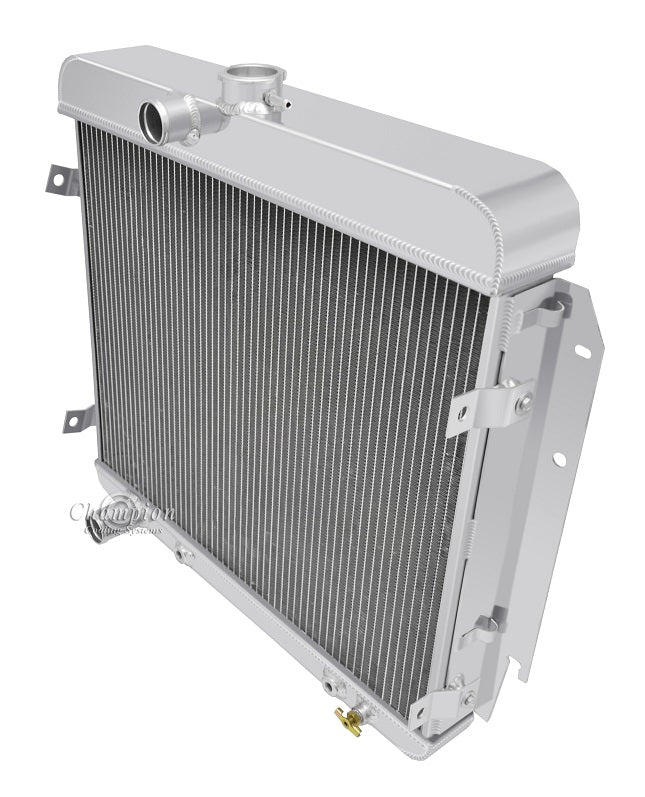

CC66 3 Row

All Aluminum Champion Radiator
3-Row Core | Cools up to 500hp

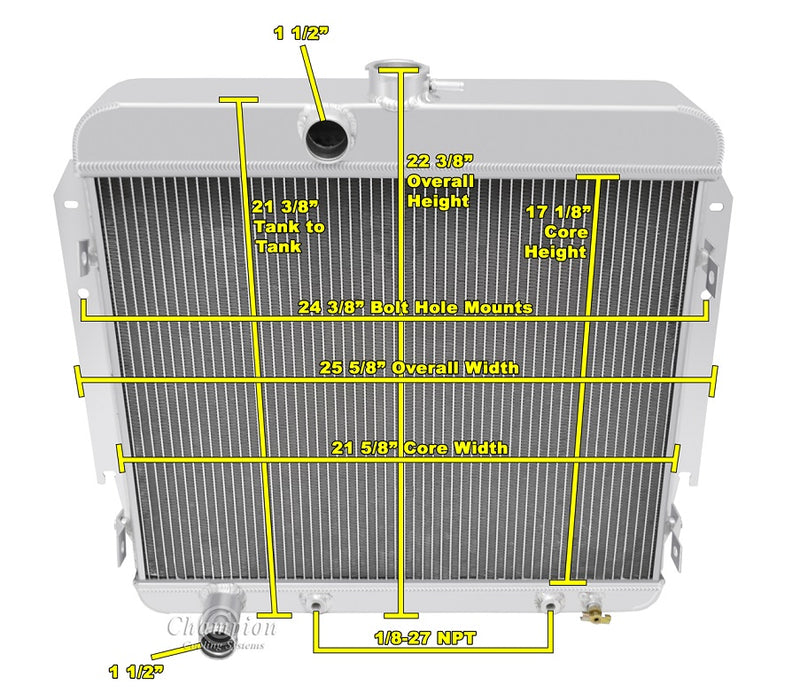

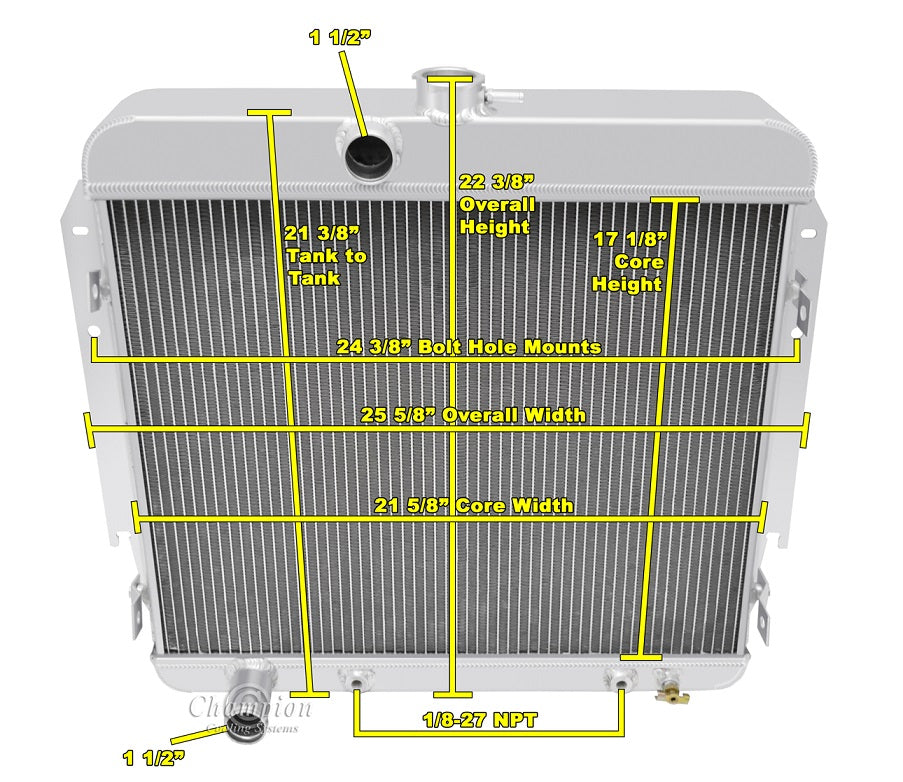

CC66 Radiator Dimensions:
Total: 22.38" tall (with cap) x 25.63" wide (with brackets)
Core: 17.5" tall x 21.63" wide x 2." thick
Inlet: 1.5" driver
Outlet: 1.5" driver
Tanks: 2.5" thick
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/8" 27npt)

When using electric fans:
One 16" Electric fan recommended for this core size (sold separately)
