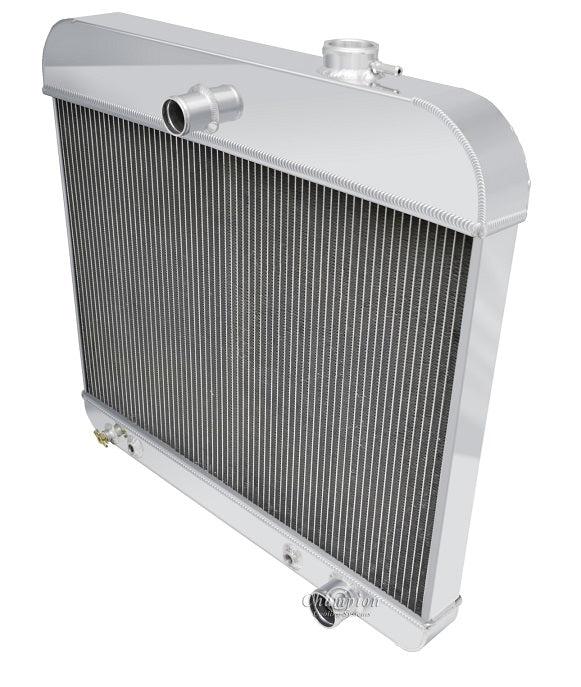

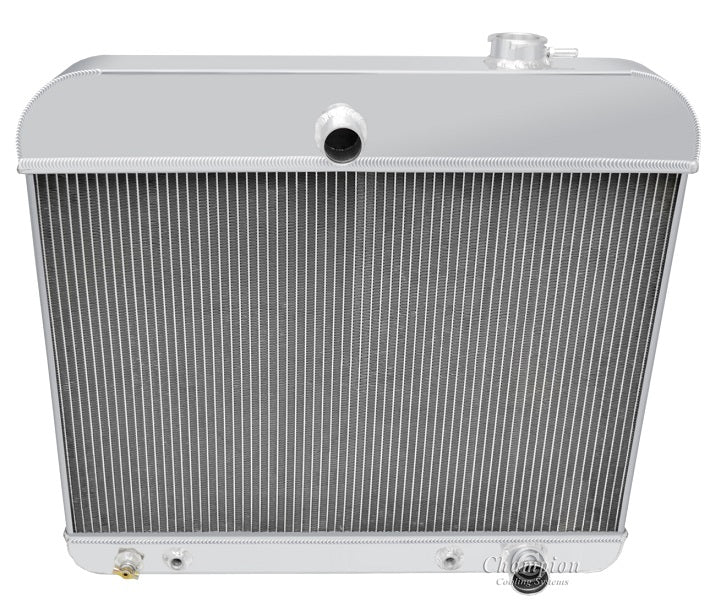

CC65GMC 3 Row

Champion All Aluminum Radiator
3-Row Core | Cools up to 650hp

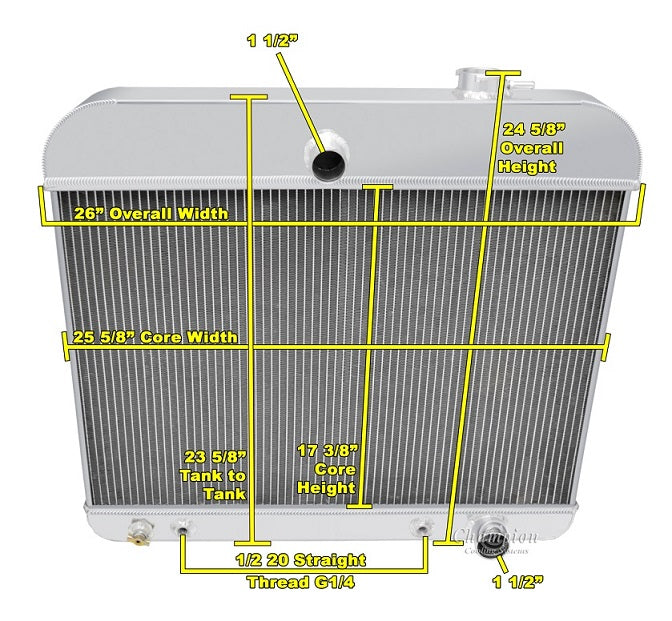

Radiators Dimensions:
Total: 24.63” tall (with cap) x 26" wide
Core: 17.38" tall x 25.63" wide x 2" thick
Inlet: 1.5" center
Outlet: 1.5" passenger side
Tanks: Upper 2.75" thick, Lower 2.5" thick
Tubes: 0.63" thick

Saddle Mounted

13 lb. Radiator Cap included
Transmission Cooler Included (1/2-20 Straight Thread, Inverted Flare )

When using electric fans:
One 16" Electric fan recommended for this core size (sold separately)
