CC6465 3 Row

Champion All Aluminum Radiator
3-Row Core | Cools up to 650hp

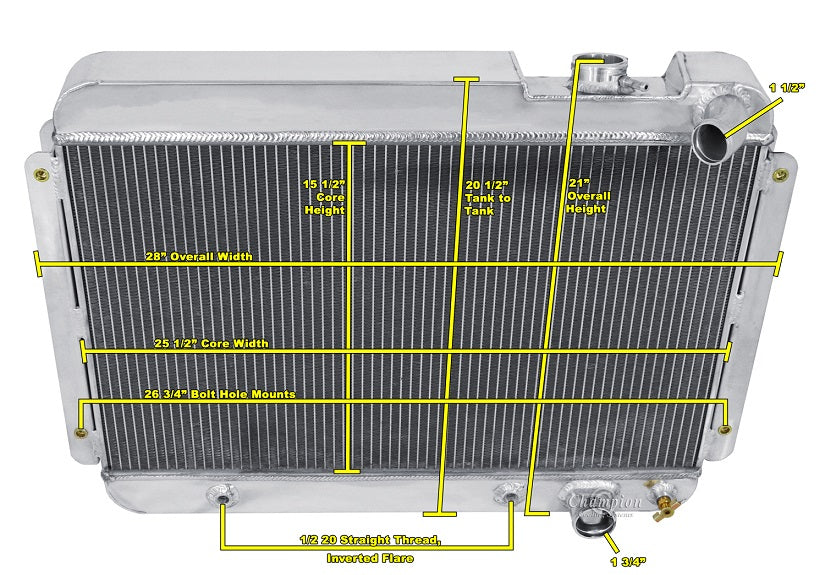

Radiator Dimensions:
Total: 21" tall (21" with cap) x 28" (with brackets)
Core: 15.5" tall x 25.5" wide x 2.25" thick
Inlet: 1.5" passenger side (Curved Inward)
Outlet: 1.75" passenger side
Tanks: 2.63" thick
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/2-20 Straight Thread, Inverted Flare)

When using electric fans:
One 16" or two 12" Electric fans recommended for this core size (sold separately)
