CC6461 3 Row

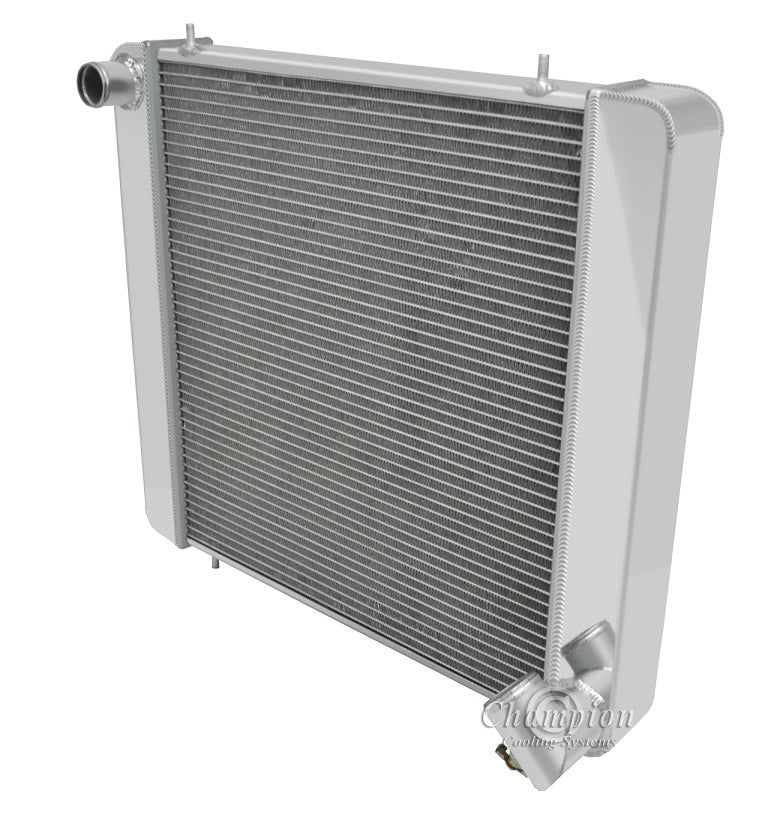

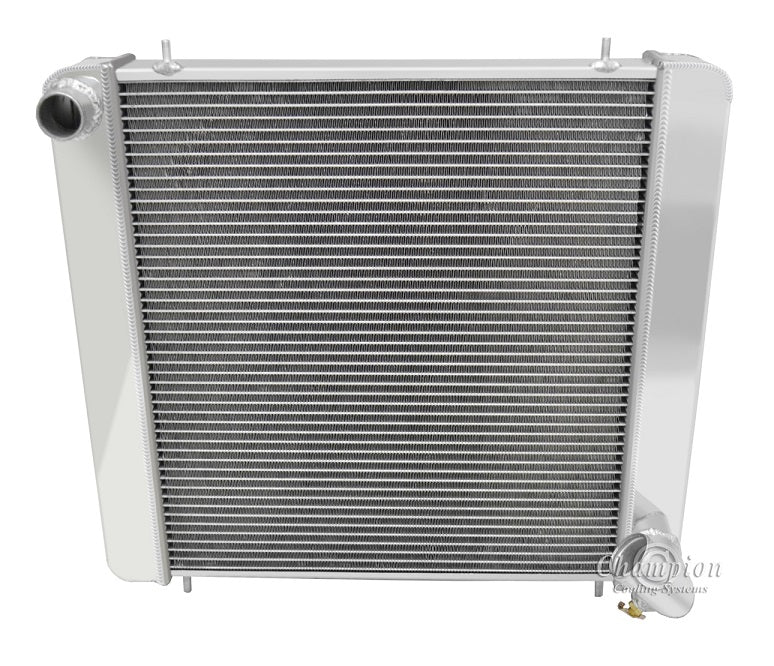

Champion All Aluminum Radiator
3-Row Core | Cools up to 500hp

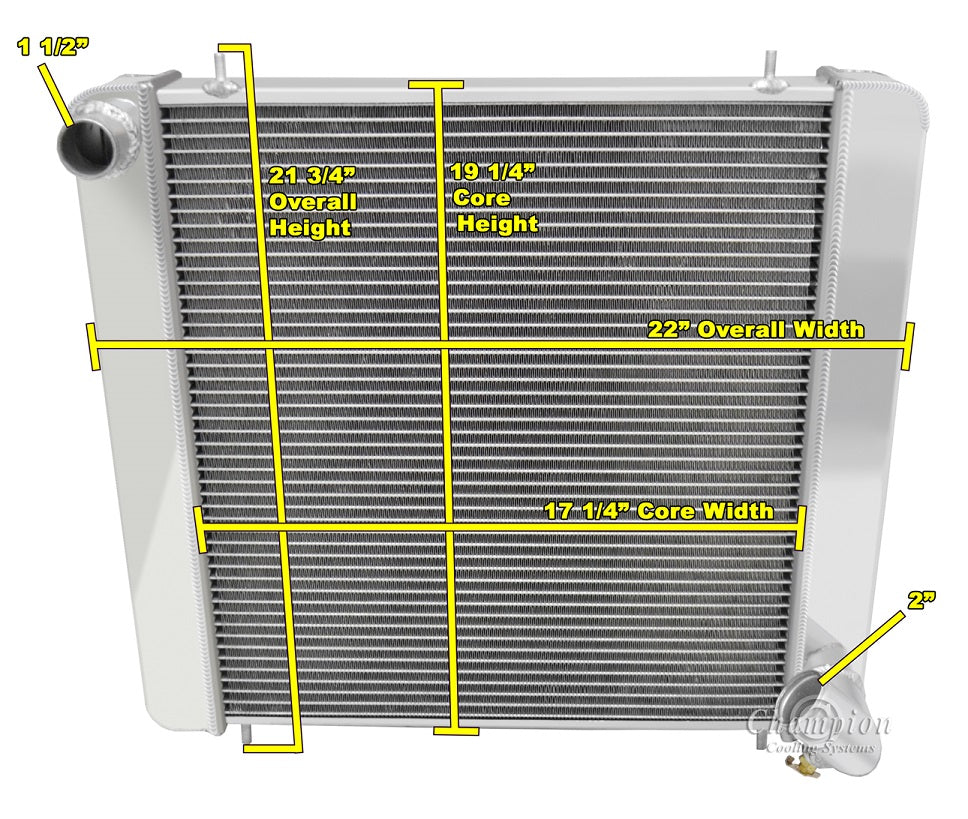

Radiator Dimensions:
Total: 21.75" tall x 22" wide (with brackets)
Core: 19.25" tall x 17.25" wide x 2.25" thick
Inlet: 1.5" passenger side
Outlet: 2" passenger side
Tanks: 2.5" thick
Tubes: 0.75" thick

Bracket Mounted

Transmission Cooler NOT Included

When using electric fans:
One 16" Electric fan recommended for this core size (sold separately)
