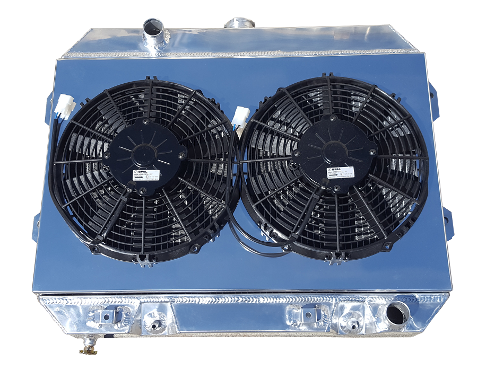

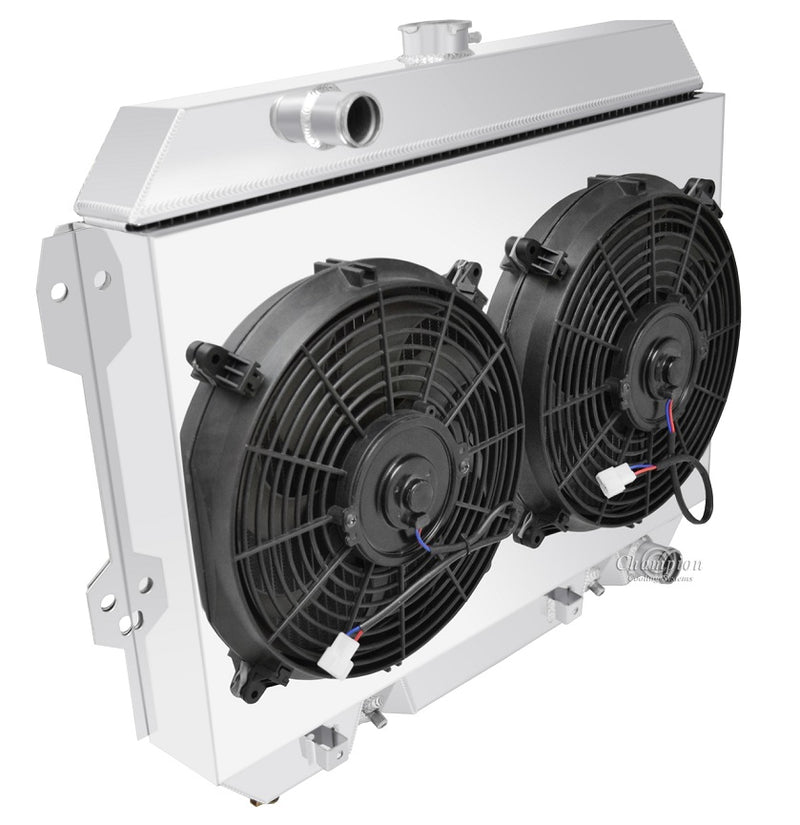

CC634-634FS11SP 3 Row

All Aluminum Champion Radiator Plus
Ledfoot Racing Shroud and 2-11" SPAL Medium Profile fans
3-Row Core | Cools up to 650hp

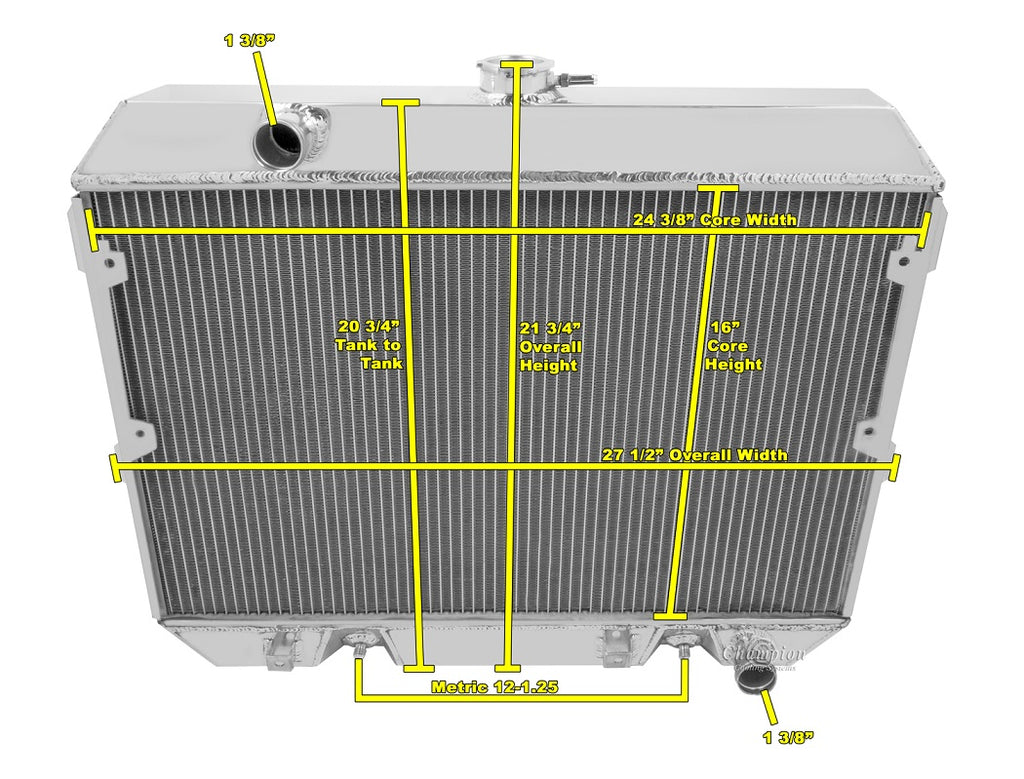

Radiator Dimensions:
Total: 22.63" (with cap) x 27.5" (including brackets)
Core: 16" tall x 24.25" wide x 2.25" thick
Inlet: 1.38" drivers side
Outlet: 1.38" passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick
Total Thickness: 6.5 to back of fans, 5.75" at center
Fan Thickness: 2.05

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler Included (Metric 12-1.25)
