CC63 3 Row

Champion All Aluminum Radiator
3-Row Core | Cools up to 550hp
Confirm Outlet Positions

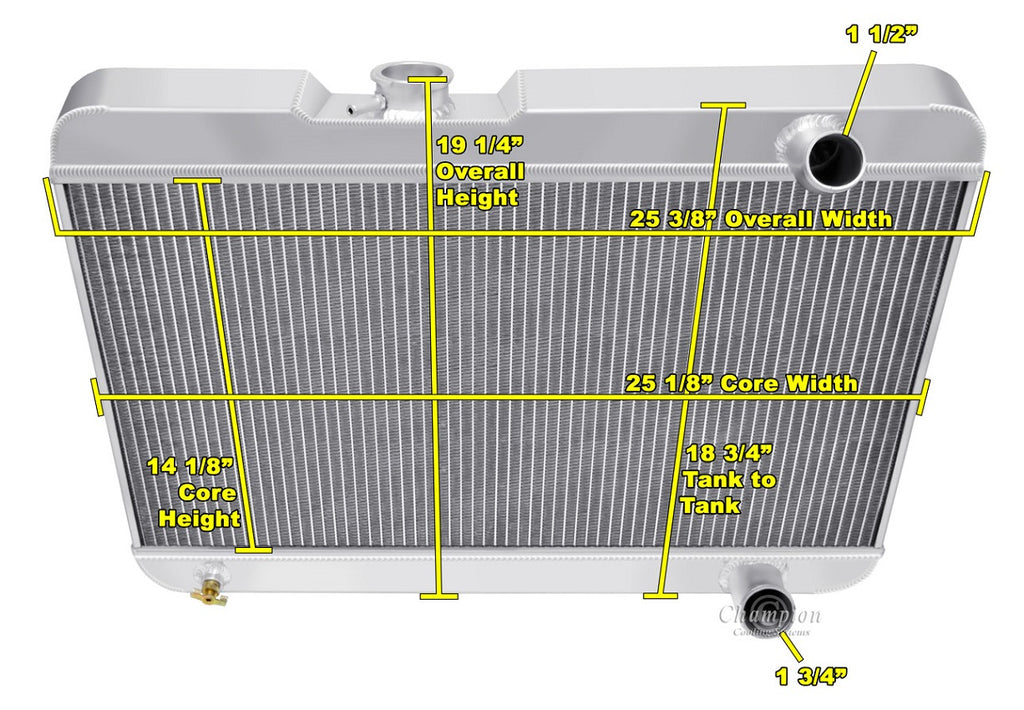

Radiator Dimensions:
Total: 19.25" (with cap) x 25.38" wide
Core: 14.13" tall x 25.13" wide x 2" thick
Inlet: 1.5" passenger side
Outlet: 1.75" passenger side
Tanks: 2.38" thick
Tubes: 0.63" thick

Saddle Mounted

16 lb. Radiator Cap Included
Transmission Cooler Included (1/2"-20 Straight Thread)

When using electric fans:
Two 12" Electric fans recommended for this core size (sold separately)
