Description
Champion All Aluminum Radiator

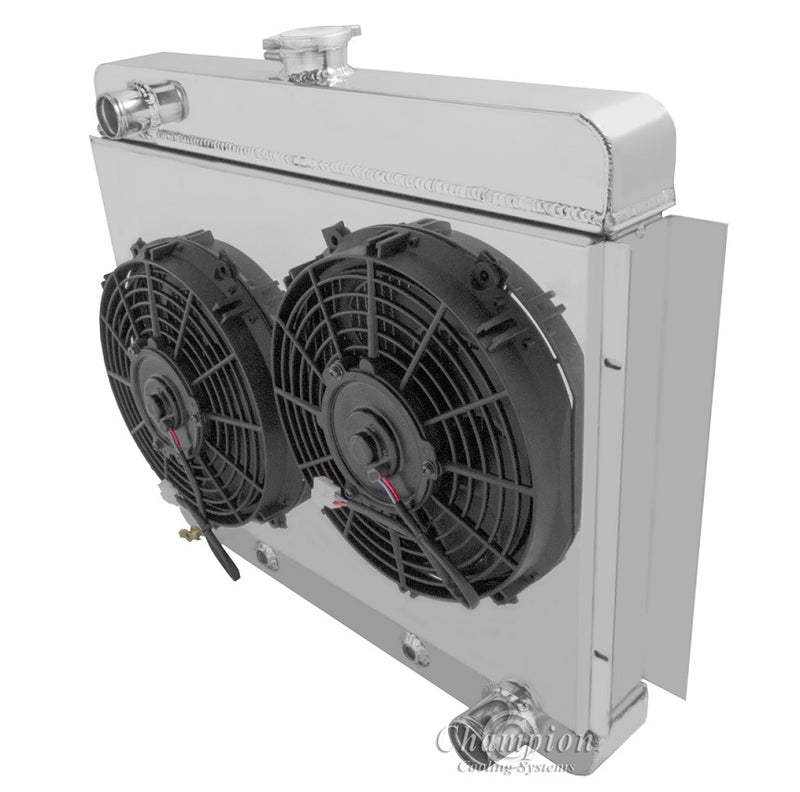

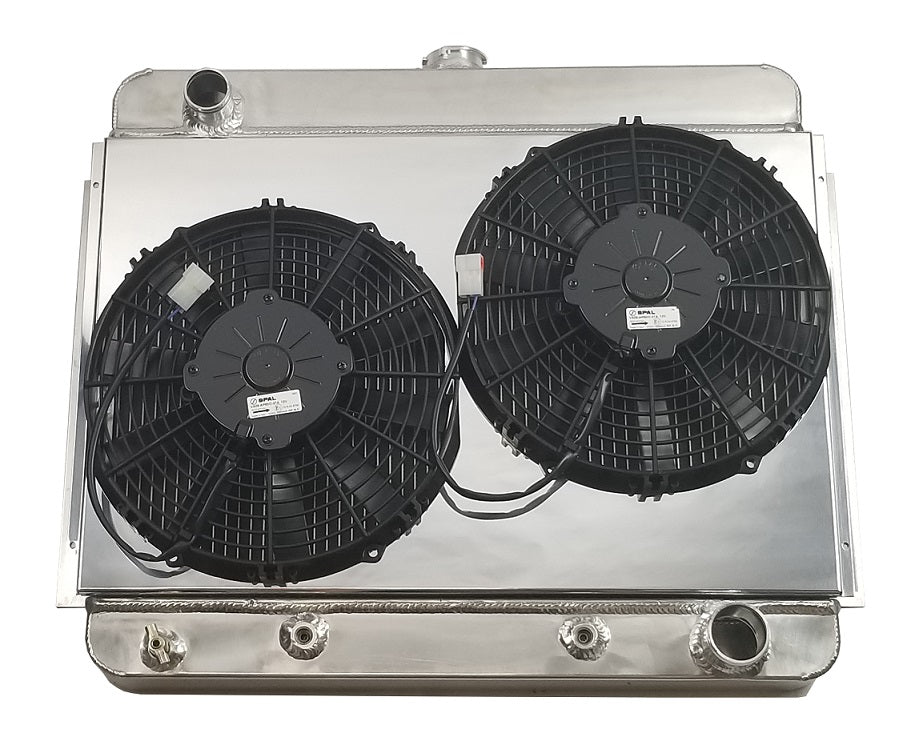

Plus Ledfoot Racing Aluminum Shroud & 2-11" SPAL-1500 Fans
Verify clearance for electric fan
3-Row Core | Cools up to 550hp

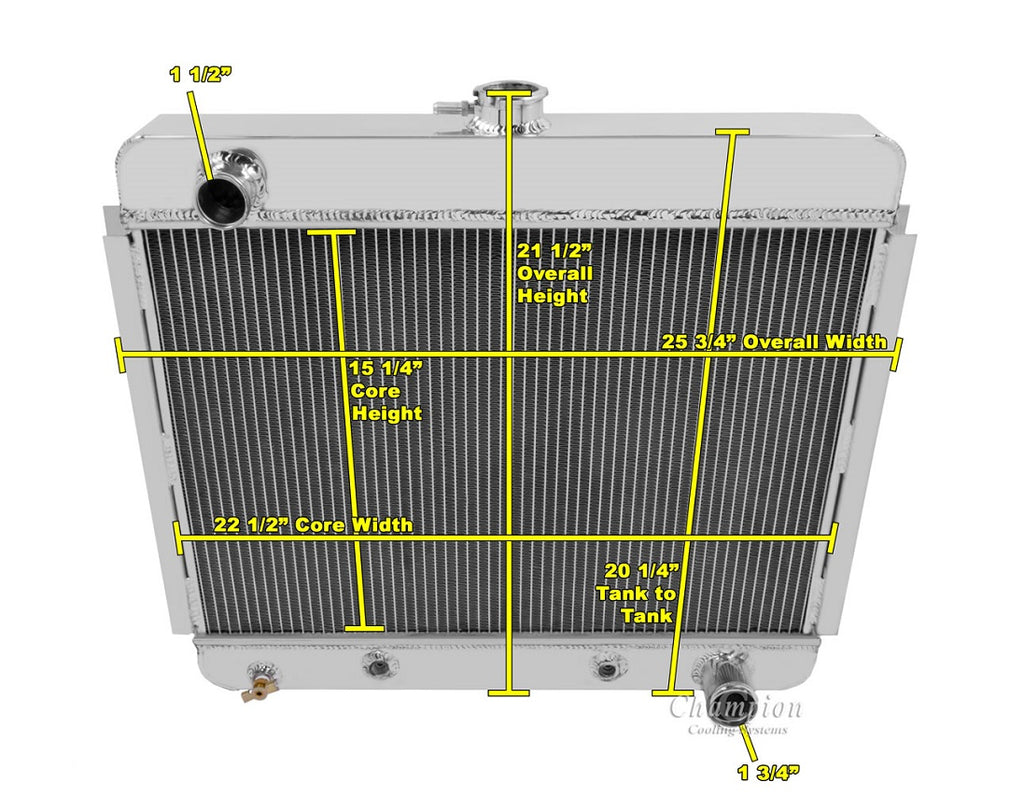

CC6267 Radiator Dimensions:
Total: 21.25" tall (with cap) x 25.5" wide (including brackets)
Core: 15.25" tall x 22" wide x 2" thick
Inlet: : 1.5" Driver side
Outlet: 1.75” Passenger side
Tanks: 2.75" thick
Tubes: 0.63" thick
Total thickness: 5.75" to back of motors,
4.75" between fan motors
Bracket Mounted
13 lb. Radiator Cap included
Transmission Cooler Included (1/2"- 20 straight thread)
Plus Ledfoot Racing Aluminum Shroud & 2-11" SPAL-1500 Fans
Verify clearance for electric fan
3-Row Core | Cools up to 550hp
CC6267 Radiator Dimensions:
Total: 21.25" tall (with cap) x 25.5" wide (including brackets)
Core: 15.25" tall x 22" wide x 2" thick
Inlet: : 1.5" Driver side
Outlet: 1.75” Passenger side
Tanks: 2.75" thick
Tubes: 0.63" thick
Total thickness: 5.75" to back of motors,
4.75" between fan motors
Bracket Mounted
13 lb. Radiator Cap included
Transmission Cooler Included (1/2"- 20 straight thread)
LIFETIME WARRANTY
PRICE MATCH GUARANTEE
