CC6265 3 Row

(Originally for the 327 engine with a L79 Cam)

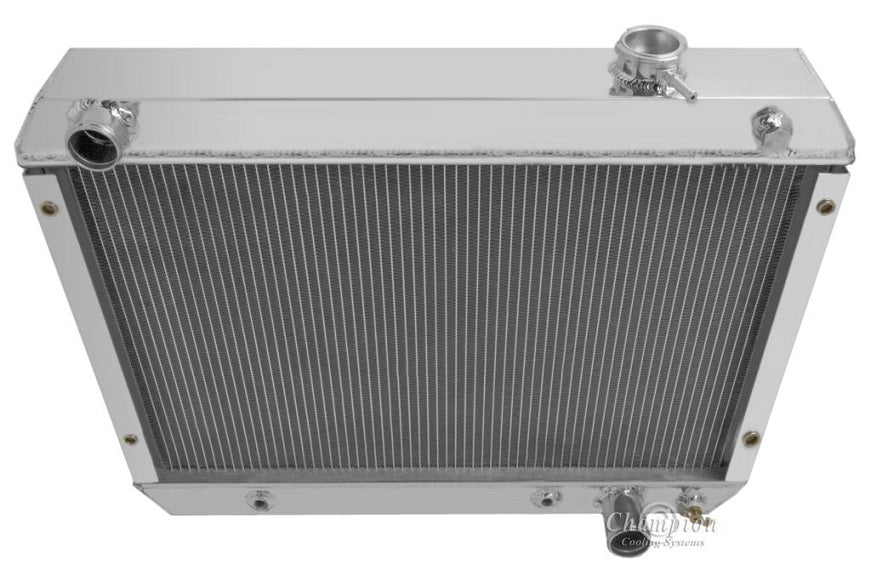

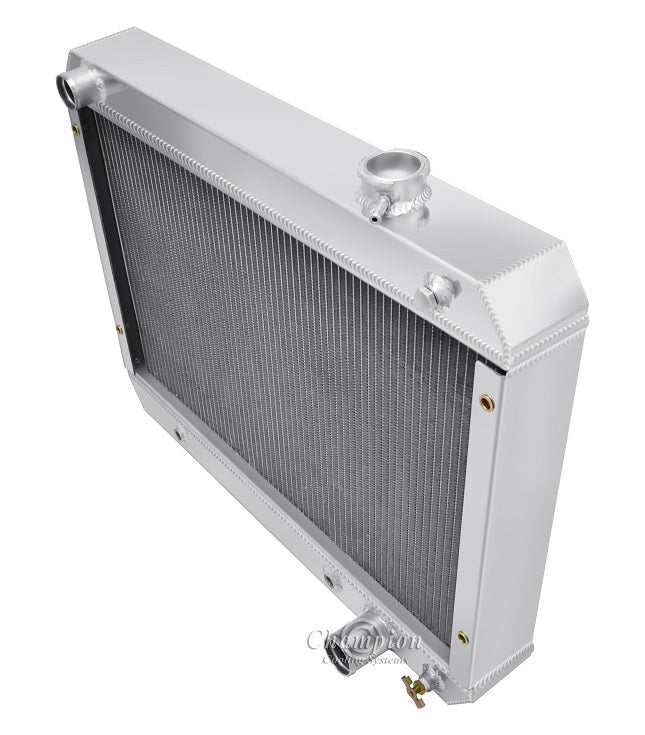

Champion All Aluminum Radiator
3-Row Core | Cools up to 600hp
Works great with all V8 applications

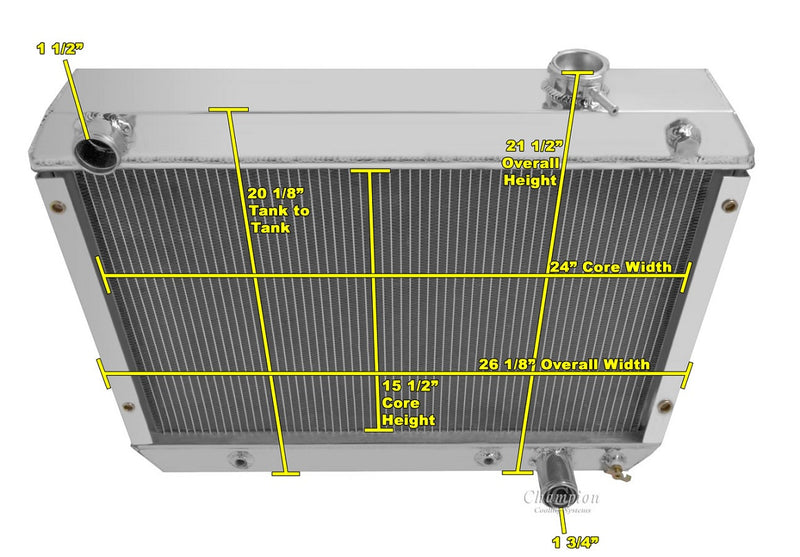

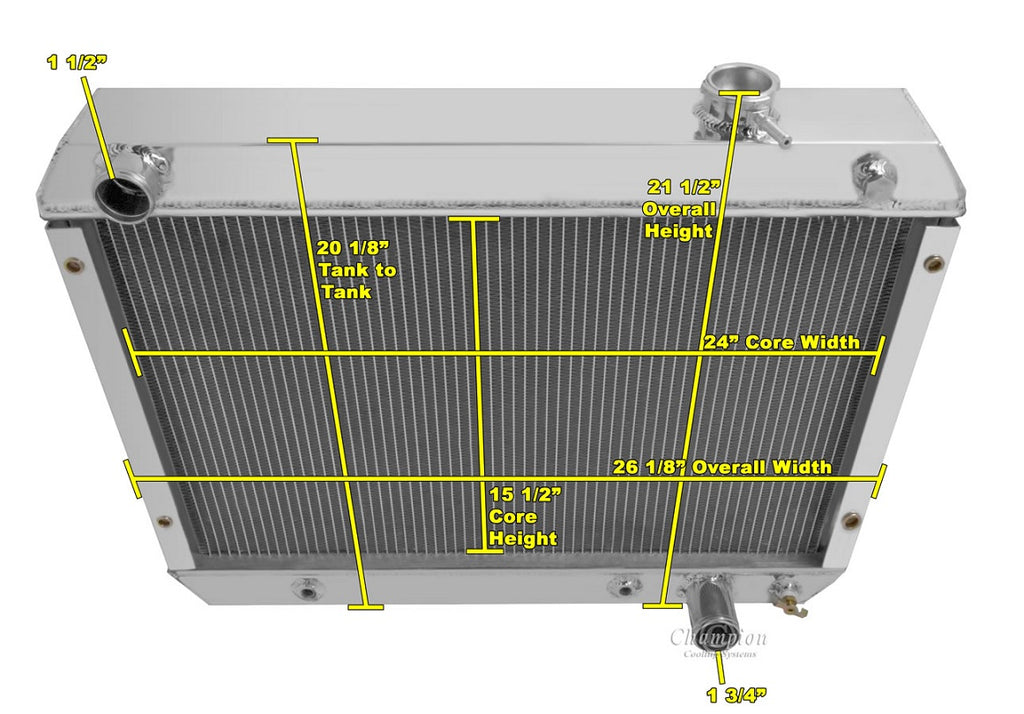

Radiator Dimensions:
Total: 26.13" wide (with brackets) x 21.5" tall (with cap)
Core: 24" wide x 15.5" tall x x 2" thick
Inlet: 1.5" driver side
Outlet: 1.75” passenger side
Tanks: 3.25" thick
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/2"- 20 straight thread)

When using Electric Fans:
We recommend two 12" fans for this core size (sold separately)
