CC6168-6 3 Row L6's

Champion All Aluminum Radiator
3-Row Core | Cools up to 600hp
Set up for original L6 engines

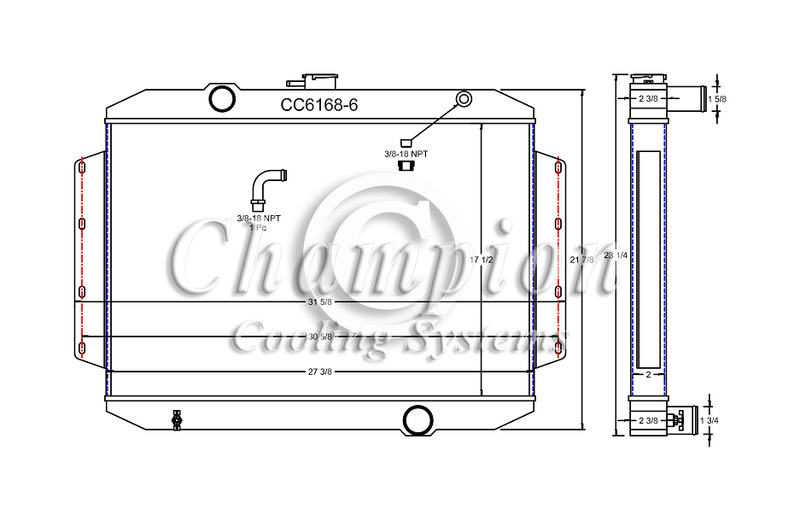

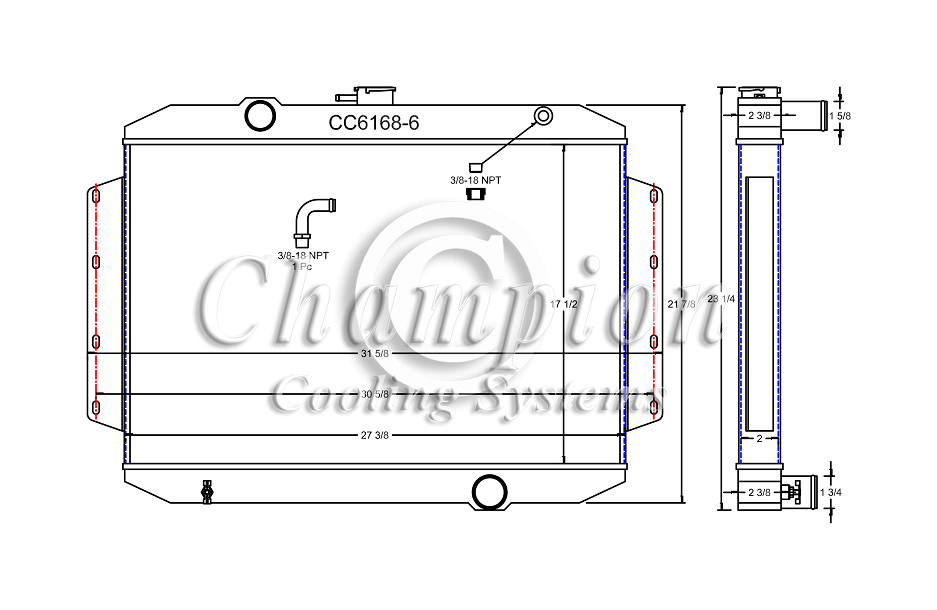

Radiator Dimensions:
Total: 21.88" tall (23.25" with cap) x 31.63" wide (with brackets)
Core: 17.5" tall x 27.38" wide x 2" thick
Inlet: 1.63" driver
Outlet: 1.75" passenger
Tanks: 2.38" thick
Tubes: 0.63" thick

Saddle or Bracket Mounted

13lb. Radiator Cap included
Transmission Cooler NOT included

When using electric fans (sold separately):
One 16" or two 12" Electric fans recommended for this core size
