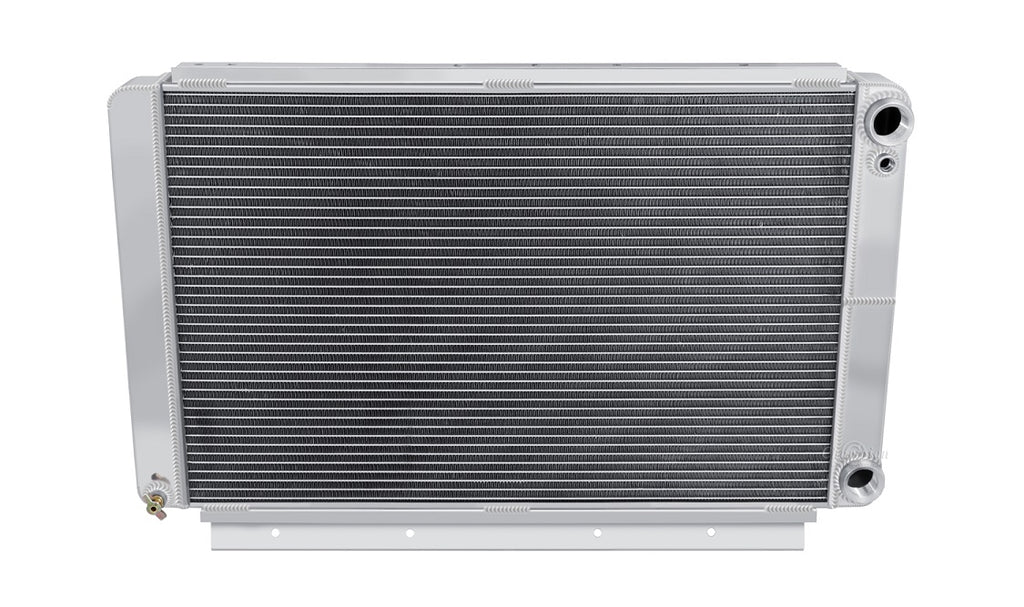

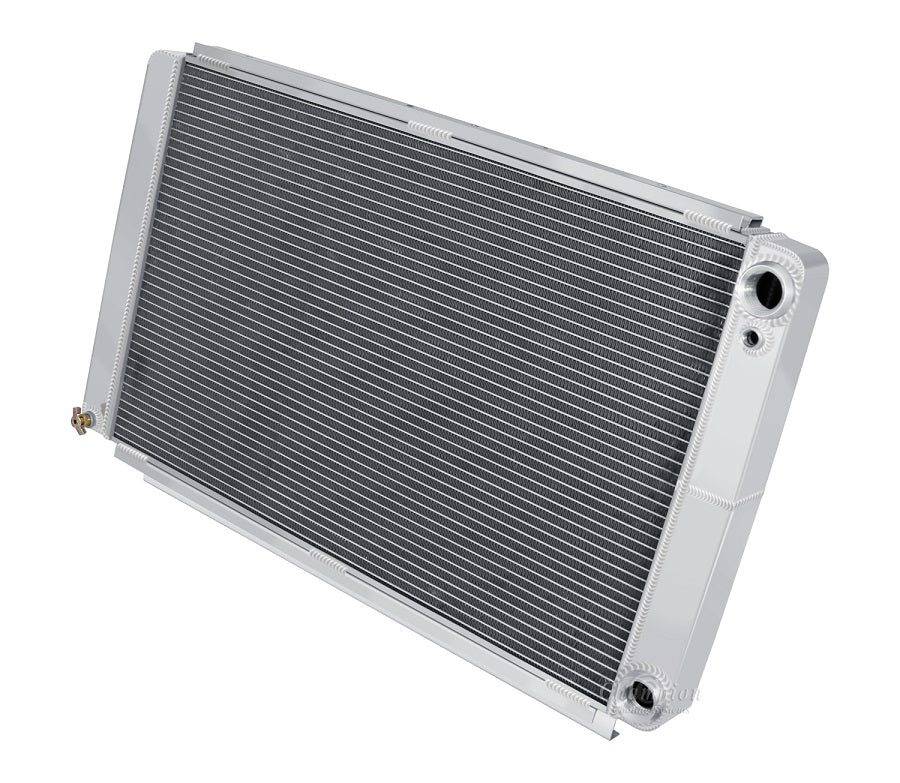

CC6165DP 3 Row Dual Pass

All Aluminum Champion Radiator
You MUST Choose your Outlet sizes -->
Call for AN16 or AN20 Outlets
3-Row Core Dual Pass | Cools up to 700hp

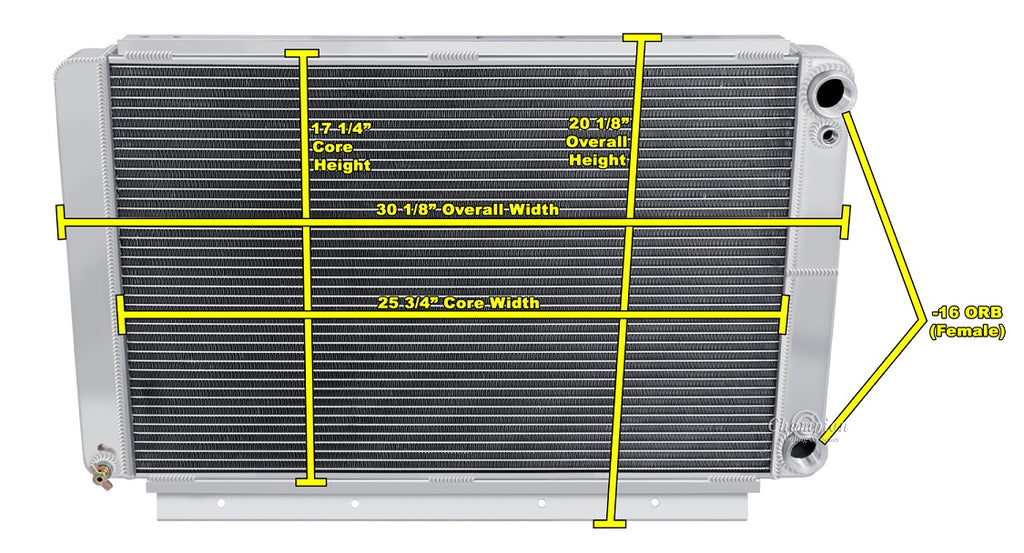

Radiator Dimensions:
Total: 20.13" tall x 30.13" wide
Core: 17.25" tall x 25.75” wide x 2.25" thick
Inlet: 1.75" passenger side
Outlet: 1.75" driver side
Tanks: 2.5" thick
Tubes: 0.63" thick

Saddle Mounted

Transmission Cooler: NOT INCLUDED
Aluminum Shroud is also Available (sold separately)

When using electric fans:
Two 12" SPAL Electric fans recommended for this core size (sold separately)
