CC6163 3 Row

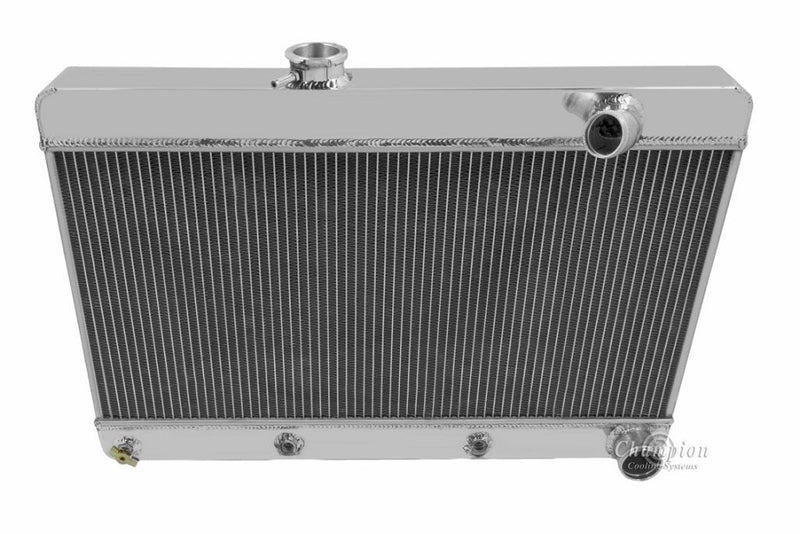

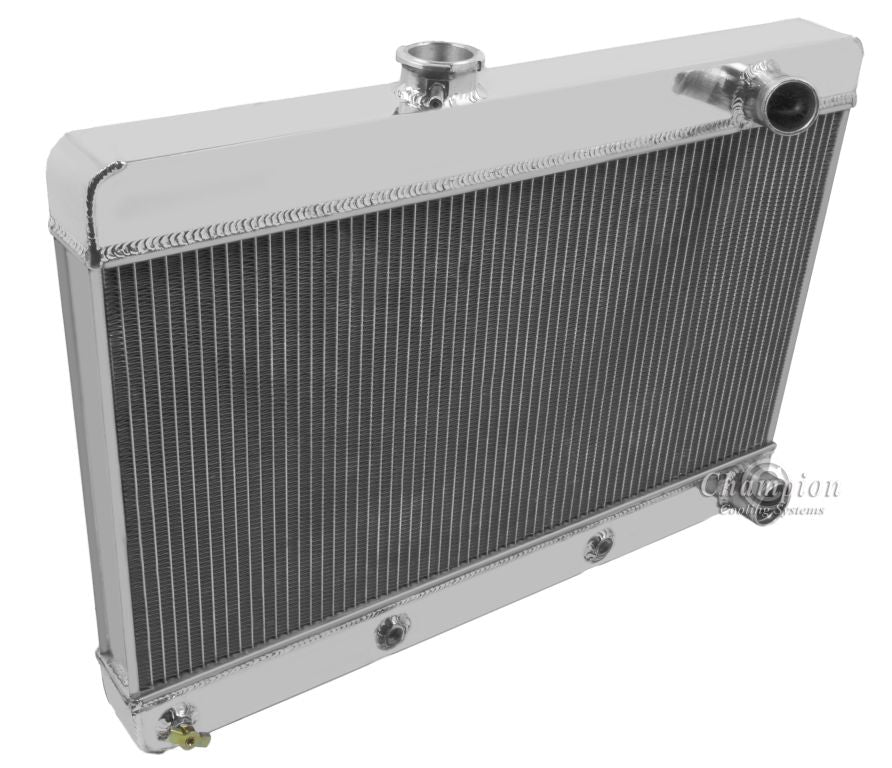

Champion All Aluminum Radiator
3-Row Core | Cools up to 400hp
Please confirm your overall height

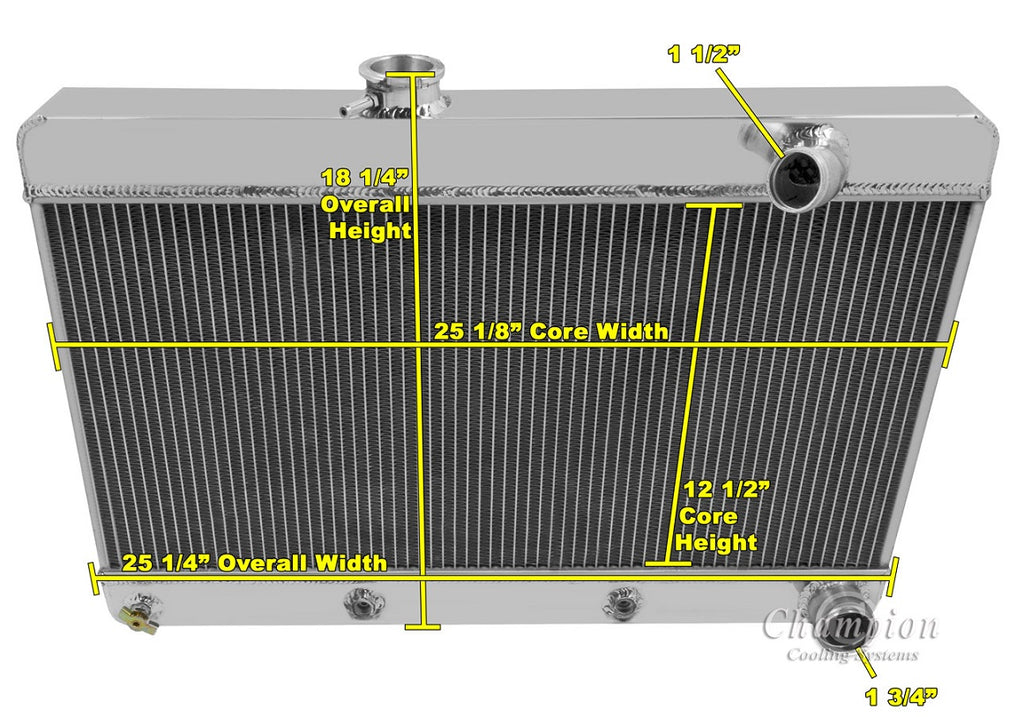

Radiator Dimensions:
Total: 18.25" tall (with cap) x 25.25" wide
Core: 12.5" tall x 25" wide x 2" thick
Inlet: 1.5" passenger side w/ bend towards driver side
Outlet: 1.75" passenger side
Tanks: 2.63" thick
Tubes: 0.63" thick

Saddle Mounted

13 lb. Radiator Cap included
Transmission Cooler included

When using electric fans:
Two 12" Electric fans recommended for this core size (sold separately)
